HEADLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

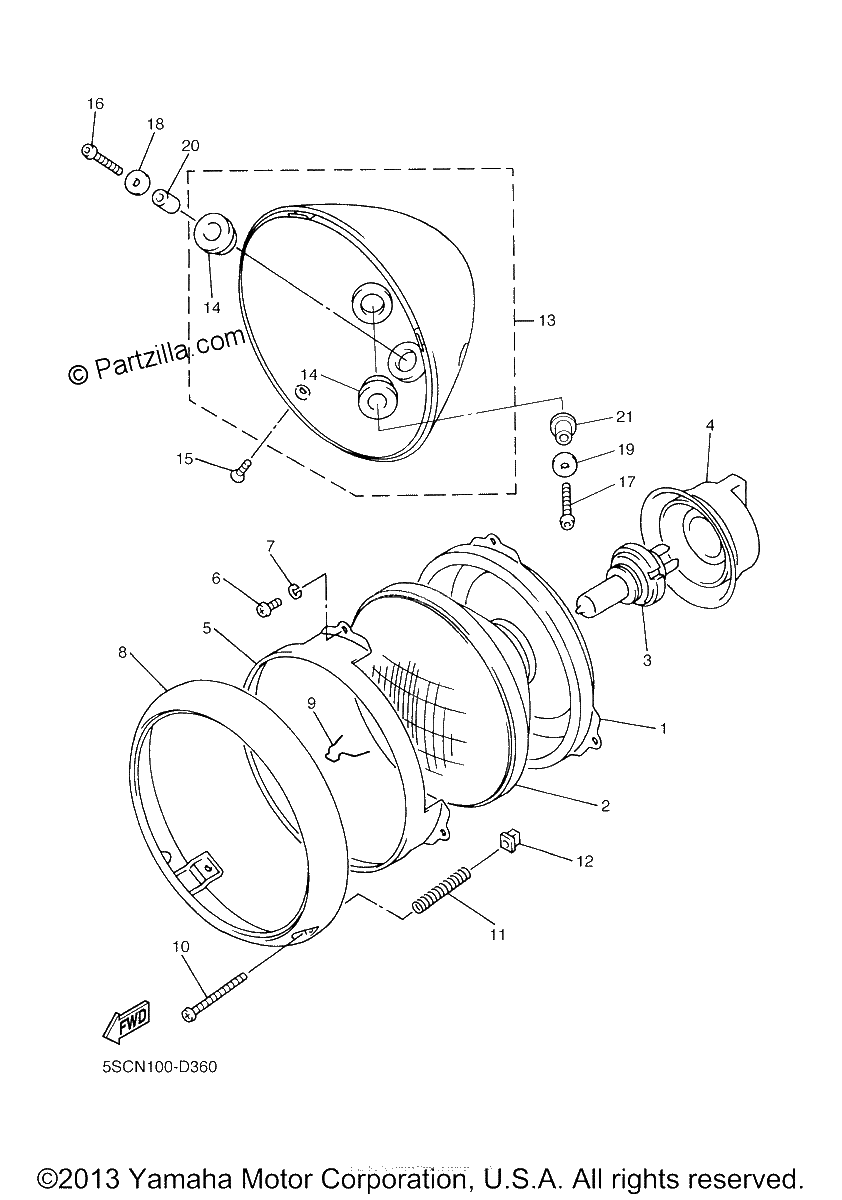

Diagrama de HEADLIGHT

Repuestos

#1
4NK-84394-00-00
RING, MOUNTING
$83.51¢41 757
1
#2
4NK-84320-00-00
LENS ASSY
$234.62¢117 312
1
#3
5V2-84314-00-XX
BULB (12V 60/55W HALOGEN) | (H4) HALOGEN
$82.94¢41 469
1
#4
3SX-84397-00-00
COVER, SOCKET
$29.08¢14 542
1
#5
2F9-84395-00-00
RING, RETAINING
$55.67¢27 836
1
#6
98580-04008-00
SCREW, PAN HEAD
$4.98¢2 490
1
#7
92902-04100-00
WASHER, SPRING
$0.68¢339
1
#8
4NK-84315-00-00
RIM, HEADLIGHT
$170.71¢85 353
1
#9
290-84124-21-00
SPRING, SET
$7.38¢3 691
1
#10
90157-04001-00
SCREW, ADJUSTING
$5.86¢2 932
1
#11
341-84332-60-00
SPRING, SCREW
$9.35¢4 675
1
#12
198-84334-60-00
NUT, ADJUSTING
$7.04¢3 519
1
#13
5BN-84330-00-00
BODY ASSY
$229.74¢114 868
1
#14
42X-84366-00-00
DAMPER, HEADLIGHT 1
$21.14¢10 568
1
#15
98704-05012-00
SCREW, FLAT HEAD
$3.10¢1 553
1
#16
92017-06025-00
BOLT, BUTTON HEAD
$7.30¢3 651
1
#17
92017-06030-00
BOLT, BUTTON HEAD
$7.30¢3 651
1
#18
90201-06086-00
WASHER, PLATE
$6.43¢3 214
1
#19
90201-06727-00
WASHER, PLATE
$7.30¢3 651
1
#20
90387-0610J-00
COLLAR
$7.45¢3 726
1
#21
90387-06093-00
COLLAR
$6.43¢3 214
1
