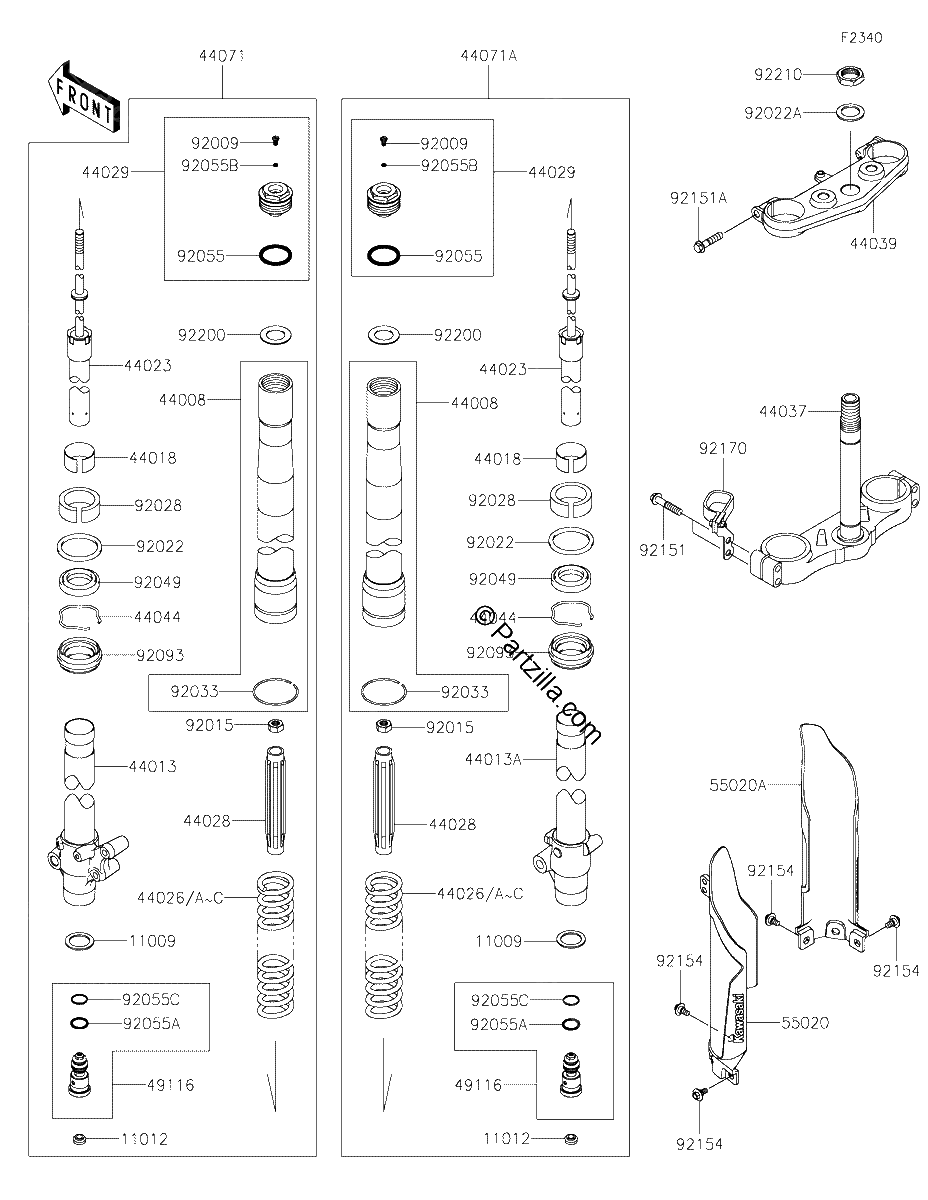

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#11009
GASKET,FORK CYLINDER BOLT
$5.55¢2 777
#11012
CAP
$5.78¢2 892
#44008
PIPE FORK OUTER,K GOLD
$527.34¢263 672
#44013
PIPE-FORK INNER,LH
$302.82¢151 409
#44013A
PIPE-FORK INNER,RH
$302.82¢151 409
#44018
PISTON-FORK
$21.57¢10 787
#44023
CYLINDER SET FORK
$414.34¢207 172
#44026
SPRING-FRONT FORK,K=2.65N/MM
$72.43¢36 213
#44026
SPRING-FRONT FORK,K=2.75N/MM
$66.48¢33 241
#44026
SPRING-FRONT FORK,K=2.84N/MM
$66.48¢33 241
#44026
SPRING-FRONT FORK,K=2.94N/MM
$66.48¢33 241
#44028
GUIDE-FORK SPRING
$45.44¢22 718
#44029
SEAT FORK SPRING,G B GREEN
$76.41¢38 203
#44037
HOLDER FORK UNDER,F BLACK
$361.26¢180 630
#44039
HOLDER FORK UPPER,F BLACK
$161.36¢80 678
#44044
RING-SNAP,FORK OIL
$13.59¢6 797
#44071
DAMPER Assembly,FORK,Left Hand,K GOLD
$1032.68¢516 338
#44071A
DAMPER Assembly,FORK,Right Hand,K GOLD
$1032.68¢516 338
#49116
VALVE Assembly,BASE
$162.44¢81 219
#55020A
GUARD,FORK,Right Hand,BLACK
$32.08¢16 042
#55020B
GUARD,FORK,Right Hand,BLACK
$32.08¢16 042
#55020B
GUARD,FORK,RH,L.GREEN
$32.08¢16 042
#55020
GUARD,FORK,Left Hand,BLACK
$32.08¢16 042
#55020
GUARD,FORK,LH,L.GREEN
$32.08¢16 042
#92009
SCREW
$6.60¢3 301
#92015
NUT
$19.75¢9 873
#92022
WASHER,FRONT FORK
$7.81¢3 904
#92022A
WASHER,STEERING STEM
$6.82¢3 410
#92028
BUSHING
$16.47¢8 234
#92033
RING-SNAP
$7.98¢3 991
#92049
SEAL OIL,FORK OUTER TUBE
$19.75¢9 873
#92055
RING-O
$5.60¢2 800
#92055A
RING O
$1.30¢650
#92055B
RING O,2.8X6.6X1.9
$3.97¢1 984
#92055C
RING O,FORK VALVE
$7.92¢3 962
#92093
SEAL,FORK OUTER TUBE
$23.09¢11 546
#92151
BOLT-FLANGED-SMALL,8X40
$5.59¢2 794
#92151A
BOLT-FLANGED-SMALL,8X35
$4.35¢2 173
#92154
BOLT,FLANGED,6X9
$3.40¢1 702
#92170
CLAMP
$8.66¢4 330
#92200
WASHER
$5.47¢2 737
#92210
NUT,STEERING STEM,22MM
$15.18¢7 590
