FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

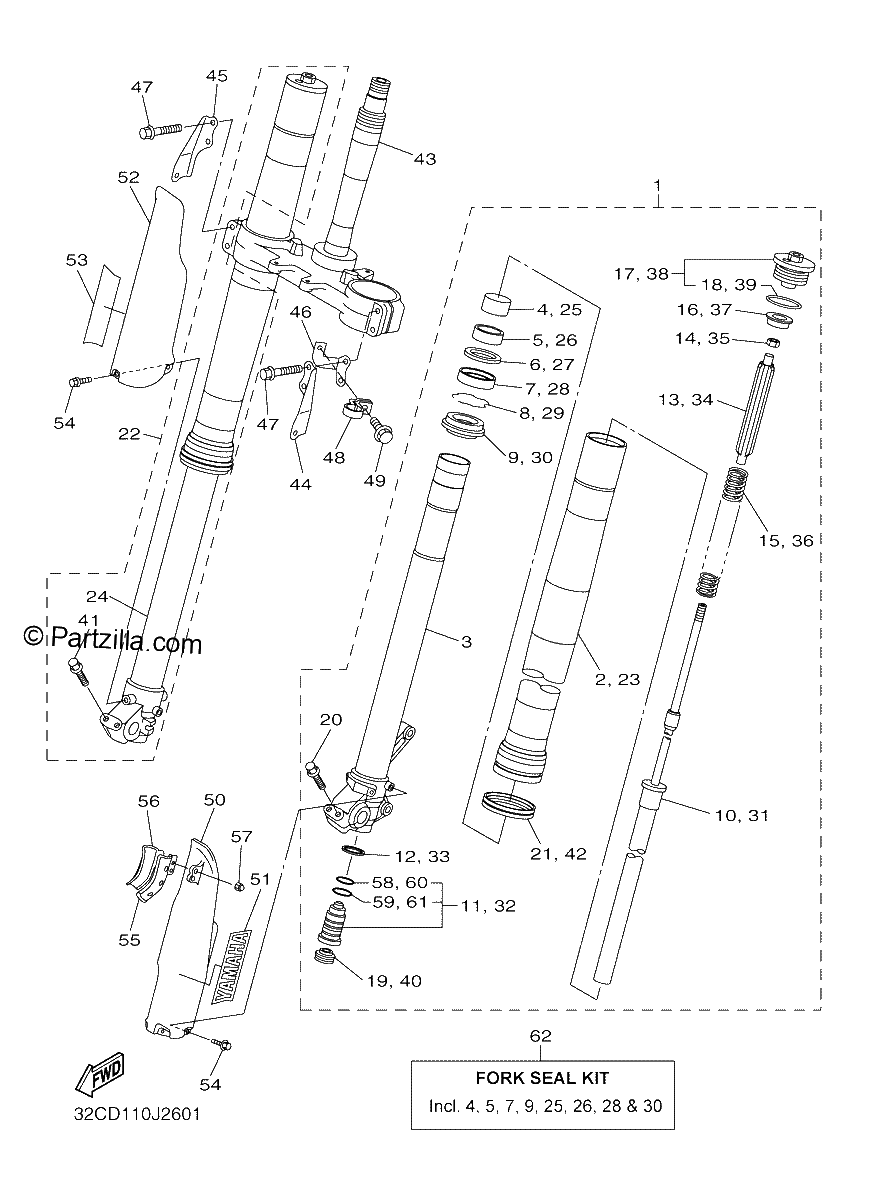

Diagrama de FRONT FORK

Repuestos

#1
32D-23102-50-00
FRONT FORK ASSY (L.H)
$1537.54¢768 769
1
#2
3D7-23106-50-00
OUTER TUBE COMP.
$852.14¢426 069
1
#3
3D7-23110-00-00
INNER TUBE COMP. 1
$453.03¢226 515
1
#4
5ET-23171-L0-00
PISTON, FRONT FORK
$21.68¢10 839
1
#5
5ET-23125-L0-00
METAL, SLIDE 1
$32.90¢16 451
1
#6
5UN-23146-L0-00
WASHER, OIL SEAL
$14.35¢7 176
1
#7
5UN-23145-L0-00
OIL SEAL
$21.34¢10 672
1
#8
4SS-23153-L0-00
RING, SNAP
$6.69¢3 347
1
#9
5HD-23144-L0-00
SEAL, DUST
$28.19¢14 093
1
#10
32D-23170-00-00
CYLINDER COMP., FRONT FORK
$519.79¢259 894
1
#11
32D-2316A-00-00
VALVE COMP.
$303.00¢151 501
1
#12
2HH-23158-L0-00
GASKET
$10.43¢5 215
1
#13
3D7-23117-00-00
GUIDE, SPRING
$38.58¢19 291
1
#14
3XJ-23357-L0-00
NUT
$0.83¢414
1
#15
32D-23141-00-00
SPRING, FRONT FORK
$59.71¢29 854
1
#16
4SS-23143-L0-00
SEAT, SPRING LOWER
$13.20¢6 601
1
#17
3D7-23111-00-00
BOLT, CAP
$253.71¢126 857
1
#18
3D7-23147-00-00
O-RING
$5.85¢2 927
1
#19
3JD-2312G-L0-00
PLUG
$6.51¢3 254
1
#20
95022-08040-00
BOLT, FLANGE
$6.75¢3 375
1
#21
5XC-2314F-00-00
PROTECTER GUIDE COMP., 1
$45.40¢22 701
1
#22
32D-23103-50-00
FRONT FORK ASSY (R.H)
$1537.54¢768 769
1
#23
3D7-23106-50-00
OUTER TUBE COMP.
$852.14¢426 069
1
#24
3D7-23120-00-00
INNER TUBE COMP. 2
$448.97¢224 486
1
#25
5ET-23171-L0-00
PISTON, FRONT FORK
$21.68¢10 839
1
#26
5ET-23125-L0-00
METAL, SLIDE 1
$32.90¢16 451
1
#27
5UN-23146-L0-00
WASHER, OIL SEAL
$14.35¢7 176
1
#28
5UN-23145-L0-00
OIL SEAL
$21.34¢10 672
1
#29
4SS-23153-L0-00
RING, SNAP
$6.69¢3 347
1
#30
5HD-23144-L0-00
SEAL, DUST
$28.19¢14 093
1
#31
32D-23170-00-00
CYLINDER COMP., FRONT FORK
$519.79¢259 894
1
#32
32D-2316A-00-00
VALVE COMP.
$303.00¢151 501
1
#33
2HH-23158-L0-00
GASKET
$10.43¢5 215
1
#34
3D7-23117-00-00
GUIDE, SPRING
$38.58¢19 291
1
#35
3XJ-23357-L0-00
NUT
$0.83¢414
1
#36
32D-23141-00-00
SPRING, FRONT FORK
$59.71¢29 854
1
#37
4SS-23143-L0-00
SEAT, SPRING LOWER
$13.20¢6 601
1
#38
3D7-23111-00-00
BOLT, CAP
$253.71¢126 857
1
#39
3D7-23147-00-00
O-RING
$5.85¢2 927
1
#40
3JD-2312G-L0-00
PLUG
$6.51¢3 254
1
#41
95022-08040-00
BOLT, FLANGE
$6.75¢3 375
1
#42
5XC-2314F-00-00
PROTECTER GUIDE COMP., 1
$45.40¢22 701
1
#43
3D7-23340-00-00
UNDER BRACKET COMP.
$771.64¢385 819
1
#44
32D-85112-00-00
BRACKET, REFLECTOR 1
$22.01¢11 006
1
#45
32D-85112-10-00
BRACKET, REFLECTOR 1
$22.08¢11 040
1
#46
3D7-2331E-00-00
GUIDE, CABLE
$9.34¢4 669
1
#47
95022-08040-00
BOLT, FLANGE
$6.75¢3 375
1
#48
5VK-23389-00-00
GUIDE, CABLE
$12.29¢6 147
1
#49
90105-05016-00
BOLT, FLANGE
$4.97¢2 484
1
#50
1C3-2315H-10-00
PROTECTOR 1
$18.55¢9 275
1
#51
4XL-2153A-10-00
EMBLEM, YAMAHA
$9.04¢4 520
1
#52
1C3-2315J-10-00
PROTECTOR 2
$18.55¢9 275
1
#53
4XL-2153A-10-00
EMBLEM, YAMAHA
$9.04¢4 520
1
#54
3SP-23356-L0-00
BOLT 2
$5.84¢2 921
1
#55
3D7-23466-00-00
CLAMP
$13.49¢6 745
1
#56
3D7-23467-00-00
CLAMP
$17.42¢8 711
1
#57
90176-06014-00
NUT, CROWN
$6.99¢3 496
1
#58
4DA-23147-L0-00
O-RING
$14.20¢7 101
1
#59
276-23114-00-00
GASKET
$4.25¢2 128
1
#60
4DA-23147-L0-00
O-RING
$14.20¢7 101
1
#61
276-23114-00-00
GASKET
$4.25¢2 128
1
#62
5ET-W003B-00-00
FORK SEAL KIT
$105.79¢52 894
1
