EXHAUST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

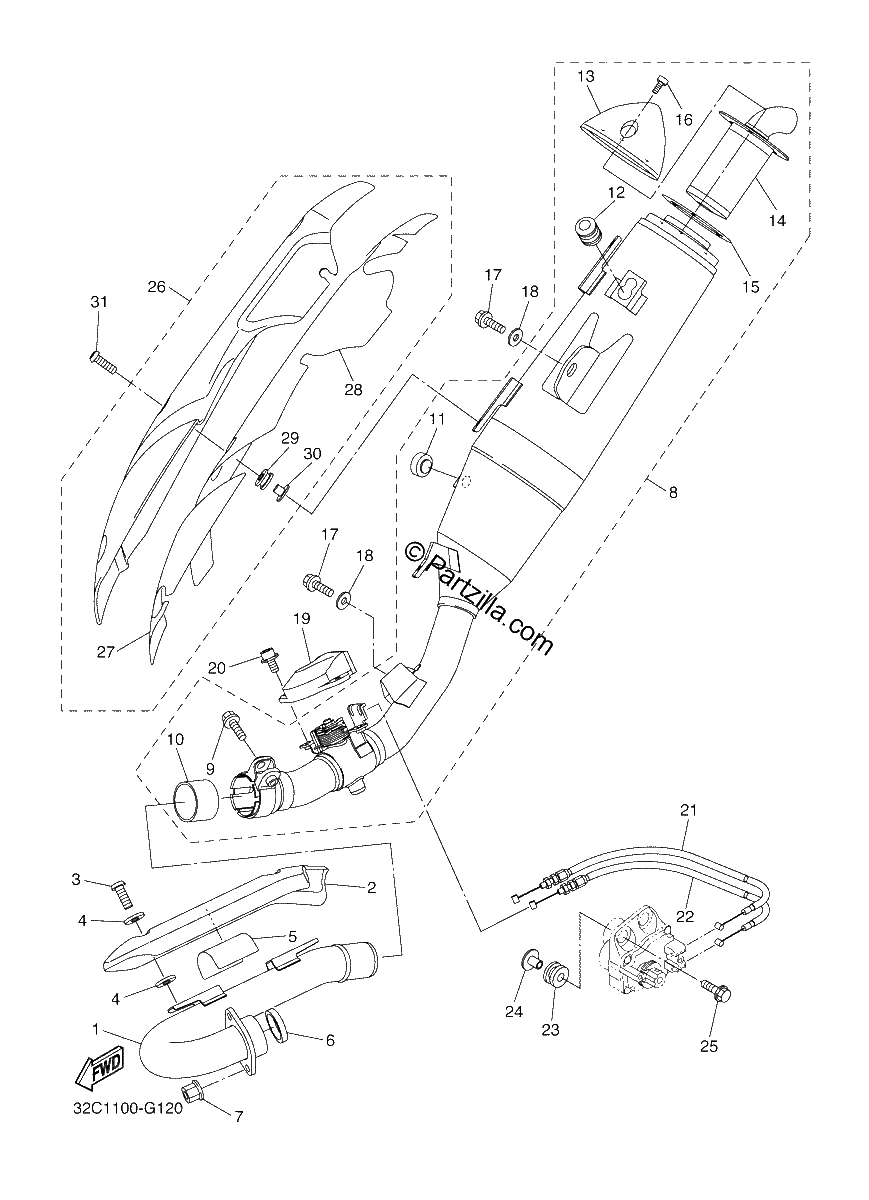

Diagrama de EXHAUST

Repuestos

#1
3D7-14611-00-00
PIPE, EXHAUST 1
$208.12¢104 058
1
#2
3D7-14628-00-00
PROTECTOR, EXHAUST P
$130.09¢65 044
1
#3
98980-06012-00
SCREW, BIND
$6.75¢3 375
1
#4
90201-05015-00
WASHER, PLATE
$6.88¢3 439
1
#5
3D7-1465R-00-00
Plate, Protector
$4.57¢2 283
1
#6
4FM-14613-00-00
GASKET, EXHAUST PIPE
$11.73¢5 865
1
#7
90179-08410-00
NUT
$5.51¢2 754
1
#8
32C-14710-00-00
MUFFLER ASSY 1
$1212.09¢606 044
1
#9
95824-08035-00
BOLT, FLANGE
$7.30¢3 651
1
#10
5PX-14755-00-00
GASKET, SILENCER
$27.22¢13 610
1
#11
22W-24181-00-00
DAMPER, LOCATING 1
$6.30¢3 151
1
#12
3D7-14737-00-00
DAMPER, MUFFLER
$10.37¢5 187
1
#13
32C-14799-00-00
CAP
$135.49¢67 747
1
#14
32C-14780-00-00
SPARK ARRESTER ASSY
$295.69¢147 844
1
#15
32C-14623-00-00
Gasket, Exhaust Pipe
$33.00¢16 502
1
#16
91380-06012-00
BOLT
$2.05¢1 023
1
#17
95024-10016-00
Bolt, Flange
$3.10¢1 553
1
#18
92902-10200-00
WASHER
$3.14¢1 570
1
#19
3D7-14826-00-00
PROTECTOR, EXHAUST
$46.71¢23 356
1
#20
90119-06115-00
BOLT,WITH WASHER
$3.71¢1 857
1
#21
3D7-1133E-01-00
CABLE, PULLEY 1
$56.65¢28 324
1
#22
3D7-1133F-01-00
CABLE, PULLEY 2
$71.10¢35 552
1
#23
90480-14604-00
GROMMET
$8.13¢4 065
1
#24
90387-063E6-00
Collar
$6.75¢3 375
1
#25
95022-06025-00
BOLT, FLANGE
$1.61¢805
1
#26
3D7-14708-00-P1
PROTECTOR ASSY *{MT2}*
$298.09¢149 046
1
#27
3D7-14728-00-00
PROTECTOR, MUFFLER 2
$9.88¢4 939
1
#28
3D7-14738-00-00
PROTECTOR, MUFFLER 3
$33.65¢16 825
1
#29
90480-12581-00
GROMMET
$5.09¢2 547
1
#30
90387-087L0-00
COLLAR
$6.76¢3 381
1
#31
90111-06087-00
BOLT,HEX. SOCKET BUT
$4.35¢2 173
1
