FRAME

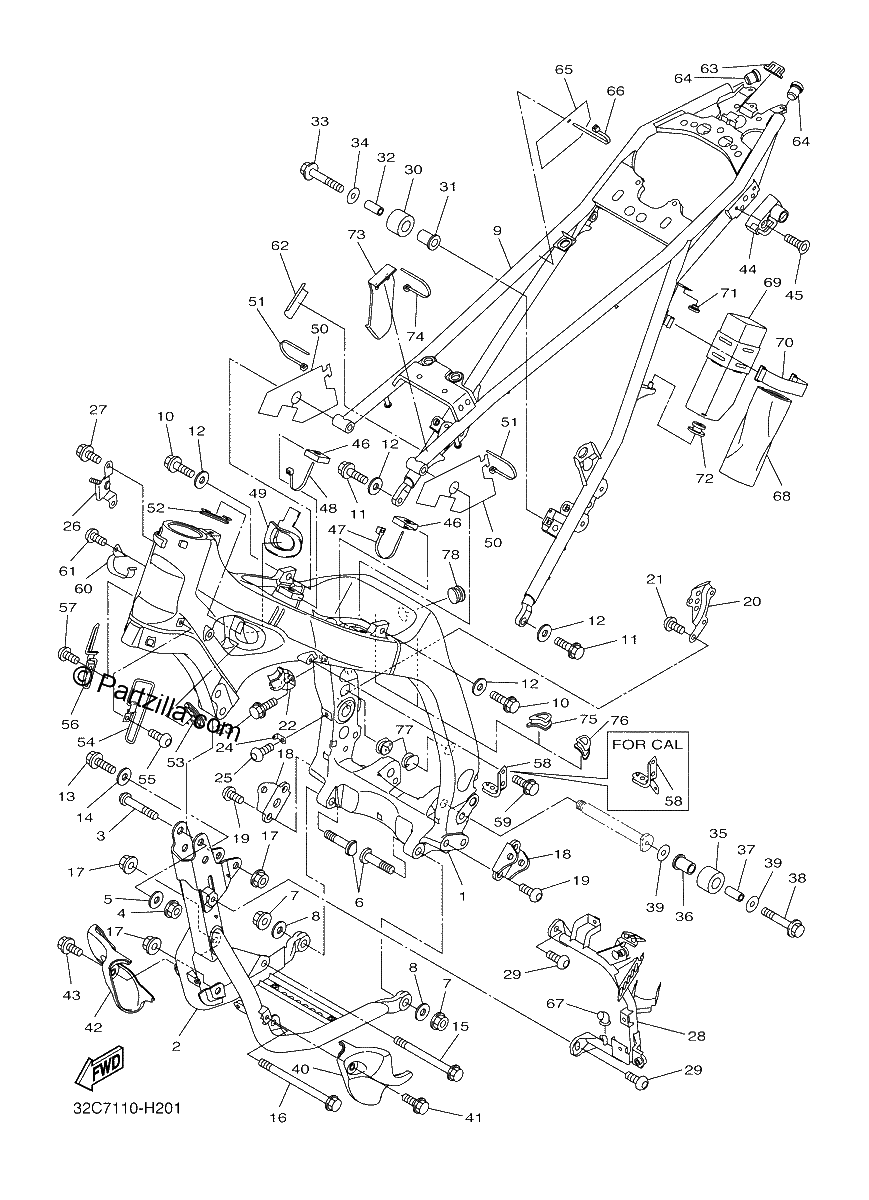

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRAME COMP.
$3026.24¢1 513 119
#2
DOWNTUBE COMP.
$547.52¢273 763
#3
bolt
$9.85¢4 925
#4
NUT,SPEC'L SHAPE (replaces 90179-12248-00)
$6.32¢3 162
#5
WASHER, plate
$7.10¢3 550
#6
BOLT, ENGINE MOUNTIN
$10.95¢5 475
#7
NUT,SPEC'L SHAPE (replaces 90179-12248-00)
$6.32¢3 162
#8
WASHER, plate
$7.10¢3 550
#9
REAR FRAME COMP.
$1098.74¢549 369
#10
BOLT, FLANGE
$5.38¢2 688
#11
Bolt, Flange
$7.43¢3 713
#12
WASHER
$6.67¢3 338
#13
BOLT, WASHER BASED
$11.75¢5 875
#14
WASHER, plate
$2.65¢1 325
#15
Bolt, Flange
$9.56¢4 781
#16
Bolt, Flange
$13.57¢6 788
#17
NUT,SPEC'L SHAPE
$9.22¢4 613
#18
BRACKET, FOOTREST
$19.03¢9 513
#19
SCREW
$6.49¢3 244
#20
BRACKET, MASTER CYLI
$17.90¢8 950
#21
BOLT, BUTTON HEAD
$7.56¢3 781
#22
BRACKET, STOP SWITCH
$26.50¢13 250
#23
BOLT, FLANGE
$6.49¢3 244
#24
Bolt, Flange
$4.40¢2 200
#25
BOLT, BUTTON HEAD
$2.91¢1 456
#26
BRACKET, RADIATOR
$18.31¢9 156
#27
BOLT, FLANGE
$3.57¢1 787
#28
STAY, SIDE COVER 1
$216.57¢108 288
#29
BOLT,HEX. SOCKET BUTTON
$7.94¢3 969
#30
TENSIONER
$26.43¢13 213
#31
Bush
$8.03¢4 013
#32
Collar
$7.52¢3 762
#33
BOLT, FLANGE
$7.34¢3 669
#34
WASHER, PLATE
$5.66¢2 831
#35
TENSIONER
$37.55¢18 775
#36
Bush
$8.03¢4 013
#37
Collar
$7.52¢3 762
#38
BOLT, FLANGE
$7.34¢3 669
#39
WASHER, PLATE
$5.66¢2 831
#40
GUARD, ENGINE 1
$18.30¢9 150
#41
BOLT,WITH WASHER
$6.25¢3 125
#42
GUARD, ENGINE 2
$18.30¢9 150
#43
BOLT,WITH WASHER
$6.25¢3 125
#44
HELMET HANGER ASSY
$87.00¢43 500
#45
SCREW, COUNTERSUNK
$5.80¢2 900
#46
Damper
$4.28¢2 138
#47
BAND
$7.55¢3 775
#48
BAND
$8.35¢4 175
#49
Cover
$18.52¢9 263
#50
COVER 2
$8.15¢4 075
#51
CLAMP
$2.78¢1 388
#52
COVER 3
$8.34¢4 169
#53
COVER 4
$9.04¢4 519
#54
GUIDE, CABLE
$25.33¢12 663
#55
BOLT, BUTTON HEAD
$3.65¢1 825
#56
GUIDE, WIRE
$25.38¢12 688
#57
BOLT, BUTTON HEAD
$3.65¢1 825
#58
HOLDER, CABLE
$14.01¢7 006
#59
BOLT,FLANGE(4MY)
$2.95¢1 475
#60
HOLDER, CLUTCH CABLE
$12.42¢6 212
#61
BOLT, BUTTON HEAD
$3.65¢1 825
#62
LABEL, BRAKE FLUID
$12.35¢6 175
#63
Damper
$7.60¢3 800
#64
PLUG,SPEC'L SHAPE
$11.81¢5 906
#65
COVER, REAR FENDER 1 This item has been discontinued and may not be available. Contact us for more information.
No Disponible
#66
BAND
$8.35¢4 175
#67
GROMMET This item has been discontinued and may not be available. Contact us for more information.
$9.56¢4 781
#68
Tool Kit
$70.92¢35 463
#69
TOOL BOX COMP.
$28.90¢14 450
#70
BAND, BATTERY
$19.11¢9 556
#71
PLUG,SPEC'L SHAPE
$6.91¢3 456
#72
Grommet
$8.09¢4 044
#73
Cover
$9.74¢4 869
#74
BAND
$8.35¢4 175
#75
COVER 5
$9.49¢4 744
#76
COVER 6
$9.53¢4 763
#77
COVER 8
$5.10¢2 550
#78
PLUG
$7.46¢3 731
