TAILLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

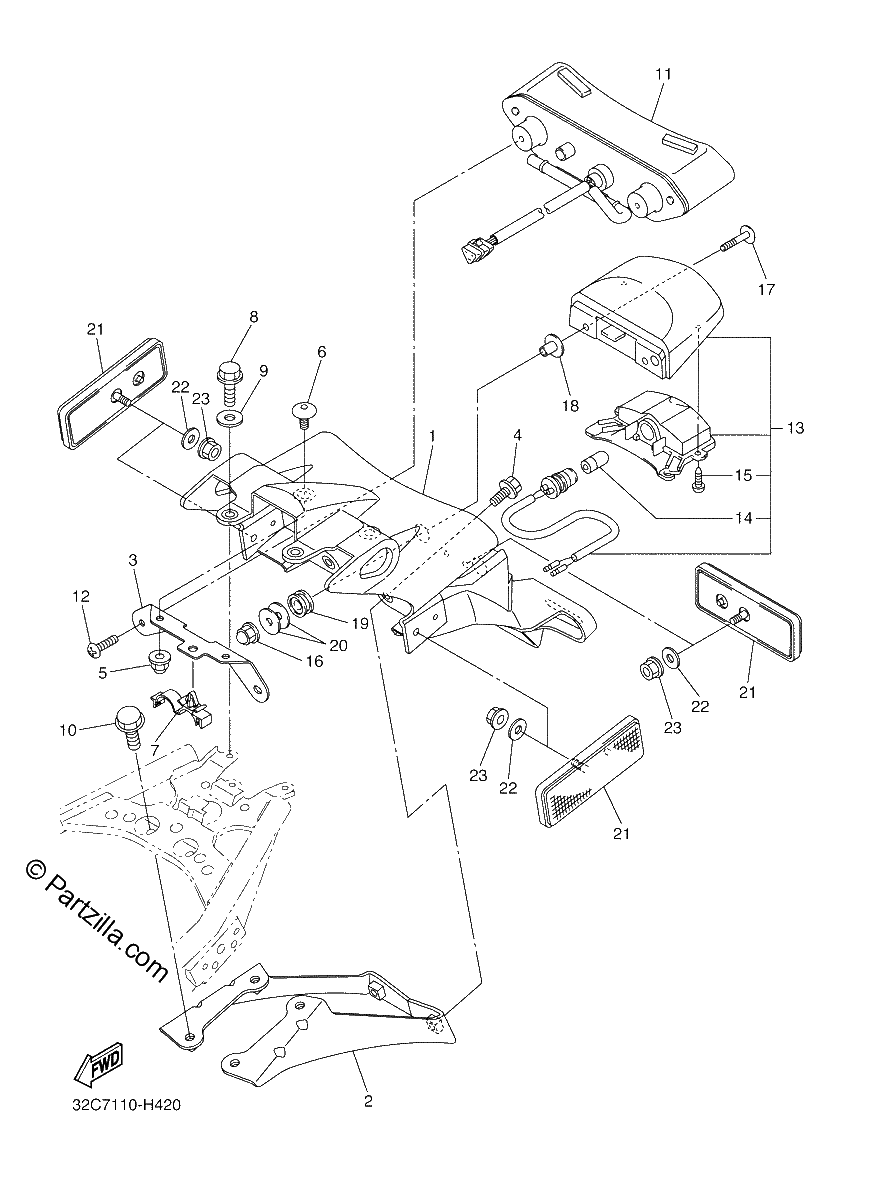

Diagrama de TAILLIGHT

Repuestos

#1
32C-21629-01-00
GUARD, MUD
$107.71¢53 856
1
#2
32C-21688-00-00
BRACKET, REAR STAY
$305.30¢152 650
1
#3
32C-2164G-00-00
STAY 2
$41.46¢20 731
1
#4
90119-06241-00
BOLT, WITH WASHER
$6.99¢3 494
1
#5
90176-05003-00
NUT, CROWN
$3.69¢1 844
1
#6
90111-05011-00
BOLT, HEX. SOCKET BUTTON
$5.19¢2 594
1
#7
90464-16006-00
CLAMP
$9.91¢4 956
1
#8
90105-05024-00
. BOLT, FLANGE
$1.17¢587
1
#9
90201-054K4-00
WASHER, PLATE
$8.31¢4 156
1
#10
90105-06181-00
Bolt, Flange
$1.79¢894
1
#11
32C-84710-01-00
TAILLIGHT UNIT ASSY
$184.00¢92 000
1
#12
97702-50014-00
SCREW, TAPPING
$7.35¢3 675
1
#13
32C-84745-00-00
LICENSE LIGHT UNIT ASSY
$89.74¢44 869
1
#14
4SV-84347-00-00
BULB (12V-5W)
$7.65¢3 825
1
#15
97707-40612-00
SCREW, TRUSS
$6.50¢3 250
1
#16
90176-05054-00
NUT,CROWN
$7.13¢3 563
1
#17
90111-05030-00
BOLT, HEX. SOCKET BUTTON
$2.05¢1 025
1
#18
90387-06159-00
Collar
$7.60¢3 800
1
#19
4WM-83513-00-00
Damper
$8.03¢4 013
1
#20
90201-05036-00
WASHER, plate
$6.99¢3 494
1
#21
3Y6-85130-02-00
Rear Reflector
$27.07¢13 538
1
#22
90201-05725-00
WASHER, PLATE
$8.09¢4 044
1
#23
95702-05500-00
NUT,FLANGE (SILVER)
$0.91¢456
1
