FRONT MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

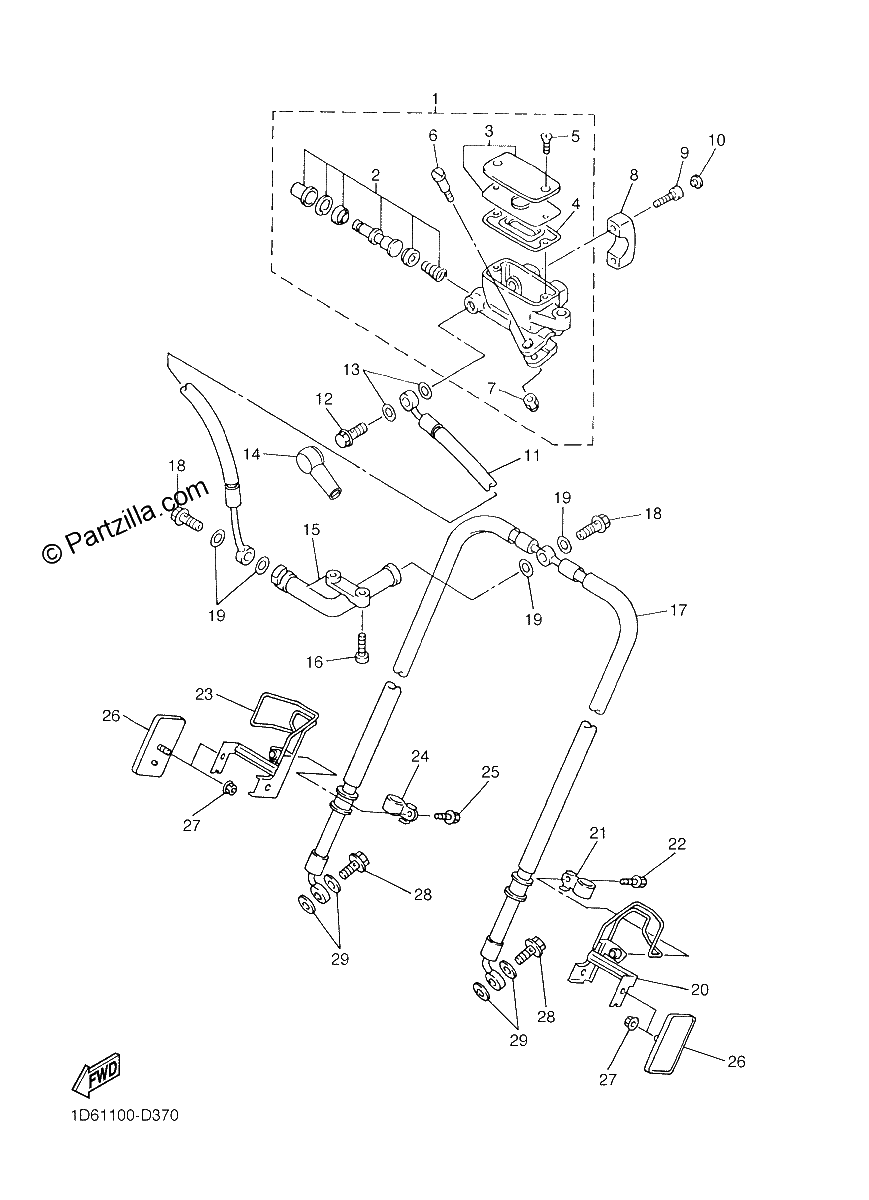

Diagrama de FRONT MASTER CYLINDER

Repuestos

#1
4XY-W2587-10-00
MASTER CYLINDER SUB ASSY
$296.36¢148 181
1
#2
4K0-W0041-50-00
CYLINDER KIT, MASTER
$98.20¢49 100
1
#3
5VN-W2585-20-00
RESERVOIR CAP SET
$66.11¢33 056
1
#4
4NK-25854-00-00
DIAPHRAGM, RESERVOIR
$23.64¢11 819
1
#5
3D8-2589H-10-00
SCREW
$7.70¢3 850
1
#6
4NK-2589F-00-00
BOLT, LEVER
$11.57¢5 788
1
#7
95604-06100-00
NUT, U
$7.94¢3 969
1
#8
4NK-25867-00-00
BRACKET, MASTER CYLINDER
$27.79¢13 894
1
#9
91314-06025-00
BOLT, HEXAGON SOCKET HEAD
$7.94¢3 969
1
#10
90338-06162-00
PLUG
$12.16¢6 081
1
#11
1D6-25872-00-00
Hose, Brake 1
$105.56¢52 781
1
#12
90401-10020-00
BOLT, UNION
$9.86¢4 931
1
#13
90430-10005-00
GASKET
$8.39¢4 194
1
#14
4L0-25862-01-00
BOOT, MASTER CYLINDER
$7.60¢3 800
1
#15
4NK-25885-00-00
JOINT
$62.29¢31 144
1
#16
91317-06020-00
BOLT (4FL)
$2.60¢1 300
1
#17
1D6-25873-00-00
Hose, Brake 2
$105.56¢52 781
1
#18
90401-10020-00
BOLT, UNION
$9.86¢4 931
1
#19
90430-10005-00
GASKET
$8.39¢4 194
1
#20
4XY-25875-00-00
HOLDER, BRAKE HOSE 1
$28.96¢14 481
1
#21
90461-08031-00
CLAMP
$8.01¢4 006
1
#22
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.79¢894
1
#23
4XY-25886-00-00
HOLDER, BRAKE HOSE
$37.50¢18 750
1
#24
90461-08031-00
CLAMP
$8.01¢4 006
1
#25
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.79¢894
1
#26
11H-85110-01-00
REFLECTOR ASSY
$24.93¢12 463
1
#27
95707-05500-00
NUT, FLANGE
$7.35¢3 675
1
#28
90401-10020-00
BOLT, UNION
$9.86¢4 931
1
#29
90430-10005-00
GASKET
$8.39¢4 194
1
