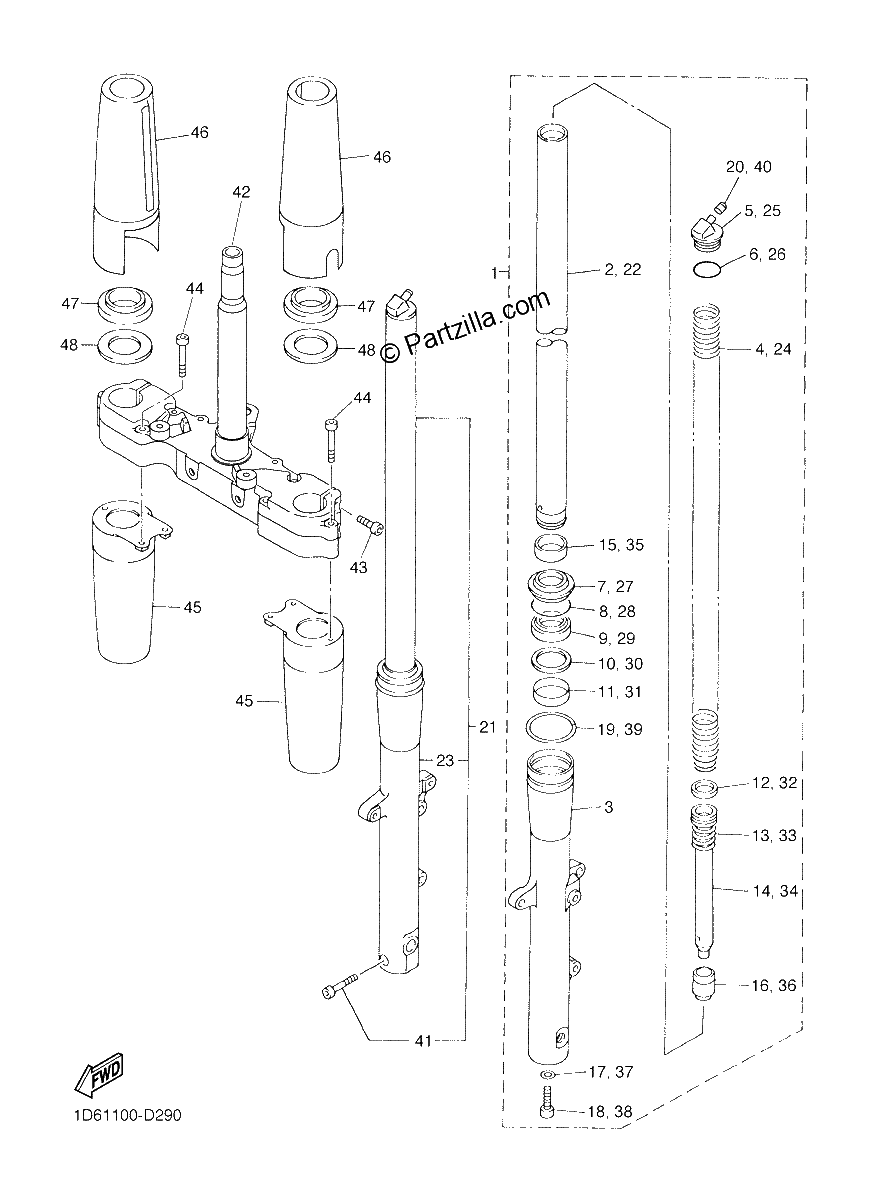

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
Front Fork Assy (L.H)
$1491.24¢745 619
#2
INNER TUBE COMP. 1
$273.10¢136 550
#3
TUBE, OUTER (LEFT)
$1261.24¢630 619
#4
. .Spring, Front Fork
No Disponible
#5
. .Bolt, Cap
$88.35¢44 175
#6
O-RING
$7.70¢3 850
#7
SEAL, DUST
$20.80¢10 400
#8
RING, SNAP
$22.16¢11 081
#9
OIL SEAL
$22.64¢11 319
#10
WASHER, OIL SEAL
$10.39¢5 194
#11
METAL, SLIDE 1
$24.31¢12 156
#12
RING, PISTON
$10.39¢5 194
#13
SPRING, REBOUND
No Disponible
#14
PISTON, FRONT FORK
$63.83¢31 913
#15
METAL, SLIDE 2
$9.93¢4 963
#16
SPACER, OIL LOCK
$19.85¢9 925
#17
GASKET, DRAIN PLUG
$9.85¢4 925
#18
BOLT, HEXAGON SOCKET HEAD
$6.63¢3 313
#19
GUIDE, BOOT
$22.31¢11 156
#20
CAP, AIR VALVE
$8.22¢4 113
#21
Front Fork Assy (R.H)
No Disponible
#22
INNER TUBE COMP. 1
$273.10¢136 550
#23
TUBE, OUTER (RIGHT)
$1272.49¢636 244
#24
. .Spring, Front Fork
No Disponible
#25
. .Bolt, Cap
$88.35¢44 175
#26
O-RING
$7.70¢3 850
#27
SEAL, DUST
$20.80¢10 400
#28
RING, SNAP
$22.16¢11 081
#29
OIL SEAL
$22.64¢11 319
#30
WASHER, OIL SEAL
$10.39¢5 194
#31
METAL, SLIDE 1
$24.31¢12 156
#32
RING, PISTON
$10.39¢5 194
#33
SPRING, REBOUND
No Disponible
#34
PISTON, FRONT FORK
$63.83¢31 913
#35
METAL, SLIDE 2
$9.93¢4 963
#36
SPACER, OIL LOCK
$19.85¢9 925
#37
GASKET, DRAIN PLUG
$9.85¢4 925
#38
BOLT, HEXAGON SOCKET HEAD
$6.63¢3 313
#39
GUIDE, BOOT
$22.31¢11 156
#40
CAP, AIR VALVE
$8.22¢4 113
#41
BOLT, HEXAGON SOCKET HEAD
$2.94¢1 469
#42
Under Bracket Comp
$510.56¢255 281
#43
BOLT
$7.34¢3 669
#44
BOLT, HEXAGON SOCKET HEAD
$4.81¢2 406
#45
COVER, UNDER 1
$327.84¢163 919
#46
Cover, Upper 1
$446.39¢223 194
#47
GASKET
$29.86¢14 931
#48
WASHER, FELT
$19.15¢9 575
