CARBURETOR

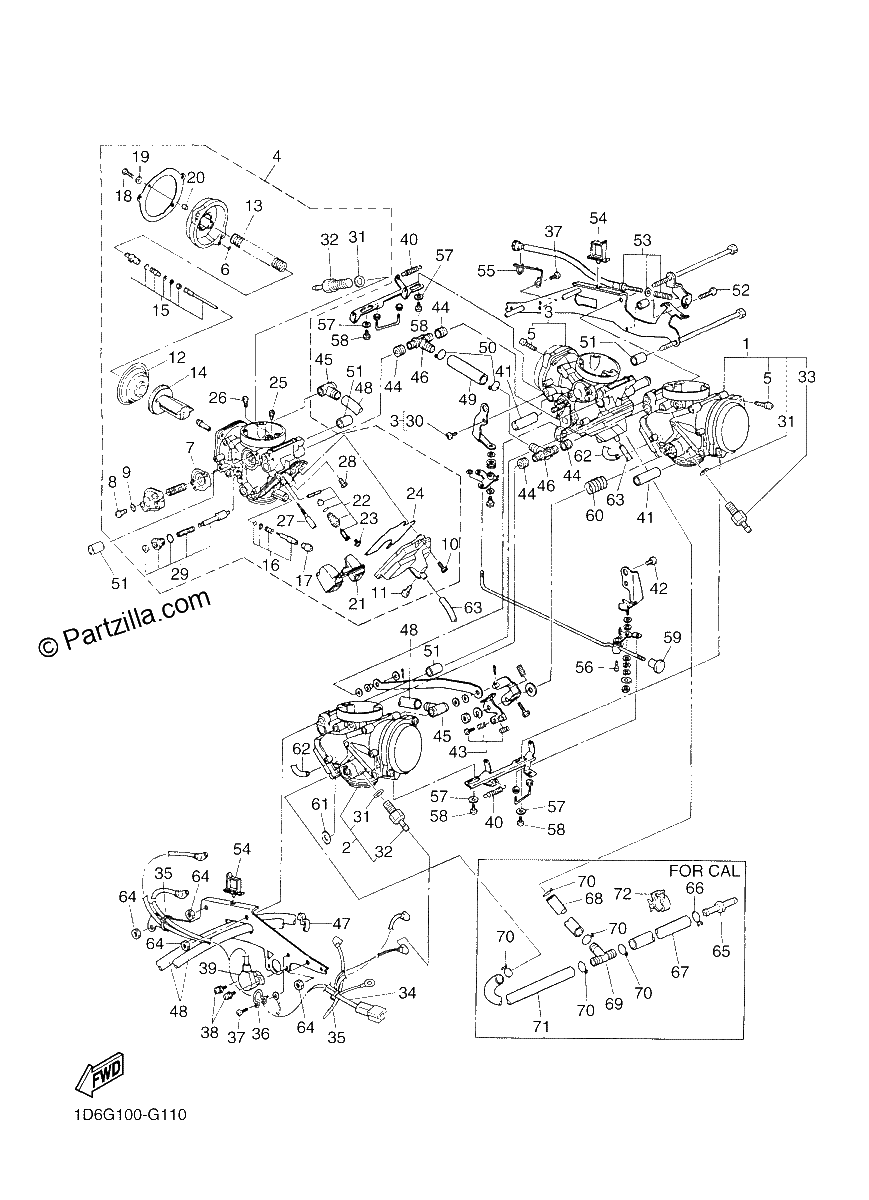

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
Carburetor Assy 1
$684.99¢342 494
#1
Carburetor Assy 1 FOR CALIFORNIA
$761.24¢380 619
#2
Carburetor Assy 2
$684.99¢342 494
#2
Carburetor Assy 2 FOR CALIFORNIA
$761.24¢380 619
#3
Carburetor Assy 3
$684.99¢342 494
#3
Carburetor Assy 3 FOR CALIFORNIA
$761.24¢380 619
#4
Carburetor Assy 4
$684.99¢342 494
#4
Carburetor Assy 4 FOR CALIFORNIA
$761.24¢380 619
#5
SCREW | #1, 2, 3
$7.65¢3 825
#6
O-RING
$15.59¢7 794
#7
DIAPHRAGM ASSY
$41.39¢20 694
#8
SCREW, PAN HEAD
$1.57¢788
#9
WASHER, SPRING
$7.13¢3 563
#10
BOLT
$2.07¢1 037
#11
PLUG, DRAIN
$14.29¢7 144
#12
DIAPHRAGM ASSY
$71.61¢35 806
#13
SPRING, DIAPHRAGM
$9.35¢4 675
#14
VALVE, THROTTLE 1
$90.78¢45 388
#15
NEEDLE SET
$46.51¢23 256
#16
PILOT SCREW SET
$21.74¢10 869
#17
CAP
$12.01¢6 006
#18
SCREW,PANHEAD(4MY
$2.95¢1 475
#19
WASHER, SPRING
$7.35¢3 675
#20
RING | #4
$12.29¢6 144
#21
FLOAT
$95.51¢47 756
#22
NEEDLE VALVE SET
$42.55¢21 275
#23
SCREW
$7.65¢3 825
#24
O-RING
$17.96¢8 981
#25
JET, MAIN (#85)
$10.72¢5 363
#26
JET, MAIN (#140)
$13.31¢6 656
#27
JET, PILOT (#15)
$9.70¢4 850
#28
JET, MAIN (#122.5) | UR #1, 2
$12.31¢6 156
#28
JET, MAIN (#117.5) | UR #3
$11.94¢5 969
#28
JET, MAIN (#120) | UR #4
$11.60¢5 800
#29
STARTER SET
$65.21¢32 606
#30
SCREW, OVAL HEAD
No Disponible
#31
WASHER, PLATE | FOR CALIFORNIA
$7.43¢3 713
#32
HEATER ASSY (15W)
$32.84¢16 419
#33
HEATER ASSY (30W)
$52.21¢26 106
#34
WIRE, SUB LEAD
$38.05¢19 025
#35
CLIP, PIPE
$5.58¢2 788
#36
CLIP
$18.24¢9 119
#37
SCREW,PANHD (3AH) (replaces 90157-05003-00)
$3.21¢1 606
#38
SCREW
$8.03¢4 013
#39
THROTTLE POSITION SENSOR ASSY
$295.52¢147 763
#40
SPRING
$12.42¢6 212
#41
PIPE
$19.38¢9 688
#42
SCREW, OVAL HEAD
No Disponible
#43
STOP SCREW SET
$17.26¢8 631
#44
SEAL
$15.59¢7 794
#45
PIPE
$12.29¢6 144
#46
NIPPLE
$27.32¢13 663
#47
CLAMP
$7.36¢3 681
#48
PIPE
$68.06¢34 031
#49
PIPE
No Disponible
#50
CLIP
$2.73¢1 363
#51
PIPE
$11.85¢5 925
#52
SCREW, PAN HEAD (replaces 98507-05020-00)
$1.61¢806
#53
THROTTLE SCREW SET
$62.69¢31 344
#54
CLIP
$5.10¢2 550
#55
CLIP, PIPE
$18.24¢9 119
#56
Screw
$4.30¢2 150
#57
PACKING
$7.08¢3 538
#58
SCREW
$5.10¢2 550
#59
HOLDER
$11.50¢5 750
#60
SPRING
$4.30¢2 150
#61
WASHER
$3.79¢1 894
#62
PIPE
$9.64¢4 819
#63
PIPE
No Disponible
#64
NUT
$3.21¢1 606
#65
JOINT
$7.08¢3 538
#66
CLIP | FOR CALIFORNIA
$7.60¢3 800
#67
PIPE | FOR CALIFORNIA
$59.66¢29 831
#68
HOSE | FOR CALIFORNIA
$19.23¢9 613
#69
PIPE, JOINT 1 | FOR CALIFORNIA
$8.97¢4 488
#70
CLIP
$2.61¢1 306
#71
HOSE | FOR CALIFORNIA
$26.43¢13 213
#72
CLAMP
$7.34¢3 669
