CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

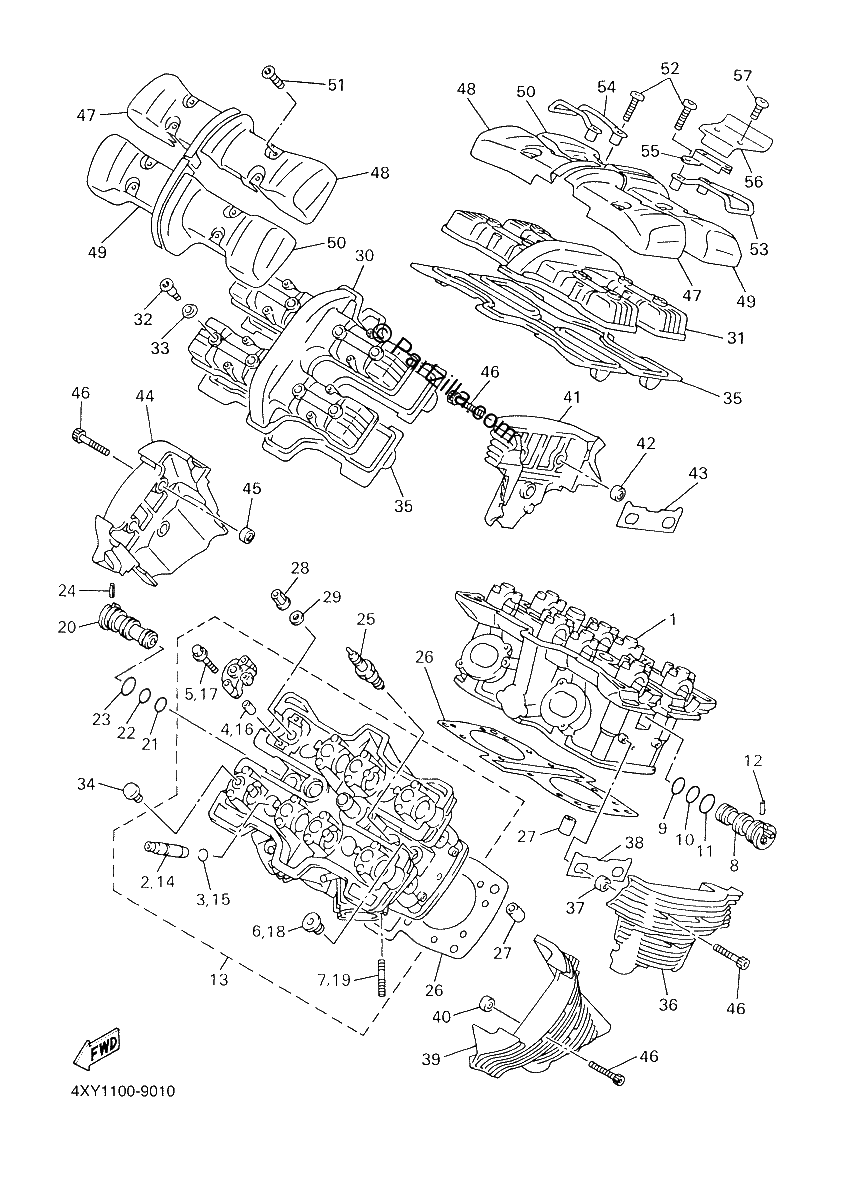

Diagrama de CYLINDER HEAD

Repuestos

#1
4XY-11101-41-00
CYLINDER HEAD ASSY
$1606.54¢803 269
1
#2
26H-11133-10-00
GUIDE, VALVE 1
$24.66¢12 328
1
#3
93440-12117-00
CIRCLIP
$0.20¢98
1
#4
91808-16023-00
PIN, DOWEL
$6.18¢3 088
1
#5
90105-06153-00
BOLT, FLANGE
$3.04¢1 518
1
#6
90340-18101-00
PLUG, STRAIGHT SCREW
$10.87¢5 434
1
#7
95617-08620-00
BOLT, STUD
$5.43¢2 714
1
#8
26H-12469-01-00
JOINT 1
$41.76¢20 878
1
#9
93210-16629-00
O-RING
$5.45¢2 726
1
#10
93210-18322-00
O-RING
$4.98¢2 490
1
#11
93210-21631-00
O-RING
$7.04¢3 519
1
#12
91690-30025-00
PIN, SPRING
$6.44¢3 220
1
#13
4XY-11101-51-00
CYLINDER HEAD ASSY
$1425.99¢712 994
1
#14
26H-11133-10-00
GUIDE, VALVE 1
$24.66¢12 328
1
#15
93440-12117-00
CIRCLIP
$0.20¢98
1
#16
91808-16023-00
PIN, DOWEL
$6.18¢3 088
1
#17
90105-06153-00
BOLT, FLANGE
$3.04¢1 518
1
#18
90340-18101-00
PLUG, STRAIGHT SCREW
$10.87¢5 434
1
#19
95617-08620-00
BOLT, STUD
$5.43¢2 714
1
#20
26H-12469-01-00
JOINT 1
$41.76¢20 878
1
#21
93210-16629-00
O-RING
$5.45¢2 726
1
#22
93210-18322-00
O-RING
$4.98¢2 490
1
#23
93210-21631-00
O-RING
$7.04¢3 519
1
#24
91690-30025-00
PIN, SPRING
$6.44¢3 220
1
#25
NGK-DPR8E-A0-00
Plug, Spark (Ngk Dpr8ea-9) NGK-DPR8E-1X-00
No Disponible
1
#26
1NL-11181-02-00
GASKET, CYLINDER HEAD 1
$42.60¢21 298
1
#27
99530-14016-00
PIN, DOWEL
$3.51¢1 754
1
#28
90179-10026-00
NUT
$7.53¢3 766
1
#29
90201-102G9-00
WASHER, PLATE
$6.99¢3 496
1
#30
4NK-11191-00-00
COVER, CYLINDER HEAD 1
$182.04¢91 023
1
#31
4NK-11191-00-00
COVER, CYLINDER HEAD 1
$182.04¢91 023
1
#32
90109-066F0-00
BOLT
$6.99¢3 496
1
#33
5EA-1111G-00-00
RUBBER, MOUNT 1
$20.25¢10 126
1
#34
90338-10150-00
PLUG
$6.76¢3 381
1
#35
4NK-11193-00-00
GASKET, HEAD COVER 1
$56.55¢28 273
1
#36
4NK-11186-20-00
COVER, CYLINDER HEAD SIDE 2
$343.15¢171 574
1
#37
4NK-15316-00-00
DAMPER 1
$24.69¢12 345
1
#38
4NK-11195-00-00
GASKET
$11.56¢5 779
1
#39
4XY-11187-20-00
COVER, CYLINDER HEAD SIDE 3
$368.02¢184 011
1
#40
4NK-15316-00-00
DAMPER 1
$24.69¢12 345
1
#41
4NK-11185-20-00
COVER, CYLINDER HEAD SIDE 3
$343.15¢171 574
1
#42
4NK-15316-00-00
DAMPER 1
$24.69¢12 345
1
#43
4NK-11195-00-00
GASKET
$11.56¢5 779
1
#44
4XY-1111H-20-00
COVER, CYLINDER HEAD SIDE 4
$368.02¢184 011
1
#45
4NK-15316-00-00
DAMPER 1
$24.69¢12 345
1
#46
91314-06020-00
BOLT (3JB) (replaces 91312-06020-00)
$2.24¢1 121
1
#47
4NK-1111M-00-00
COVER 1
$100.59¢50 295
1
#48
4NK-1111N-00-00
COVER 2
$100.59¢50 295
1
#49
4NK-1111P-00-00
COVER 3
$100.59¢50 295
1
#50
4NK-1111R-00-00
COVER 4
$100.59¢50 295
1
#51
92014-06014-00
BOLT, BUTTON HEAD
$2.90¢1 449
1
#52
92014-06030-00
BOLT, BUTTON HEAD
$6.75¢3 375
1
#53
4NK-11152-00-00
BRACKET, CYLINDER HEAD COVER
$68.08¢34 040
1
#54
4NK-11142-00-00
BRACKET, CYLINDER HEAD COVER 2
$68.08¢34 040
1
#55
4XY-11152-00-00
BRACKET, CYLINDER HEAD COVER
$15.16¢7 578
1
#56
1D6-1118A-00-00
Cover
$74.04¢37 018
1
#57
92014-06010-00
BOLT, BUTTON HEAD
$5.78¢2 892
1
