ELECTRICAL 3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

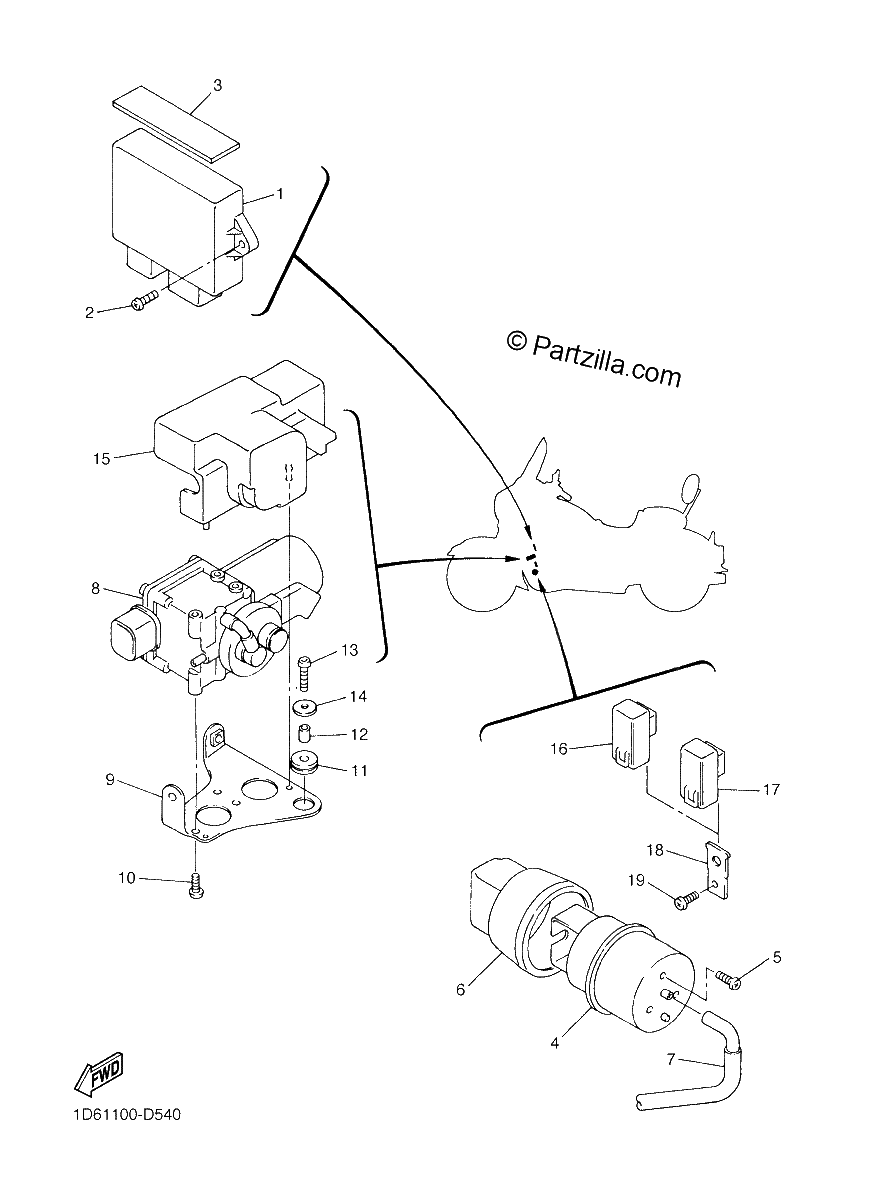

Diagrama de ELECTRICAL 3

Repuestos

#1
4XY-85830-01-00
CONTROL UNIT ASSY
$522.88¢261 438
1
#2
97707-60016-00
SCREW, TAPPING
$1.25¢625
1
#3
4XY-2834E-00-00
DAMPER 3
$3.79¢1 894
1
#4
4XY-85860-00-00
VACUUM ACTUATOR
$131.94¢65 969
1
#5
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#6
4XY-85825-00-00
COVER, WIRE
$15.80¢7 900
1
#7
4XY-2840B-00-00
PIPE 1
$31.35¢15 675
1
#8
4XY-85861-00-00
PUMP, VACUUM
$827.49¢413 744
1
#9
4XY-28321-00-00
STAY 1
$22.91¢11 456
1
#10
97707-50014-00
SCREW, TRUSS HEAD TAPPING
$7.35¢3 675
1
#11
90480-12475-00
GROMMET
$7.94¢3 969
1
#12
90387-06113-00
COLLAR
$12.52¢6 262
1
#13
92017-06020-00
BOLT, BUTTON HEAD
$3.04¢1 519
1
#14
90201-06020-00
WASHER, PLATE (replaces 90201-06058-00)
$7.48¢3 738
1
#15
4XY-28365-00-00
COVER
$29.30¢14 650
1
#16
1UY-81950-92-00
RELAY ASSY (1UY-92)
$82.49¢41 244
1
#17
29U-81950-93-00
RELAY ASSY
$83.00¢41 500
1
#18
1VJ-81953-00-00
STAY, RELAY
No Disponible
1
#19
97707-50014-00
SCREW, TRUSS HEAD TAPPING
$7.35¢3 675
1
