TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

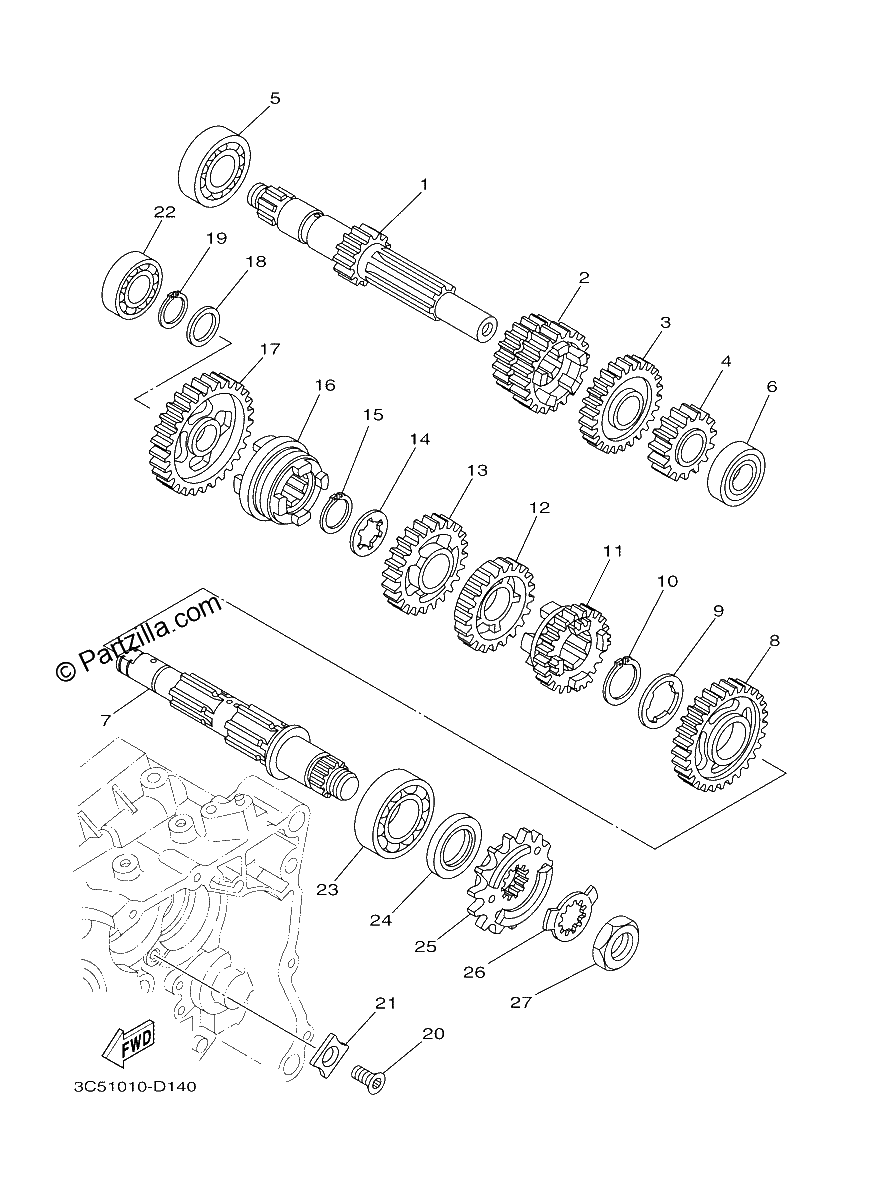

Diagrama de TRANSMISSION

Repuestos

#1
5XT-17411-00-00
Axle, Main
$128.63¢64 314
1
#2
5XT-17131-00-00
GEAR, 3RD PINION
$109.93¢54 964
1
#3
5XT-17151-10-00
GEAR, 5TH PINION
$81.34¢40 670
1
#4
51Y-17121-00-00
GEAR,2ND PINION
$22.93¢11 466
1
#5
93306-20427-00
BEARING
$38.27¢19 136
1
#6
93306-00320-00
BEARING
$34.79¢17 394
1
#7
3C5-17402-00-00
Drive axle assy
$154.16¢77 079
1
#8
5XT-17221-00-00
GEAR, 2ND WHEEL
$92.16¢46 080
1
#9
90209-23241-00
WASHER,SPEC'L SHAPE
$3.76¢1 880
1
#10
93410-26067-00
CIRCLIP,S-TYPE
$8.13¢4 065
1
#11
5XT-17251-10-00
GEAR, 5TH WHEEL
$113.01¢56 505
1
#12
5XT-17241-00-00
GEAR, 4TH WHEEL
$61.02¢30 510
1
#13
5XT-17231-00-00
GEAR, 3RD WHEEL
$70.60¢35 299
1
#14
90209-18208-00
WASHER,SPEC'L SHAPE
$7.64¢3 818
1
#15
93410-22039-00
CIRCLIP,S-TYPE
$6.75¢3 375
1
#16
5BP-17285-00-00
CLUTCH, DOG
$44.45¢22 224
1
#17
3C5-17211-00-00
GEAR, 1ST WHEEL This item has been discontinued and may not be available. Contact us for more information.
$84.93¢42 464
1
#18
90201-177G4-00
WASHER,PLATE
$7.44¢3 720
1
#19
93410-17037-00
CIRCLIP,S-TYPE
$7.30¢3 651
1
#20
90151-06008-00
SCREW, COUNTERSUNK
$7.52¢3 760
1
#21
3C5-17558-00-00
PLATE, BEARING This item has been discontinued and may not be available. Contact us for more information.
$6.22¢3 111
1
#22
93306-20332-00
BEARING
$36.08¢18 038
1
#23
93306-20532-00
BEARING
$63.16¢31 579
1
#24
93102-25226-00
OIL SEAL,SD-TYPE
$13.50¢6 751
1
#25
5XT-17460-00-00
SPROCKET, DRIVE
$23.48¢11 742
1
#26
90215-23265-00
WASHER,LOCK
$3.22¢1 610
1
#27
90179-18552-00
NUT,SPEC'L SHAPE
$17.30¢8 648
1
