CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

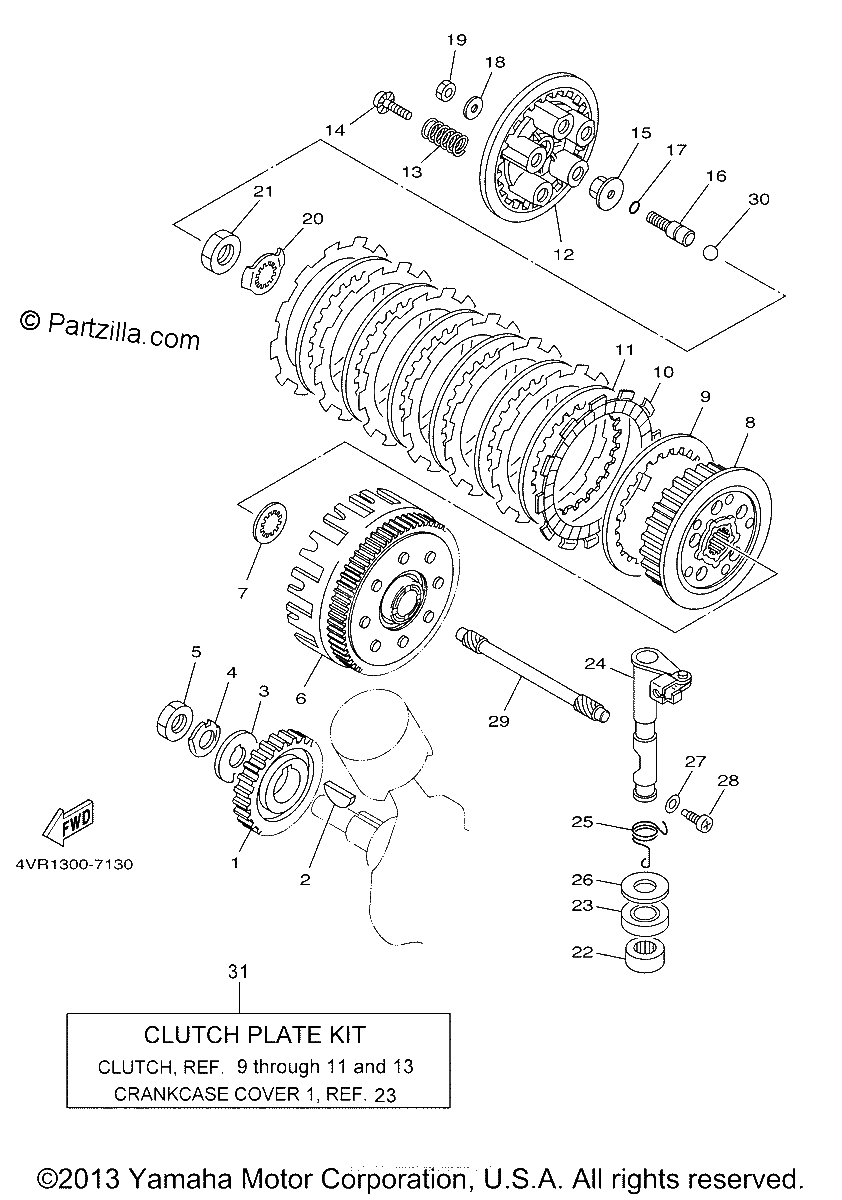

Diagrama de CLUTCH

Repuestos

#1
4VR-16111-00-00
GEAR, PRIMARY DRIVE (38T)
$66.73¢33 363
1
#2
90280-07036-00
KEY, WOODRUFF
$3.16¢1 581
1
#3
90214-16026-00
WASHER, CLAW
$6.69¢3 344
1
#4
90215-16222-00
WASHER, LOCK
$9.60¢4 800
1
#5
90170-16343-00
NUT
$16.27¢8 137
1
#6
5BN-16150-00-00
PRIMARY DRIVEN GEAR COMP.
$612.56¢306 281
1
#7
22U-16154-00-00
PLATE, THRUST 1
$38.30¢19 150
1
#8
4VR-16371-00-00
BOSS, CLUTCH
$223.02¢111 512
1
#9
4X7-16324-00-00
PLATE, CLUTCH 1
$11.81¢5 906
1
#10
22U-16321-00-00
PLATE, FRICTION
$30.44¢15 219
1
#11
4X7-16325-00-00
PLATE,CLUTCH 2
$18.69¢9 344
1
#12
22U-16351-00-00
PLATE, PRESSURE 1
$89.19¢44 594
1
#13
90501-23738-00
SPRING, COMPRESSION
$12.69¢6 344
1
#14
90159-06016-00
SCREW, WITH WASHER
$3.34¢1 669
1
#15
1W1-16358-01-00
PLATE, PUSH
$23.89¢11 944
1
#16
4VR-16356-00-00
ROD, PUSH 1
$20.56¢10 281
1
#17
93210-09525-00
O-Ring
$5.61¢2 806
1
#18
92907-06200-00
WASHER
$7.35¢3 675
1
#19
95317-06600-00
NUT
$3.21¢1 606
1
#20
90215-22244-00
WASHER, LOCK
$13.54¢6 769
1
#21
90170-20323-00
NUT
$23.20¢11 600
1
#22
93315-21813-00
BEARING
$38.56¢19 281
1
#23
93102-18278-00
OIL SEAL,SD-TYPE
$12.42¢6 212
1
#24
22U-16380-00-00
PUSH LEVER ASSY
$68.61¢34 306
1
#25
90508-16577-00
SPRING, TORSION
$7.01¢3 506
1
#26
90201-18262-00
WASHER, PLATE
$7.48¢3 738
1
#27
90430-08119-00
GASKET
$6.91¢3 456
1
#28
90149-08067-00
SCREW,SPEC'L SHAPE
$5.41¢2 706
1
#29
22U-16357-00-00
ROD, PUSH 2
$53.90¢26 950
1
#30
93515-32029-00
BALL
$3.30¢1 650
1
#31
3B6-W001G-00-00
CLUTCH PLATE KIT
$152.25¢76 125
1
