MIDDLE DRIVE GEAR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

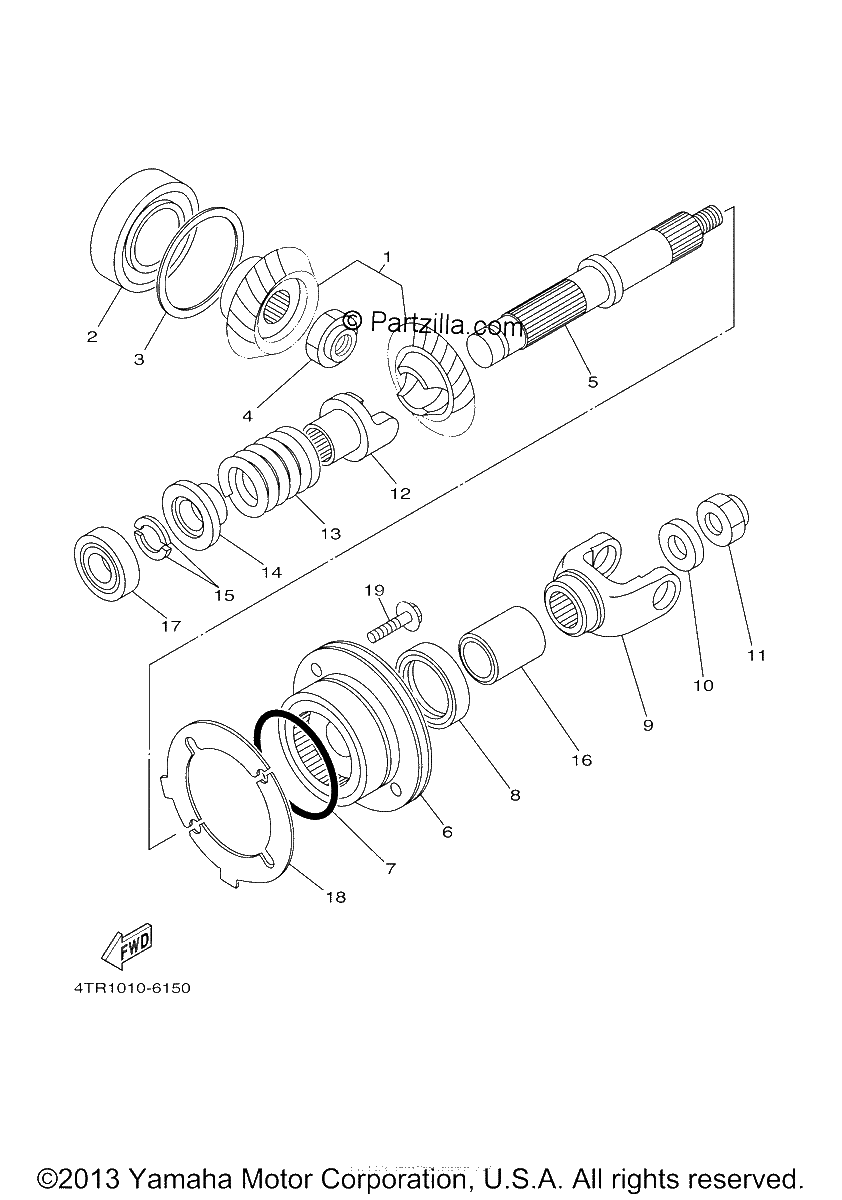

Diagrama de MIDDLE DRIVE GEAR

Repuestos

#0
4H7-17537-00-30
SHIM, THRUST (0.30T) | UR
No Disponible
1
#0
4H7-17537-00-40
SHIM, THRUST (0.40T) | UR
No Disponible
1
#0
3JB-17531-00-00
SHIM, PINION (0.10T) | UR
$14.67¢7 337
1
#0
3JB-17531-20-00
SHIM, PINION (0.20T) | UR
$5.37¢2 685
1
#0
3JB-17531-30-00
SHIM, PINION (0.30T) | UR
$7.06¢3 530
1
#0
3JB-17531-40-00
SHIM, PINION (0.40T) | UR
$9.37¢4 686
1
#0
3JB-17531-50-00
SHIM, PINION (0.50T) | UR
$8.49¢4 244
1
#1
4VR-Y1754-00-00
MIDDLE GEAR COMP.
$251.62¢125 810
1
#2
93306-20711-00
BEARING
$44.10¢22 051
1
#3
4H7-17537-00-20
SHIM, THRUST (0.20T) | UR
$5.58¢2 789
1
#4
90179-18396-00
NUT
$16.13¢8 067
1
#5
4VR-17553-00-00
SHAFT, MIDDLE DRIVEN
$147.27¢73 634
1
#6
4VR-W1752-00-00
HOUSHING COMP.
$161.20¢80 598
1
#7
93210-71360-00
O-RING
$12.60¢6 302
1
#8
93101-35097-00
OIL SEAL
$19.50¢9 752
1
#9
22U-17556-00-00
YOKE, JOINT
$86.08¢43 039
1
#10
90201-14633-00
WASHER, PLATE
$5.76¢2 881
1
#11
90185-14070-00
NUT, SELF-LOCKING
$11.45¢5 727
1
#12
4VR-17527-00-00
CAM, DRIVEN
$78.97¢39 485
1
#13
90501-60716-00
SPRING, COMPRESSION
$18.92¢9 459
1
#14
22U-17524-00-00
HOLDER
$16.55¢8 274
1
#15
3H5-17529-00-00
WASHER, THRUST
$5.37¢2 685
1
#16
90387-2511R-00
COLLAR
$30.93¢15 467
1
#17
93306-00426-00
BEARING
$40.11¢20 056
1
#18
3JB-17531-10-00
SHIM, PINION (0.15T) | UR
$8.99¢4 497
1
#19
95817-08035-00
BOLT,FLANGE (replaces 90105-08108-00)
$7.30¢3 651
1
