COWLING 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

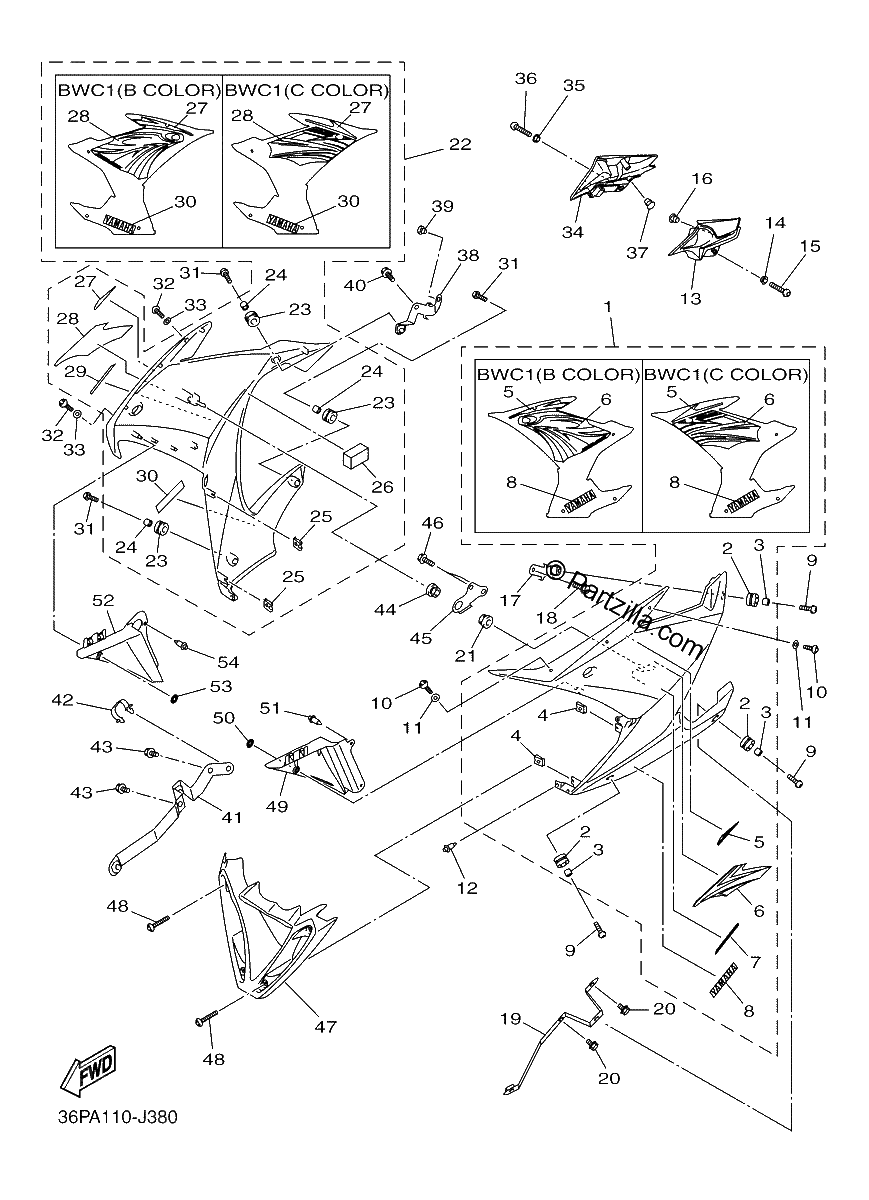

Diagrama de COWLING 2

Repuestos

#1
36P-Y283U-80-P3
PANEL ASSEMBLY 1 (BLUISH WHITE COCKTAIL 1) *{UR BWC1 (B COLOR) (PEARL WHITE/VIVID MAGENTA)}*
No Disponible
1
#2
90480-14003-00
GROMMET
$6.83¢3 415
1
#3
90387-06260-00
COLLAR
$6.83¢3 415
1
#4
90183-05076-00
NUT, SPRING
$2.60¢1 299
1
#5
36P-2831Y-10-00
GRAPHIC, 14 (BLUISH WHITE COCKTAIL 1) *{UR BWC1 (B COLOR) (PEARL WHITE/VIVID MAGENTA)}*
$48.97¢24 483
1
#6
36P-2832C-10-00
GRAPHIC, 16 (BLUISH WHITE COCKTAIL 1) *{UR BWC1 (B COLOR) (PEARL WHITE/VIVID MAGENTA)}*
$218.41¢109 204
1
#8
36P-2153E-10-00
EMBLEM, YAMAHA (BLUISH WHITE COCKTAIL 1) *{UR BWC1 (B COLOR) (PEARL WHITE/VIVID MAGENTA)}*
$14.43¢7 216
1
#9
90149-06302-00
SCREW
$4.70¢2 352
1
#10
90111-05007-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#11
90202-05180-00
WASHER, PLATE
$7.05¢3 525
1
#12
90269-06008-00
RIVET
$8.10¢4 048
1
#13
36P-2171N-00-00
MOLE, SIDE COVER 3
$13.64¢6 819
1
#14
90387-06130-00
Collar
$7.93¢3 968
1
#15
90149-06302-00
SCREW
$4.70¢2 352
1
#16
90338-07043-00
PLUG
$6.03¢3 013
1
#17
36P-2833A-00-00
BRACKET 7
$21.01¢10 505
1
#18
95802-06014-00
Bolt, Flange
$2.44¢1 219
1
#19
36P-2836A-01-00
BRACKET 1
$39.00¢19 498
1
#20
90109-060E9-00
BOLT
$7.72¢3 858
1
#21
90480-01558-00
Grommet
$4.31¢2 156
1
#22
36P-Y283V-80-P3
PANEL ASSEMBLY 2 (BLUISH WHITE COCKTAIL 1) *{UR BWC1 (B COLOR) (PEARL WHITE/VIVID MAGENTA)}*
No Disponible
1
#23
90480-14003-00
GROMMET
$6.83¢3 415
1
#24
90387-06260-00
COLLAR
$6.83¢3 415
1
#25
90183-05076-00
NUT, SPRING
$2.60¢1 299
1
#26
2C0-2162G-00-00
PLATE 1
$3.48¢1 742
1
#27
36P-2832B-10-00
GRAPHIC, 15 (BLUISH WHITE COCKTAIL 1) *{UR BWC1 (B COLOR) (PEARL WHITE/VIVID MAGENTA)}*
No Disponible
1
#28
36P-2832D-10-00
GRAPHIC 17 (BLUISH WHITE COCKTAIL 1) *{UR BWC1 (B COLOR) (PEARL WHITE/VIVID MAGENTA)}*
$231.25¢115 627
1
#30
36P-2153E-10-00
EMBLEM, YAMAHA (BLUISH WHITE COCKTAIL 1) *{UR BWC1 (B COLOR) (PEARL WHITE/VIVID MAGENTA)}*
$14.43¢7 216
1
#30
36P-2153E-00-00
EMBLEM, YAMAHA (DEEP PURPLISH BLUE METALLIC C) *{UR DPBMC}*
$18.30¢9 148
1
#31
90149-06302-00
SCREW
$4.70¢2 352
1
#32
90111-05007-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#33
90202-05180-00
WASHER, PLATE
$7.05¢3 525
1
#34
36P-2171R-00-00
MOLE, SIDE COVER 4
$13.64¢6 819
1
#35
90387-06130-00
Collar
$7.93¢3 968
1
#36
90149-06302-00
SCREW
$4.70¢2 352
1
#37
90338-07043-00
PLUG
$6.03¢3 013
1
#38
36P-2833E-00-00
BRACKET 8
$37.25¢18 624
1
#39
90338-07157-00
PLUG
$6.32¢3 162
1
#40
95802-06014-00
Bolt, Flange
$2.44¢1 219
1
#41
36P-2836E-01-00
BRACKET 2
$45.32¢22 661
1
#42
90464-24230-00
CLAMP
$6.36¢3 180
1
#43
90109-060E9-00
BOLT
$7.72¢3 858
1
#44
90480-01558-00
Grommet
$4.31¢2 156
1
#45
20S-21843-00-00
STAY, 4
$7.38¢3 691
1
#46
95822-06014-00
Bolt, Flange
$2.44¢1 219
1
#47
36P-22863-00-00
COVER, UNDER
$57.63¢28 813
1
#48
90111-05034-00
BOLT, HEX. SOCKET BUTTON
$6.83¢3 415
1
#49
36P-2836N-00-00
PANEL, INNER 4
$25.27¢12 633
1
#50
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#51
90269-06008-00
RIVET
$8.10¢4 048
1
#52
36P-2836R-00-00
PANEL, INNER 5
$19.92¢9 959
1
#53
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#54
90269-06008-00
RIVET
$8.10¢4 048
1
