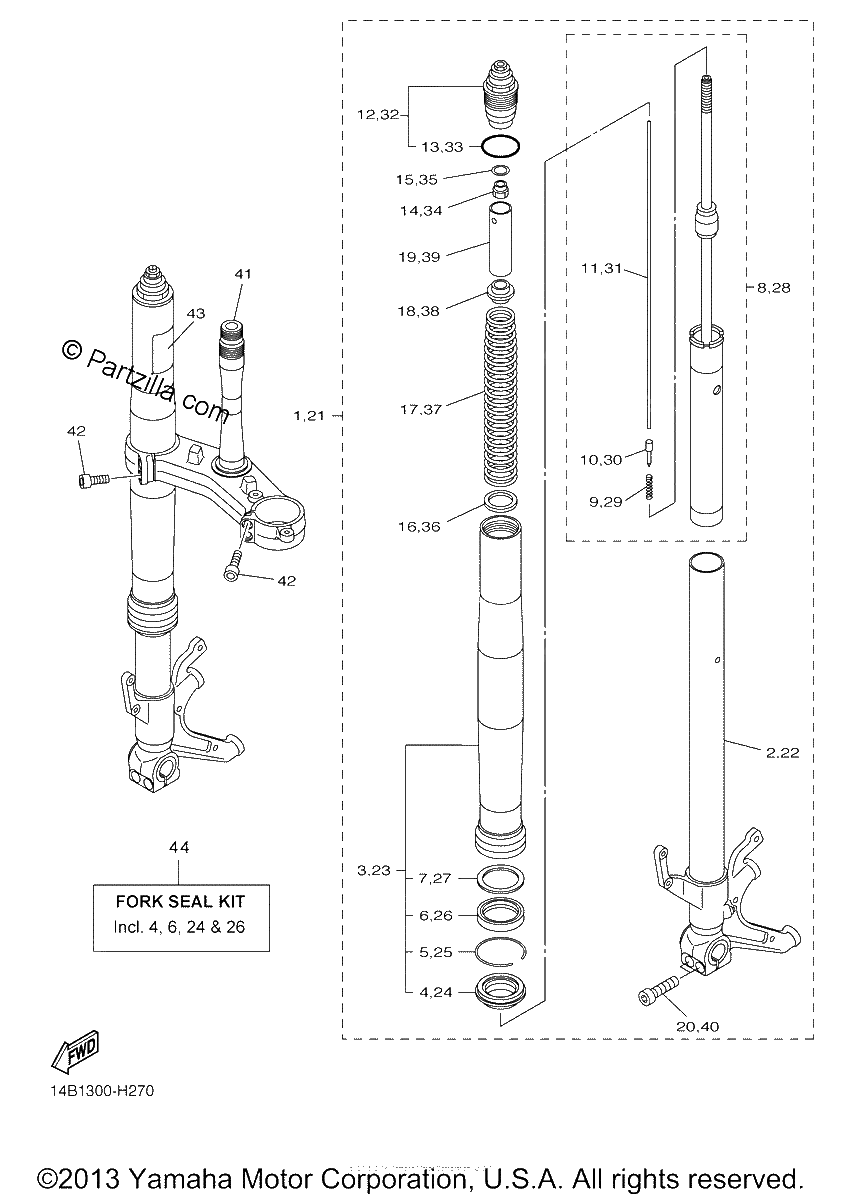

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H) | UR FOR DPBMC
$1183.60¢591 800
#2
INNER TUBE COMP.1
$580.65¢290 325
#3
OUTER TUBE COMP. | UR FOR DPBMC
$426.35¢213 175
#4
SEAL, DUST | INCL. IN FORK SEAL KIT
$23.10¢11 550
#5
RING, SNAP
$10.39¢5 194
#6
OIL SEAL | INCL. IN FORK SEAL KIT
$27.83¢13 913
#7
GUIDE, COVER UPPER
$8.97¢4 488
#8
CYL. COMP., 2
$361.51¢180 756
#9
SPRING, VALVE
$7.95¢3 975
#10
VALVE
$11.10¢5 550
#11
PLUNGER
No Disponible
#12
BOLT, CAP
$344.31¢172 156
#13
O-RING
$7.46¢3 731
#14
NUT, SPECIAL
$14.20¢7 100
#15
PLATE, VALVE 2
$8.03¢4 013
#16
SEAT, SPRING LOWER
$4.40¢2 200
#17
SPRING, FRONT FORK
No Disponible
#18
SEAT, SPRING UPPER
$3.79¢1 894
#19
SPACER
$10.30¢5 150
#20
BOLT, HEXAGON SOCKET HEAD
$2.94¢1 469
#21
FRONT FORK ASSY (R.H) | UR FOR DPBMC
$1153.74¢576 869
#22
INNER TUBE COMP.2
No Disponible
#23
OUTER TUBE COMP. | UR FOR DPBMC
$426.35¢213 175
#24
SEAL, DUST | INCL. IN FORK SEAL KIT
$23.10¢11 550
#25
RING, SNAP
$10.39¢5 194
#26
OIL SEAL | INCL. IN FORK SEAL KIT
$27.83¢13 913
#27
GUIDE, COVER UPPER
$8.97¢4 488
#28
CYL. COMP., 3
$539.52¢269 763
#29
SPRING, VALVE
$7.95¢3 975
#30
VALVE
$11.10¢5 550
#31
PLUNGER
No Disponible
#32
BOLT, CAP 2
$379.09¢189 544
#33
O-RING
$7.46¢3 731
#34
NUT, SPECIAL
$14.20¢7 100
#35
PLATE, VALVE 2
$8.03¢4 013
#36
SEAT, SPRING LOWER
$4.40¢2 200
#37
SPRING, FRONT FORK
No Disponible
#38
SEAT, SPRING UPPER
$3.79¢1 894
#39
SPACER
$10.30¢5 150
#40
BOLT, HEXAGON SOCKET HEAD
$2.94¢1 469
#41
UNDER BRACKET COMP.
$708.74¢354 369
#42
BOLT, HEXAGON SOCKET HEAD
$2.73¢1 363
#43
PROTECTOR
$14.59¢7 294
#44
FORK SEAL KIT
$45.39¢22 694
