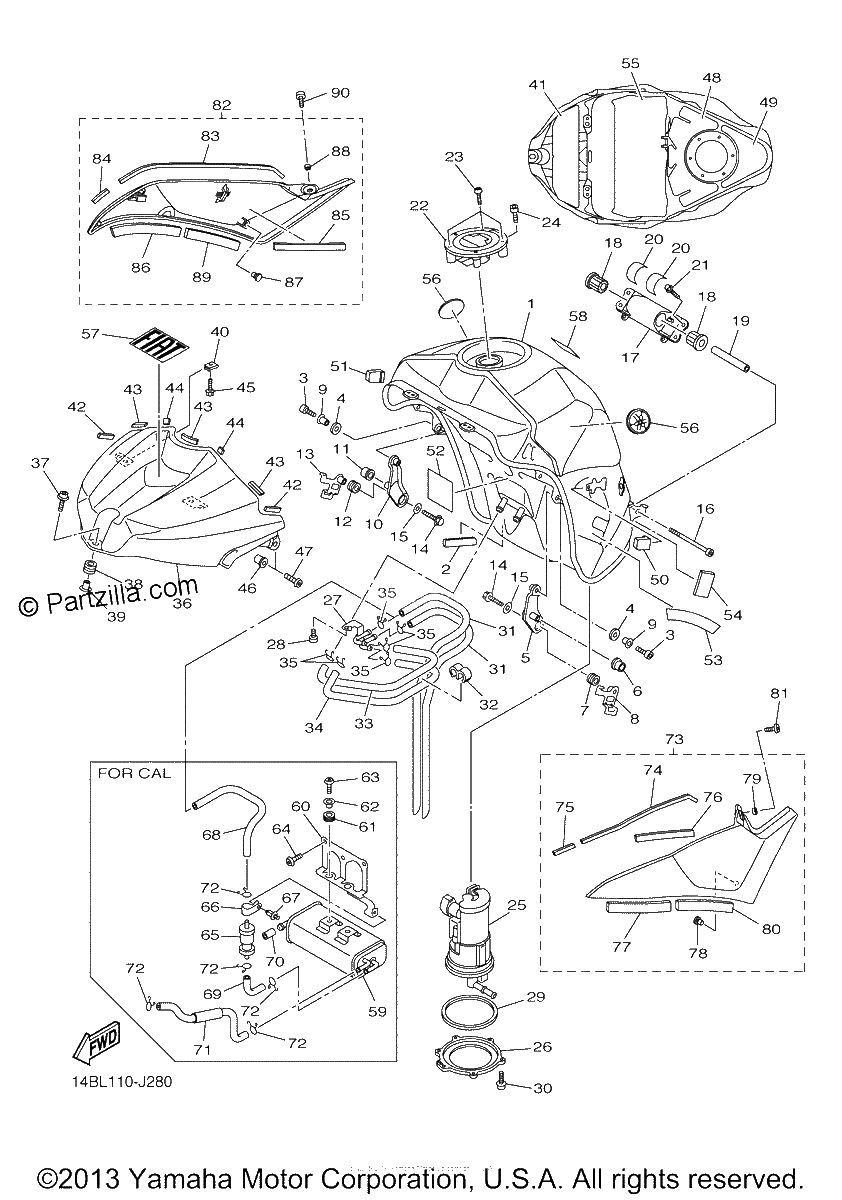

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
PIPE 3 | FOR CALIFORNIA
$31.66¢15 831
#1
FUEL TANK COMP. | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
No Disponible
#2
MOLD, FUEL TANK
$21.23¢10 613
#3
BOLT
$5.84¢2 919
#4
DAMPER, LOCATING 3
$7.77¢3 887
#5
BRACKET, FUEL TANK 1
$53.60¢26 800
#6
DAMPER, LOCATING 1
$7.65¢3 825
#7
GROMMET
$11.70¢5 850
#8
HOLDER, CABLE
$16.21¢8 106
#9
COLLAR
$6.49¢3 244
#10
BRACKET, FUEL TANK 2
No Disponible
#11
DAMPER, LOCATING 1
$7.65¢3 825
#12
GROMMET
$11.70¢5 850
#13
HOLDER, CLUTCH CABLE
$15.88¢7 938
#14
BOLT, FLANGE
$1.68¢838
#15
WASHER, PLATE (replaces 90201-06063-00)
$7.49¢3 744
#16
BOLT, HEXAGON SOCKET HEAD
$6.70¢3 350
#17
BRACKET, TANK FITTING
$66.54¢33 269
#18
DAMPER, LOCATING 3
$7.65¢3 825
#19
COLLAR
$5.19¢2 594
#20
SEAL 2
No Disponible
#21
BOLT, HEXAGON SOCKET
$9.13¢4 563
#22
CAP ASSY
$270.61¢135 306
#23
BOLT, HEXAGON SOCKET HEAD
$8.91¢4 456
#24
BOLT
$5.86¢2 931
#25
FUEL PUMP COMP.
$562.71¢281 356
#26
BRACKET, FUEL PUMP
$43.83¢21 913
#27
CLAMP 1
$30.47¢15 237
#28
BOLT
$6.19¢3 094
#29
O-RING
$44.47¢22 237
#30
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
#31
PIPE 2 | FOR CALIFORNIA
$54.28¢27 138
#32
CLAMP
$7.36¢3 681
#33
PIPE 3
$12.84¢6 419
#34
PIPE 4
No Disponible
#35
Clip
$2.97¢1 487
#36
COVER, TOP | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$642.49¢321 244
#37
BOLT, HEXAGON SOCKET HEAD
$7.43¢3 713
#38
GROMMET
$7.43¢3 713
#39
COLLAR
$8.30¢4 150
#39
DAMPER, PLATE 3
$8.41¢4 206
#40
NUT, SPRING
$8.85¢4 425
#41
DAMPER, PLATE 1
$10.93¢5 463
#42
DAMPER, LOCATING 2
$7.70¢3 850
#43
DAMPER, LOCATING 1
$7.86¢3 931
#44
DAMPER, LOCATING 1
$7.95¢3 975
#45
BOLT, WITH WASHER (replaces 90119-05016-00)
$7.34¢3 669
#46
NUT
$6.78¢3 388
#47
SCREW, BIND
$1.44¢719
#48
DAMPER, PLATE 4
$56.15¢28 075
#49
DAMPER, PLATE 5
$42.40¢21 200
#50
DAMPER, SIDE COVER
$7.65¢3 825
#51
DAMPER, SIDE COVER
$7.65¢3 825
#52
DAMPER
$7.95¢3 975
#54
SEAL
$10.18¢5 088
#55
DAMPER, PLATE
$10.85¢5 425
#56
EMBLEM 3D
$52.73¢26 363
#57
EMBLEM 1
No Disponible
#58
LABEL, CAUTION
$7.85¢3 925
#59
CANISTER ASSY | FOR CALIFORNIA
$362.29¢181 144
#60
BRACKET, CANISTOR | FOR CALIFORNIA
$61.28¢30 638
#61
GROMMET
$7.43¢3 713
#62
COLLAR | FOR CALIFORNIA
$6.76¢3 381
#63
BOLT, BUTTON HEAD
$7.41¢3 706
#64
BOLT, HEX. SOCKET BUTTON
$5.15¢2 575
#65
ROLL OVER VALVE ASSY | FOR CAL
$62.61¢31 306
#66
Clamp
$2.35¢1 175
#67
RIVET
$2.71¢1 356
#68
PIPE 5 | FOR CALIFORNIA
$29.82¢14 913
#69
PIPE 6 | FOR CALIFORNIA
$12.90¢6 450
#70
HOSE (L70)
$6.94¢3 469
#71
PIPE | FOR CALIFORNIA
$27.83¢13 913
#72
Clip
$2.97¢1 487
#73
TANK SIDE COVER ASSY 1
$145.81¢72 906
#74
DAMPER, PLATE 1
$7.86¢3 931
#75
DAMPER, PLATE 2
$7.95¢3 975
#76
DAMPER, PLATE
$1.44¢719
#77
DAMPER, PLATE 2
$6.55¢3 275
#78
PLUG
$6.76¢3 381
#79
SPACER
$4.59¢2 294
#80
DAMPER, PLATE
$3.89¢1 944
#81
SCREW, BIND
$1.46¢731
#82
TANK SIDE COVER ASSY 2
$159.51¢79 756
#83
DAMPER, PLATE 1
$7.86¢3 931
#84
DAMPER, PLATE 2
$7.95¢3 975
#85
DAMPER, PLATE
$1.44¢719
#86
DAMPER, PLATE 2
$6.55¢3 275
#87
PLUG
$6.76¢3 381
#88
SPACER
$4.59¢2 294
#89
DAMPER, PLATE
$3.89¢1 944
#90
SCREW, BIND
$1.46¢731
