FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

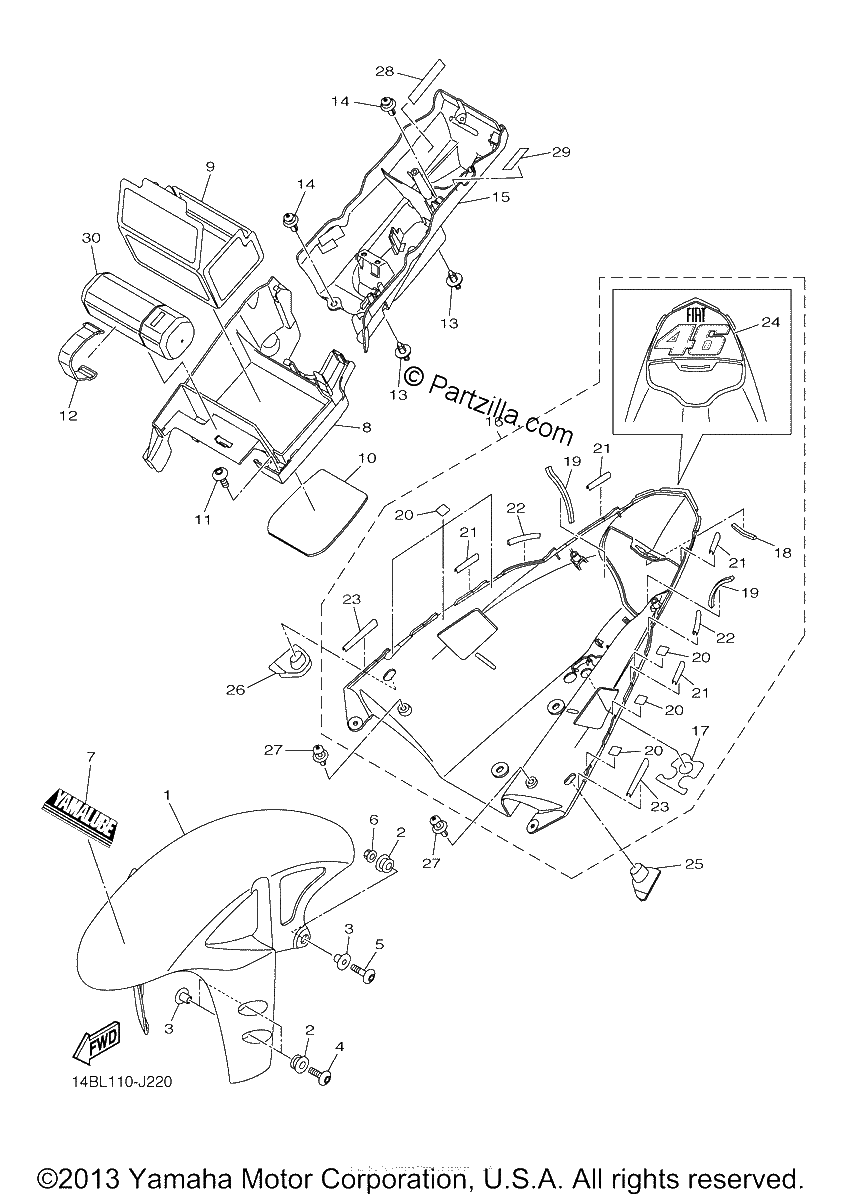

Diagrama de FENDER

Repuestos

#1
14B-21511-00-P2
FENDER, FRONT | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$250.56¢125 281
1
#2
90480-12072-00
GROMMET
$7.94¢3 969
1
#3
90387-06159-00
Collar
$7.60¢3 800
1
#4
90111-06043-00
BOLT, HEX. SOCKET BUTTON
$3.96¢1 981
1
#5
90111-06030-00
BOLT, HEX. SOCKET BUTTON
$3.98¢1 988
1
#6
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
#7
14B-21578-00-00
EMBLEM
No Disponible
1
#8
14B-8212B-00-00
BOX, BATTERY 1
$56.06¢28 031
1
#9
14B-82122-00-00
SEAT, BATTERY
$70.88¢35 438
1
#10
14B-82176-00-00
DAMPER
$16.74¢8 369
1
#11
90149-06302-00
SCREW
$5.11¢2 556
1
#12
5JJ-82131-00-00
BAND, BATTERY
$13.70¢6 850
1
#13
90269-07077-00
RIVET
$8.25¢4 125
1
#14
90269-07012-00
RIVET
$3.25¢1 625
1
#15
14B-8212C-00-00
BOX, BATTERY 2
$21.11¢10 556
1
#16
14B-21600-00-P1
REAR FENDER ASSY. | Use for Color BLUISH WHITE COCKTAIL 1 ( BWC1 / 0390 )
$219.30¢109 650
1
#17
14B-21669-00-00
SEAL
$8.30¢4 150
1
#18
4GY-2174X-00-00
DAMPER
$7.95¢3 975
1
#19
3CV-28372-00-00
DAMPER
$4.60¢2 300
1
#20
4C8-21735-00-00
SEAL 2
$7.95¢3 975
1
#21
5VY-21732-00-00
SEAL 1
$8.03¢4 013
1
#22
5PW-21732-00-00
SEAL 1
$4.60¢2 300
1
#23
14B-21732-00-00
SEAL 1
$5.06¢2 531
1
#24
14B-21737-00-00
EMBLEM
No Disponible
1
#25
14B-21639-00-00
DAMPER 2
$74.70¢37 350
1
#26
14B-21649-00-00
DAMPER
$74.70¢37 350
1
#27
90269-07076-00
RIVET,SPEC'L SHAPE
$7.13¢3 563
1
#28
3JJ-28446-A1-00
LABEL, CAUTION
$4.94¢2 469
1
#29
4BR-24877-A0-00
LABEL, CAUTION
$16.32¢8 163
1
#30
14B-28100-00-00
TOOL KIT
$134.04¢67 019
1
