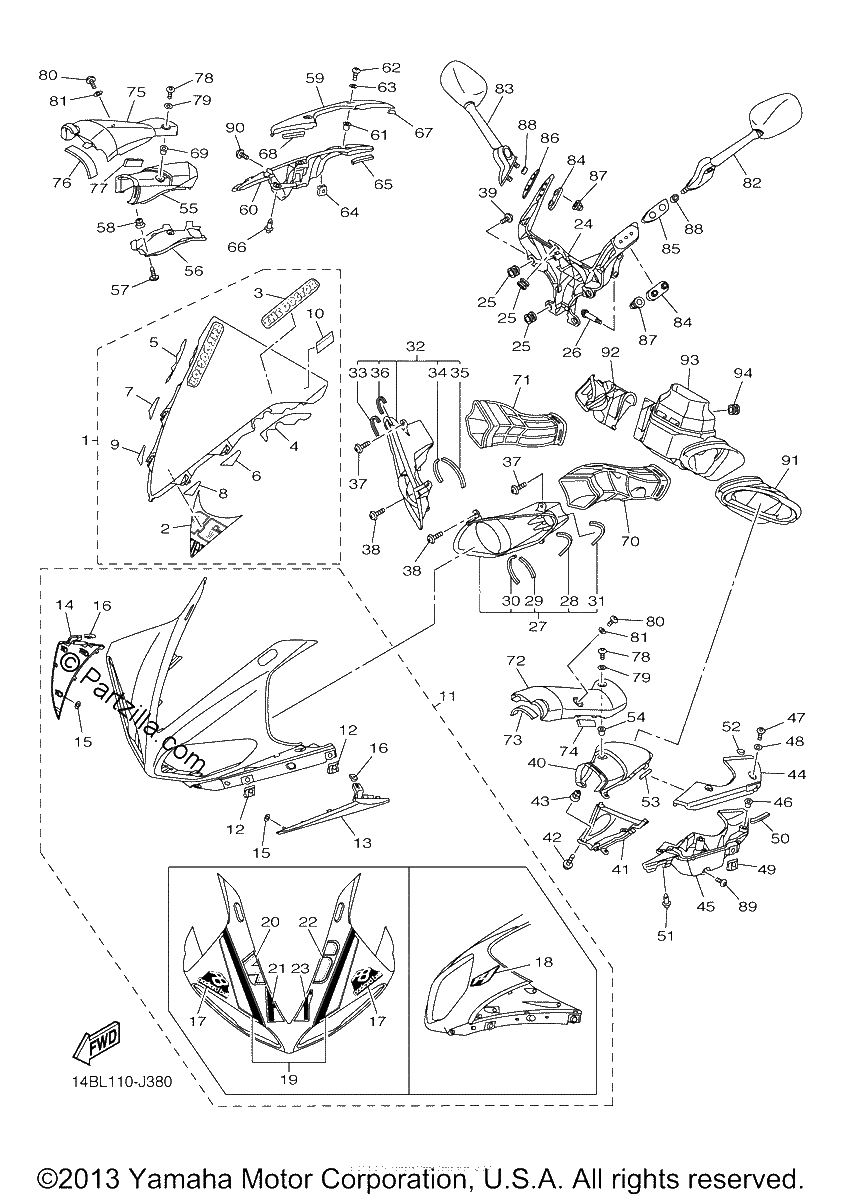

COWLING 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
SCREEN SUB ASSY
No Disponible
#2
GRAPHIC
$114.86¢57 431
#3
EMBLEM
No Disponible
#4
SEAL 1
$12.64¢6 319
#5
SEAL 2
No Disponible
#6
SEAL 3
$6.19¢3 094
#7
SEAL 4
$6.14¢3 069
#8
SEAL 5
$5.74¢2 869
#9
SEAL 6
$5.74¢2 869
#10
LABEL, NOTICE WINDSHIELD 1
$8.92¢4 462
#11
BODY, FRONT UPPER 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
No Disponible
#12
PLATE, SPRING
$7.41¢3 706
#13
COVER 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$97.39¢48 694
#14
COVER 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$105.63¢52 813
#15
NUT, SPRING
$0.50¢250
#16
NUT, SPRING
$2.82¢1 412
#17
EMBLEM 2
No Disponible
#18
EMBLEM 1
$15.14¢7 569
#19
GRAPHIC SET 1, COWLING
$47.31¢23 656
#20
GRAPHIC, 4
No Disponible
#21
GRAPHIC, 5
No Disponible
#22
GRAPHIC, 6
No Disponible
#23
GRAPHIC, 7
No Disponible
#24
STAY 1
$259.13¢129 563
#25
DAMPER
$7.63¢3 813
#26
BOLT, FLANGE
$7.52¢3 762
#27
GRILL ASSY
$52.27¢26 138
#28
DAMPER
$0.96¢481
#29
SEAL 4
$9.60¢4 800
#30
DAMPER, PLATE
$0.96¢481
#31
DAMPER 5
$3.89¢1 944
#32
GRILL ASSY
$52.27¢26 138
#33
DAMPER
$0.96¢481
#34
SEAL 4
$9.60¢4 800
#35
DAMPER, PLATE
$0.96¢481
#36
DAMPER 5
$3.89¢1 944
#37
SCREW, ROUND TAPPING
$7.63¢3 813
#38
SCREW, TRUSS HEAD TAPPING
$3.85¢1 925
#39
SCREW, ROUND TAPPING
$7.43¢3 713
#39
DAMPER, PLATE
$7.79¢3 894
#40
DUCT 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$111.94¢55 969
#41
DUCT 3
$14.65¢7 325
#42
SCREW, TRUSS HEAD TAPPING
$3.85¢1 925
#43
GROMMET
$7.48¢3 738
#44
LID 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$102.86¢51 431
#45
BOX 3
$25.45¢12 725
#46
NUT
$6.78¢3 388
#47
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#48
WASHER, PLATE
$7.66¢3 831
#49
PLATE, SPRING
$7.41¢3 706
#50
SEAL 4
$9.60¢4 800
#51
RIVET
$8.25¢4 125
#52
DAMPER, PLATE
$7.71¢3 856
#54
NUT
$6.78¢3 388
#55
DUCT 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$172.69¢86 344
#56
DUCT 4
$14.65¢7 325
#57
SCREW, TRUSS HEAD TAPPING
$3.85¢1 925
#58
GROMMET
$7.48¢3 738
#59
LID 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$102.86¢51 431
#60
BOX 4
$14.65¢7 325
#61
NUT
$6.78¢3 388
#62
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#63
WASHER, PLATE
$7.66¢3 831
#64
PLATE, SPRING
$7.41¢3 706
#65
SEAL 4
$9.60¢4 800
#66
RIVET
$8.25¢4 125
#67
DAMPER, PLATE
$7.71¢3 856
#68
DAMPER, PLATE
$7.79¢3 894
#69
NUT
$6.78¢3 388
#70
DUCT 5
$36.88¢18 438
#71
DUCT 6
$34.40¢17 200
#72
PANEL, CONSOLE 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$134.60¢67 300
#73
DAMPER, 3
$7.95¢3 975
#74
SEAL 1
$10.51¢5 256
#75
PANEL, CONSOLE 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$200.41¢100 206
#76
DAMPER, 3
$7.95¢3 975
#77
SEAL 1
$10.51¢5 256
#78
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#79
WASHER, PLATE
$7.66¢3 831
#80
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#81
WASHER, PLATE
$7.66¢3 831
#82
REAR VIEW MIRROR ASSY (LEFT)
$155.65¢77 825
#83
REAR VIEW MIRROR ASSY (RIGHT)
$155.65¢77 825
#84
PLATE, MIRROR FITTING 1
$7.65¢3 825
#85
BASE, MIRROR (LEFT)
$5.66¢2 831
#86
BASE, MIRROR (RIGHT)
$5.66¢2 831
#87
NUT, CROWN
$4.76¢2 381
#88
COLLAR (J45)
$5.93¢2 963
#89
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#90
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#91
BOX, SIDE 1
$45.69¢22 844
#92
BOX, SIDE 2
$58.38¢29 188
#93
BOX, FRONT
$111.54¢55 769
#94
GROMMET
$4.63¢2 313
