EXHAUST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

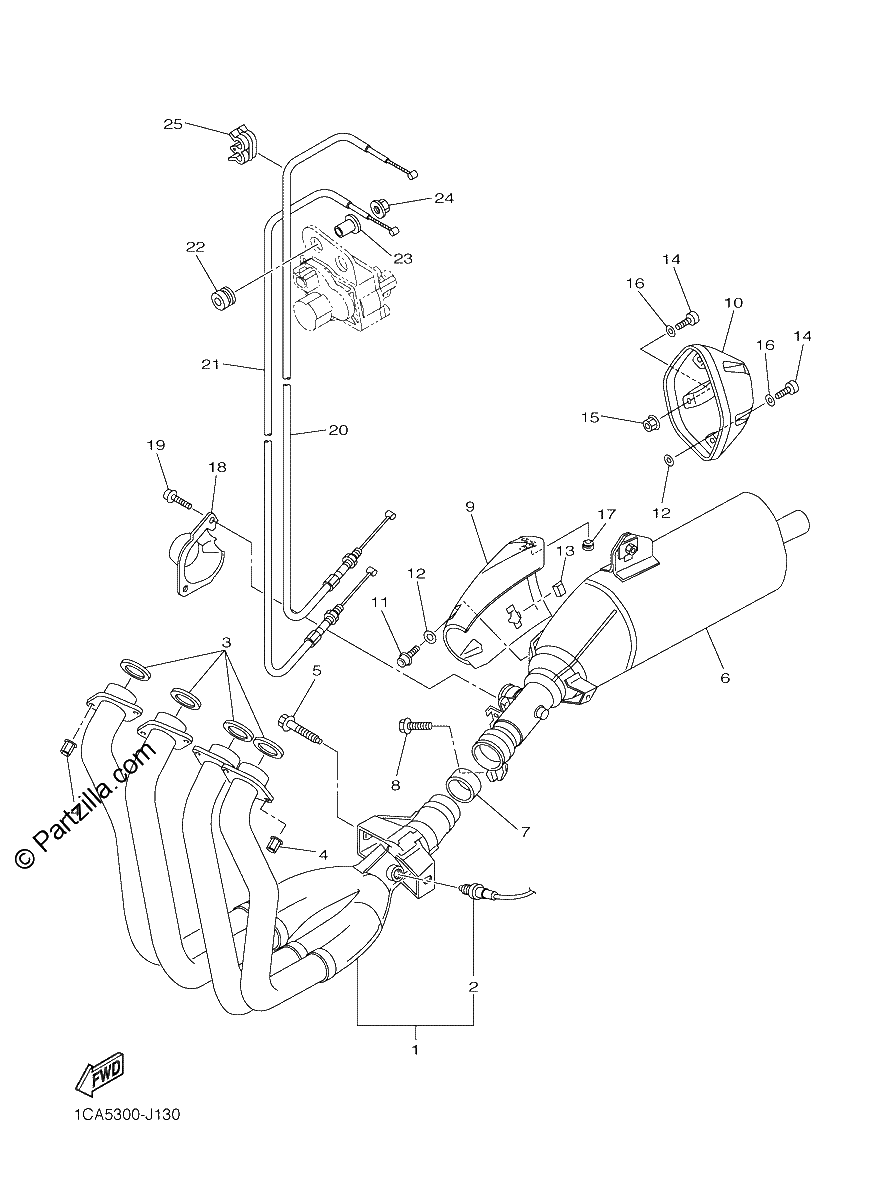

Diagrama de EXHAUST

Repuestos

#1
2D1-14602-10-00
EXHAUST PIPE COMP.
$1976.24¢988 119
1
#2
2D1-8592A-00-00
SENSOR, OXYGEN
$447.24¢223 619
1
#3
4FM-14613-00-00
GASKET, EXHAUST PIPE
$12.75¢6 375
1
#4
90179-08410-00
NUT
$5.99¢2 994
1
#5
90109-08170-00
BOLT
$6.14¢3 069
1
#6
2D1-14703-10-00
MUFFLER COMP. 1
$1851.24¢925 619
1
#7
5VY-14755-00-00
GASKET, SILENCER
$42.51¢21 256
1
#8
95814-08030-00
BOLT, FLANGE
$7.48¢3 738
1
#9
2D1-14718-20-00
PROTECTOR, MUFFLER 1
$407.76¢203 881
1
#10
2D1-14799-10-00
CAP
$313.75¢156 875
1
#11
90111-06060-00
BOLT HEX. SOCKET BUTTON
$4.59¢2 294
1
#12
90201-05017-00
WASHER, PLATE
$7.48¢3 738
1
#13
3MA-24181-00-00
DAMPER, LOCATING 1
$7.77¢3 887
1
#14
91380-06014-00
BOLT
$2.64¢1 319
1
#15
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
#16
92990-06600-00
WASHER, PLATE
$3.40¢1 700
1
#17
2D1-14737-00-00
DAMPER, MUFFLER
$6.06¢3 031
1
#18
2D1-14826-00-00
PROTECTOR, EXHAUST
$71.35¢35 675
1
#19
90110-06110-00
BOLT, HEXAGON SOCKET HEAD
$6.38¢3 188
1
#20
2D1-1133E-01-00
CABLE, PULLEY 1
$82.65¢41 325
1
#21
2D1-1133F-11-00
CABLE, PULLEY 2
$80.85¢40 425
1
#22
90480-14604-00
GROMMET
$8.84¢4 419
1
#23
90387-06M60-00
COLLAR
$8.14¢4 069
1
#24
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
#25
90464-04001-00
CLAMP
$6.42¢3 213
1
