FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

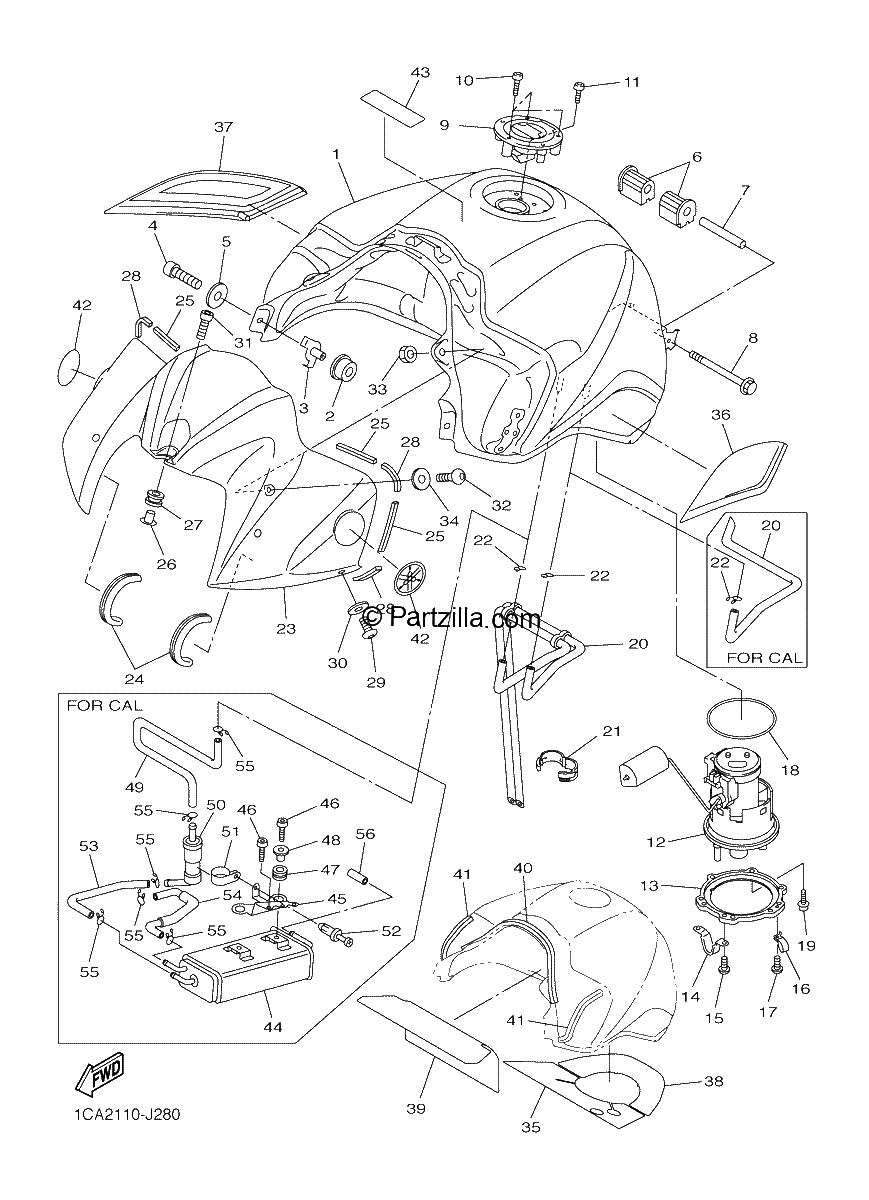

Diagrama de FUEL TANK

Repuestos

#1
2D1-YK241-00-P4
FUEL TANK COMP. (DEEP RED METALLIC K) *{UR FOR DRMK}*
$1312.14¢656 069
1
#2
5VY-24181-00-00
DAMPER, LOCATING 1
$7.04¢3 519
1
#3
2D1-2412G-00-00
COLLAR
$25.36¢12 679
1
#4
91312-06016-00
BOLT
$5.37¢2 685
1
#5
90201-06086-00
WASHER, PLATE
$6.43¢3 214
1
#6
5VX-24181-00-00
DAMPER, LOCATING 1
$13.87¢6 935
1
#7
90387-061W6-00
COLLAR
$7.44¢3 720
1
#8
91312-06090-00
bolt
$6.75¢3 375
1
#9
5JJ-24602-00-00
CAP ASSY
$248.96¢124 482
1
#10
90110-05112-00
BOLT, HEXAGON SOCKET HEAD
$8.20¢4 100
1
#11
91312-05010-00
BOLT
$5.39¢2 697
1
#12
2D1-13907-02-00
FUEL PUMP COMP.
$682.69¢341 343
1
#13
2D1-24491-00-00
Bracket, Fuel Pump
$44.61¢22 304
1
#14
2D1-24192-00-00
BRACKET, FUEL TANK 2
$12.45¢6 227
1
#15
98902-05008-00
SCREW, BIND
$1.35¢673
1
#16
90461-10010-00
CLAMP
$5.05¢2 524
1
#17
90154-05035-00
SCREW, BINDING
$1.35¢673
1
#18
5JW-24486-00-00
O-Ring
$40.92¢20 458
1
#19
90110-05028-00
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
1
#20
3C3-24317-00-00
PIPE 7 | FOR CALIFORNIA
$50.93¢25 467
1
#22
90467-09006-00
CLIP, SCISSOR | FOR CAL
$2.74¢1 368
1
#23
3C3-2171A-00-P2
COVER, TOP (DEEP RED METALLIC K) *{UR FOR DRMK}*
$243.62¢121 808
1
#24
2D1-28345-01-00
MOLE 1
$5.44¢2 720
1
#25
4XV-2834E-00-00
DAMPER 3
$2.97¢1 483
1
#26
90387-06222-00
COLLAR
$6.05¢3 024
1
#27
90480-12314-00
GROMMET
$3.10¢1 553
1
#28
2D1-24181-00-00
DAMPER, LOCATING 1
$7.31¢3 657
1
#29
90111-05019-00
BOLT, HEX. SOCKET BUTTON
$6.92¢3 461
1
#30
90202-05224-00
WASHER, PLATE
$6.83¢3 415
1
#31
90110-06233-00
BOLT, HEXAGON SOCKET HEAD
$6.83¢3 415
1
#32
90111-05024-00
BOLT, HEX. SOCKET BUTTON
$3.91¢1 955
1
#33
90179-05003-00
NUT
$5.37¢2 685
1
#34
90202-05088-00
WASHER, PLATE
$6.70¢3 352
1
#35
2D1-2414N-00-00
DAMPER, PLATE 4
$41.76¢20 878
1
#36
2D1-24106-00-00
TANK SIDE COVER ASSY 1
$29.73¢14 864
1
#37
2D1-24108-00-00
TANK SIDE COVER ASSY 2
$29.73¢14 864
1
#38
2D1-2414K-00-00
DAMPER, plate 3
$24.25¢12 127
1
#39
2D1-2414H-00-00
DAMPER, PLATE 1
$51.41¢25 703
1
#40
2D1-2414P-00-00
DAMPER, PLATE 5
$9.48¢4 738
1
#41
2D1-2414R-00-00
DAMPER, PLATE 6
$7.28¢3 640
1
#42
5SL-2413B-00-00
EMBLEM
$24.39¢12 196
1
#43
5GK-2118K-00-00
LABEL, CAUTION
$5.37¢2 685
1
#44
3C3-24170-00-00
CANISTER ASSY | FOR CALIFORNIA
$434.93¢217 465
1
#45
3C3-24216-00-00
STAY | FOR CALIFORNIA
$180.90¢90 448
1
#46
92012-06016-00
BOLT, BUTTON HEAD
$6.82¢3 410
1
#47
90480-13018-00
GROMMET
$6.83¢3 415
1
#48
90387-062L2-00
COLLAR | FOR CALIFORNIA
$6.22¢3 111
1
#49
3C3-24313-00-00
PIPE 3 | FOR CALIFORNIA
$47.92¢23 960
1
#50
5RB-24180-00-00
ROLL OVER VALVE ASSY
$113.10¢56 551
1
#51
90461-15139-00
CLAMP *{FOR CAL}*
$2.16¢1 081
1
#52
90269-05001-00
RIVET
$2.50¢1 248
1
#53
3C3-24314-00-00
PIPE 4 | FOR CALIFORNIA
$34.94¢17 469
1
#54
3C3-1443J-01-00
PIPE | FOR CALIFORNIA
$37.95¢18 975
1
#55
90467-09006-00
CLIP, SCISSOR | FOR CAL
$2.74¢1 368
1
#56
90445-11418-00
HOSE (L18) *{FOR CALIFORNIA}*
$6.38¢3 191
1
