WATER PUMP

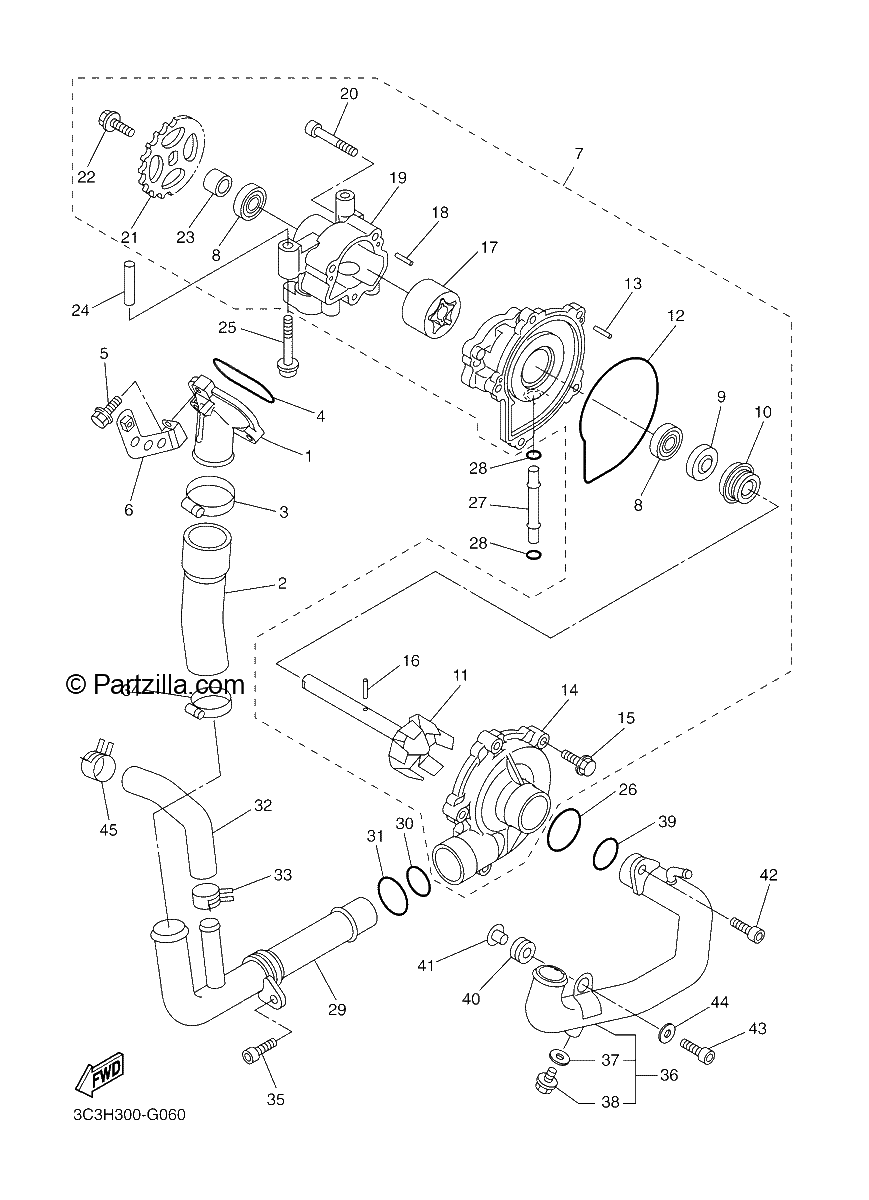

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
JOINT 1
$87.90¢43 950
#2
HOSE 1
$29.55¢14 775
#3
HOSE CLAMP ASSY
$18.77¢9 388
#4
O-RING
$6.60¢3 300
#5
Bolt, Flange
$3.06¢1 531
#6
STAY 1
$17.01¢8 506
#7
WATER PUMP ASSY
$581.54¢290 769
#8
. Bearing
$30.26¢15 131
#9
OIL SEAL
$11.68¢5 838
#10
SEAL, MECHANICAL
$51.06¢25 531
#11
IMPELLER SHAFT ASSY
$111.51¢55 756
#12
O-RING
$15.43¢7 713
#13
PIN, DOWEL
$1.96¢981
#14
COVER, HOUSING
$94.08¢47 038
#15
BOLT, FLANGE
$4.44¢2 219
#16
PIN, DOWEL
$3.71¢1 856
#17
ROTOR ASSY 1
$70.51¢35 256
#18
PIN, DOWEL
$1.96¢981
#19
HOUSING, ROTOR
$96.08¢48 038
#20
BOLT
$7.52¢3 762
#21
SPROCKET, DRIVEN
$27.61¢13 806
#22
BOLT, FLANGE
$7.49¢3 744
#23
WASHER
No Disponible
#24
PIN, DOWEL
$6.74¢3 369
#25
BOLT, HEXAGON SOCKET HEAD
$4.75¢2 375
#26
O-RING
$11.09¢5 544
#27
PIPE 5
$10.39¢5 194
#28
O-RING
$6.91¢3 456
#29
PIPE 1
$231.15¢115 575
#30
O-RING
$6.85¢3 425
#31
O-RING
$8.21¢4 106
#32
HOSE 5
$18.90¢9 450
#33
CLIP
$9.45¢4 725
#34
HOSE CLAMP ASSY
$16.85¢8 425
#35
BOLT (4MY)
$1.46¢731
#36
PIPE 4
$184.26¢92 131
#37
GASKET
$8.25¢4 125
#38
SCREW, HEXAGON
$7.49¢3 744
#39
O-RING
$6.85¢3 425
#40
GROMMET
$6.42¢3 213
#41
COLLAR
$7.86¢3 931
#42
BOLT (4MY)
$1.46¢731
#43
BOLT, HEXAGON SOCKET HEAD
$2.44¢1 219
#44
WASHER, PLATE
$7.71¢3 856
#45
CLIP
$9.45¢4 725
