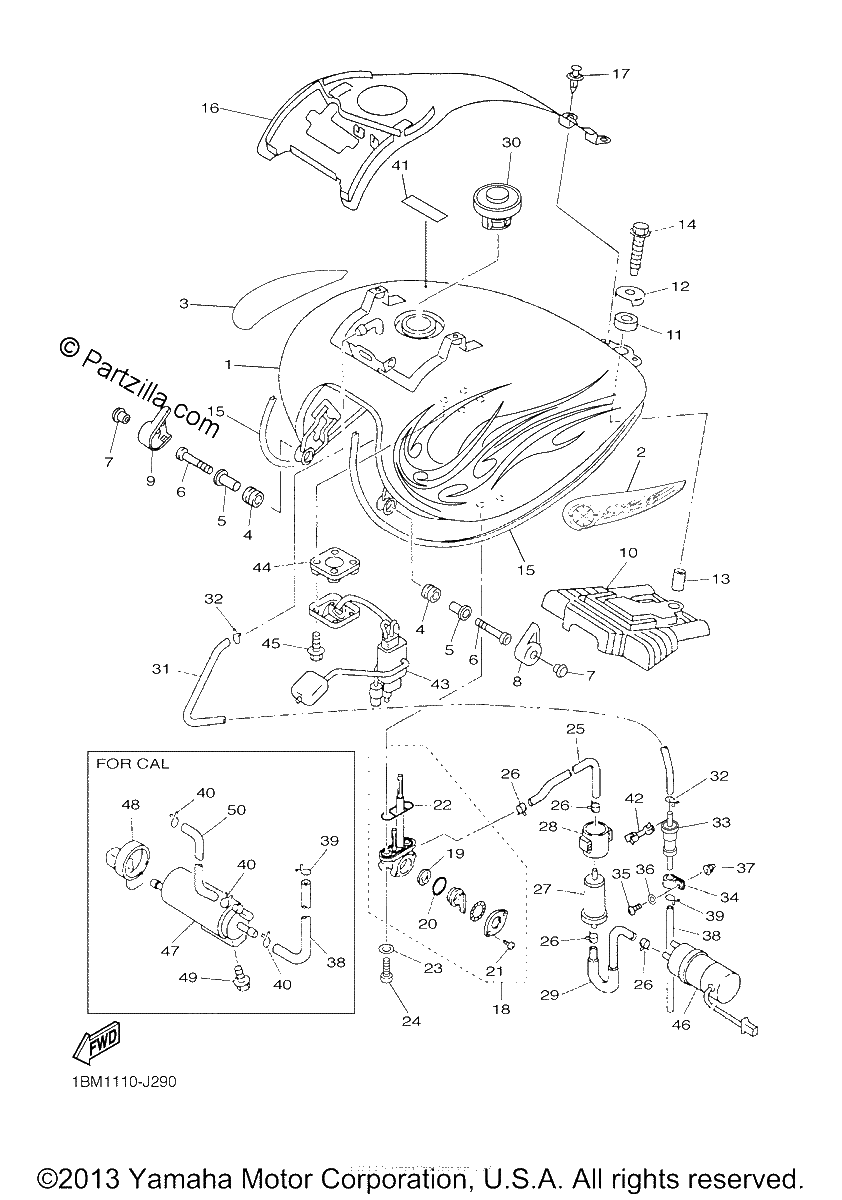

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FUEL TANK COMP. | Use for Color Black Metallic X ( SMX / 0903 )
$1738.74¢869 369
#2
EMBLEM
$207.71¢103 856
#3
EMBLEM
$230.88¢115 438
#4
Grommet
$10.50¢5 250
#5
COLLAR
$7.41¢3 706
#6
BOLT
$4.17¢2 088
#7
PLUG
$7.46¢3 731
#8
COVER, SIDE 1
$17.27¢8 638
#9
COVER, SIDE 2
$17.27¢8 638
#10
DAMPER, LOCATING 2
$36.99¢18 494
#11
DAMPER, LOCATING 3
$8.26¢4 131
#12
WASHER, SPECIAL
$11.04¢5 519
#13
COLLAR
$5.22¢2 613
#14
BOLT
$8.39¢4 194
#15
MOLD, FUEL TANK
$34.52¢17 263
#16
COVER, TOP
$177.80¢88 900
#17
RIVET,SPEC'L SHAPE
$7.13¢3 563
#18
FUEL COCK ASSY 1
$172.65¢86 325
#19
VALVE PACKING
$13.81¢6 906
#20
SEAL, COCK
$11.10¢5 550
#21
SCREW, PAN HEAD
$2.73¢1 363
#22
O-RING
$7.97¢3 988
#23
WASHER, PLATE
$1.57¢788
#24
SCREW,SPEC'L SHAPE
$1.95¢975
#25
PIPE, FUEL 1
$121.14¢60 569
#26
CLIP,SCISSOR (replaces 90467-12053-00)
$6.25¢3 125
#27
FILTER ASSY
$34.93¢17 463
#28
BRACKET, FILTER
$26.24¢13 119
#29
PIPE 2
$75.17¢37 588
#30
CAP ASSY
$136.76¢68 381
#31
PIPE 10
$96.80¢48 400
#32
Clip
$2.26¢1 131
#33
ROLL OVER VALVE ASSY | FOR CAL
$62.61¢31 306
#34
Clamp
$2.35¢1 175
#35
SCREW, PAN HEAD
$4.65¢2 325
#36
WASHER, PLATE
$0.96¢481
#37
NUT,CROWN
$7.13¢3 563
#38
HOSE (L400)
$25.15¢12 575
#39
CLIP | FOR CALIFORNIA
$7.60¢3 800
#40
CLIP | FOR CALIFORNIA
$7.60¢3 800
#41
LABEL, CAUTION
$5.84¢2 919
#42
CLAMP
$4.70¢2 350
#43
SENDER UNIT ASSY, FUEL METER
$111.42¢55 713
#44
GASKET, SENDER UNIT
$17.96¢8 981
#45
BOLT, WITH WASHER
$7.77¢3 887
#46
FUEL PUMP COMP.
$257.24¢128 619
#47
CANISTER ASSY | FOR CALIFORNIA
No Disponible
#48
COVER, CANISTER | FOR CALIFORNIA
$53.96¢26 981
#49
BOLT,FLANGE (replaces 95827-06010-00)
$4.65¢2 325
#50
HOSE (L560) | FOR CALIFORNIA
$36.23¢18 113
