WATER PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

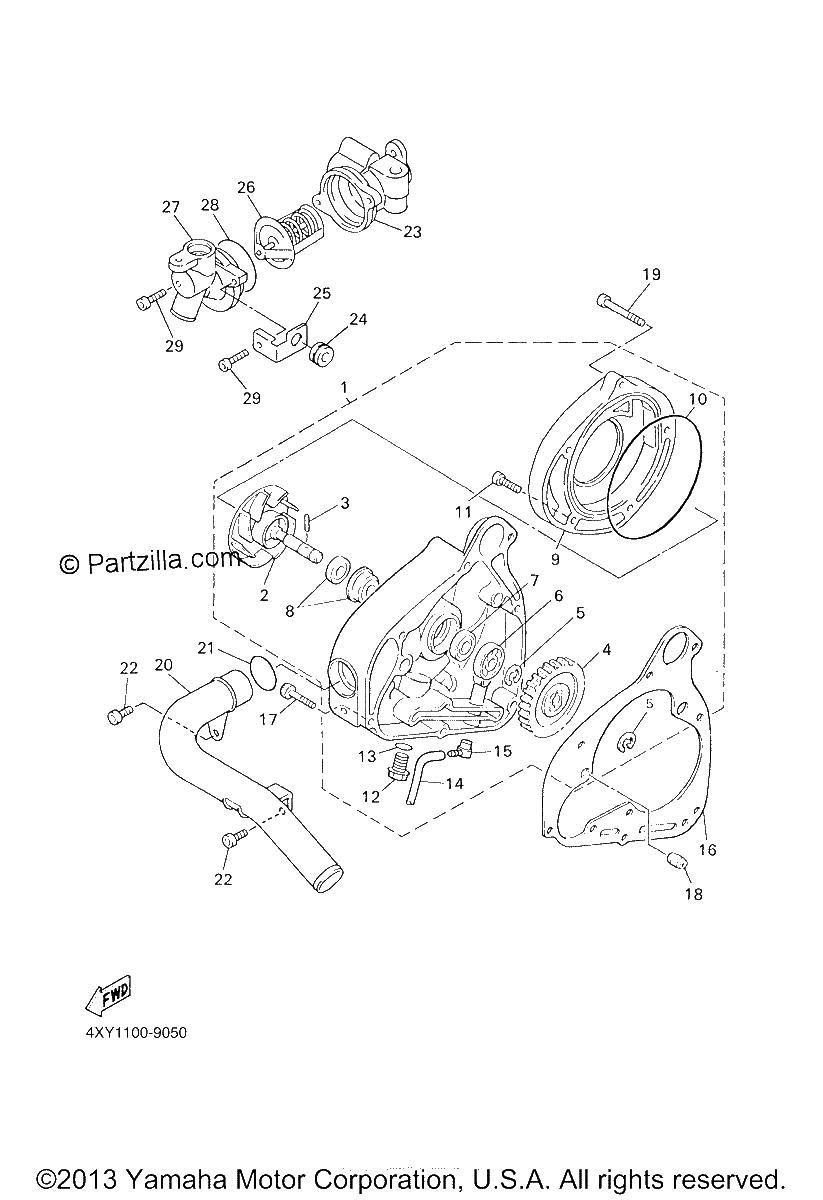

Diagrama de WATER PUMP

Repuestos

#1
4NK-12420-03-00
WATER PUMP ASSY
$1245.47¢622 738
1
#2
1FK-12450-00-00
IMPELLER SHAFT ASSY
$143.81¢71 906
1
#3
93603-14026-00
PIN, DOWEL
$7.65¢3 825
1
#4
26H-12459-00-00
GEAR, IMPELLER SHAFT (31T)
$52.76¢26 381
1
#5
99009-10400-00
CIRCLIP
$4.65¢2 325
1
#6
93306-00004-00
BEARING
$38.96¢19 481
1
#7
93101-10090-00
OIL SEAL
$7.34¢3 669
1
#8
11H-12438-10-00
SEAL, MECHANICAL
$62.31¢31 156
1
#9
4NK-Y124E-02-00
COVER, HOUSING
$418.79¢209 394
1
#10
93211-16591-00
O-RING
$15.43¢7 713
1
#11
91314-06030-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#12
90340-14132-00
PLUG, STRAIGHT SCREW
$3.15¢1 575
1
#13
214-11198-01-00
GASKET
$3.23¢1 613
1
#14
90445-05N13-00
HOSE (L200)
$7.34¢3 669
1
#15
353-13552-01-00
NOZZLE
$10.39¢5 194
1
#16
4NK-12449-00-00
GASKET, WATER PUMP
$21.74¢10 869
1
#17
91314-06025-00
BOLT, HEXAGON SOCKET HEAD
$7.94¢3 969
1
#18
99530-10014-00
PIN, DOWEL
$2.71¢1 356
1
#19
91314-06080-00
BOLT, HEXAGON SOCKET HEAD
$4.05¢2 025
1
#20
4XY-12483-00-00
PIPE 3
$52.93¢26 463
1
#21
93210-23787-00
O-RING
$7.65¢3 825
1
#22
91314-06014-00
BOLT, HEXAGON SOCKET HEAD
$4.20¢2 100
1
#23
4XY-12417-00-00
HOUSING, THERMOSTAT
$160.66¢80 331
1
#24
90480-10517-00
GROMMET
$7.94¢3 969
1
#25
4XY-1244E-00-00
BRACKET 1
$15.55¢7 775
1
#26
1AE-12410-00-00
THERMOSTAT ASSY
$40.65¢20 325
1
#27
4XY-12413-00-00
COVER, THERMOSTAT
$125.85¢62 925
1
#28
93210-49046-00
O-RING
$6.99¢3 494
1
#29
91317-06020-00
BOLT (4FL)
$2.60¢1 300
1
