ELECTRICAL 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

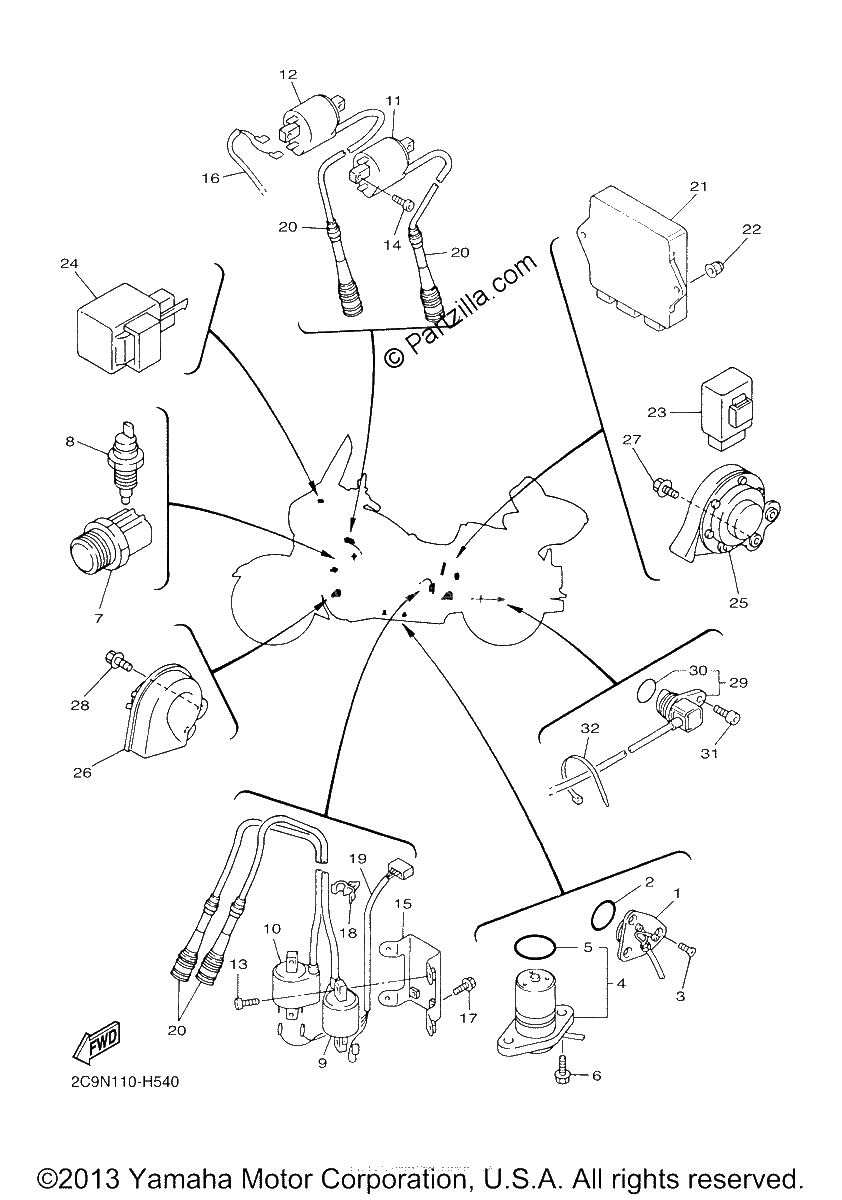

Diagrama de ELECTRICAL 2

Repuestos

#1
4WY-82540-00-00
NEUTRAL SWITCH ASSY
$97.69¢48 844
1
#2
93210-29196-00
O-RING
$7.69¢3 844
1
#3
90149-05245-00
SCREW
$7.35¢3 675
1
#4
4XY-85720-00-00
OIL LEVEL GAUGE ASSY
$176.44¢88 219
1
#5
4XV-8A8E0-00-00
O-RING
$15.10¢7 550
1
#6
90105-06696-00
BOLT, FLANGE
$7.48¢3 738
1
#7
5EB-82560-00-00
THERMO SWITCH ASSY
$47.27¢23 638
1
#8
3YX-82560-00-00
THERMO SWITCH ASSY
$86.05¢43 025
1
#9
4XY-82310-00-00
IGNITION COIL ASSY
$192.60¢96 300
1
#10
4XY-82310-10-00
IGNITION COIL ASSY
$192.60¢96 300
1
#11
4XY-82320-10-00
IGNITION COIL ASSY
$170.25¢85 125
1
#12
4XY-82320-00-00
IGNITION COIL ASSY
$170.52¢85 262
1
#13
91317-05016-00
BOLT
$2.95¢1 475
1
#14
97017-05016-00
BOLT
$2.95¢1 475
1
#15
4NK-82316-00-00
BRACKET, IGNITION COIL
$28.35¢14 175
1
#16
4XY-82309-00-00
WIRE, SUB LEAD
$14.66¢7 331
1
#17
95817-06010-00
BOLT,FLANGE (replaces 95827-06010-00)
$4.65¢2 325
1
#18
90464-09130-00
CLAMP
$1.56¢781
1
#19
4NK-82509-00-00
WIRE, SUB LEAD
$16.44¢8 219
1
#20
4XY-82370-00-00
PLUG CAP ASSY
$86.41¢43 206
1
#21
4XY-82305-00-00
IGNITOR UNIT ASSY
$1351.85¢675 925
1
#22
90176-06065-00
NUT, CROWN
$8.24¢4 119
1
#23
4NK-83350-00-00
FLASHER RELAY ASSY
$102.13¢51 063
1
#24
3GM-83350-01-00
FLASHER RELAY ASSY
$94.49¢47 244
1
#25
4NK-83371-00-00
HORN
$157.56¢78 781
1
#26
4XY-83371-00-00
HORN
$85.65¢42 825
1
#27
90119-06217-00
BOLT,WITH WASHER
$6.25¢3 125
1
#28
95817-06010-00
BOLT,FLANGE (replaces 95827-06010-00)
$4.65¢2 325
1
#29
4NK-83755-01-00
SENSOR, SPEED
$238.23¢119 113
1
#30
4NK-85075-00-00
O-RING
$5.99¢2 994
1
#31
90109-08789-00
BOLT
$7.60¢3 800
1
#32
90464-15152-00
CLAMP
$5.19¢2 594
1
