REAR ARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

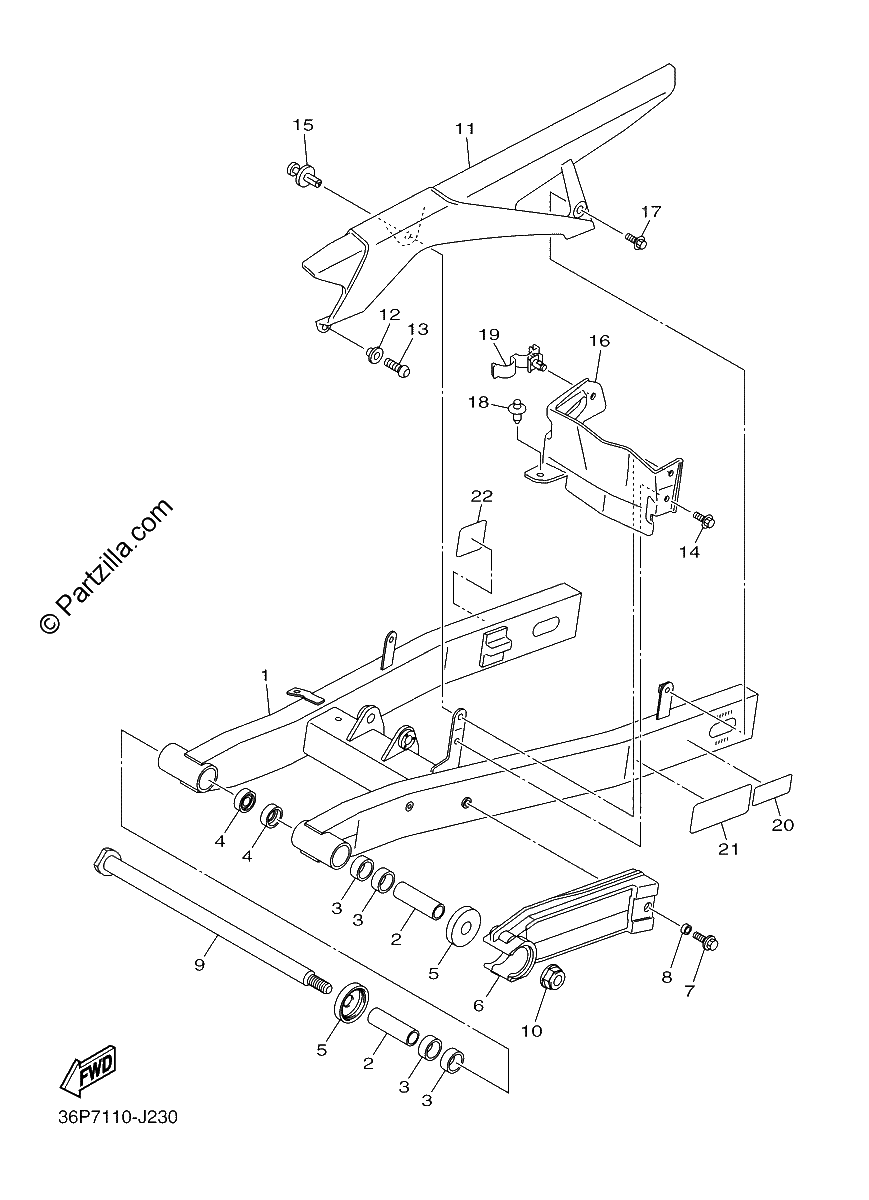

Diagrama de REAR ARM

Repuestos

#1
20S-22110-00-00
REAR ARM COMP.
$544.28¢272 142
1
#2
5VK-22124-00-00
BUSH 2
$21.87¢10 936
1
#3
93317-22262-00
BEARING
$37.40¢18 699
1
#4
93106-22019-00
OIL SEAL,DD-TYPE
$10.23¢5 118
1
#5
20S-22128-00-00
COVER, THRUST 1
$14.34¢7 170
1
#6
20S-22151-00-00
SEAL, GUARD
$23.63¢11 816
1
#7
90119-06147-00
BOLT, WITH WASHER
$0.78¢391
1
#8
90387-06133-00
COLLAR
$6.06¢3 030
1
#9
1AE-22141-00-00
Shaft, Pivot
$58.35¢29 176
1
#10
90185-14012-00
NUT, SELF-LOCKING
$22.39¢11 195
1
#11
20S-22311-00-00
CASE, CHAIN
$70.67¢35 334
1
#12
90387-06130-00
Collar
$7.93¢3 968
1
#13
92012-06020-00
BOLT, BUTTON HEAD
$6.88¢3 439
1
#14
90119-06154-00
BOLT, WITH WASHER
$6.99¢3 496
1
#15
90269-07076-00
RIVET,SPEC'L SHAPE
$6.55¢3 278
1
#16
20S-22325-01-00
COVER, DUST
$30.70¢15 353
1
#17
90119-06154-00
BOLT, WITH WASHER
$6.99¢3 496
1
#18
90269-08001-00
RIVET
$4.77¢2 386
1
#19
90464-16011-00
CLAMP
$8.00¢4 002
1
#20
3XW-21668-A1-00
LABEL, TIRE
$7.38¢3 691
1
#21
36P-2179W-10-00
PLATE, EPA (NON CALIFORNIA)
No Disponible
1
