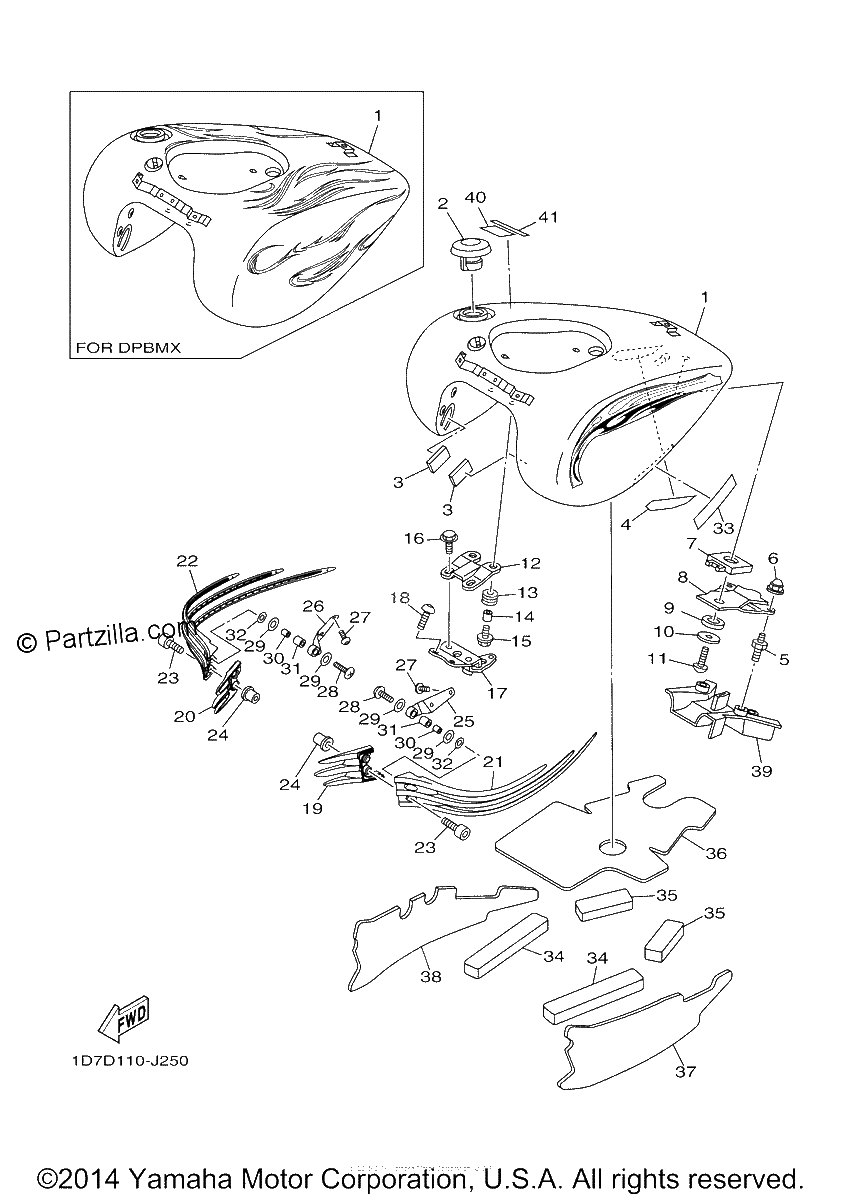

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FUEL TANK COMP. | UR FOR DPBMX
No Disponible
#2
CAP ASSY
$136.76¢68 381
#3
DAMPER
$7.95¢3 975
#4
PLATE
$10.38¢5 188
#5
BOLT 1
$18.90¢9 450
#6
NUT, CROWN
$4.76¢2 381
#7
DAMPER, LOCATING 2
$20.91¢10 456
#8
BRACKET, TANK FITTING
$19.55¢9 775
#9
DAMPER, LOCATING 3
$7.91¢3 956
#10
WASHER, PLATE
$7.76¢3 881
#11
BOLT, BUTTON HEAD
$2.44¢1 219
#12
BRACKET, FUEL TANK 1
$15.21¢7 606
#13
GROMMET
$6.67¢3 338
#14
COLLAR
$8.34¢4 169
#15
BOLT, WITH WASHER
$6.57¢3 287
#16
BOLT, FLANGE
$4.72¢2 363
#17
BRACKET, FUEL TANK 2
$34.20¢17 100
#18
BOLT, BUTTON HEAD
$7.34¢3 669
#19
COVER, SIDE 1
$121.14¢60 569
#20
COVER, SIDE 2
$129.79¢64 894
#21
TANK SIDE COVER ASSY 1
$496.10¢248 050
#22
TANK SIDE COVER ASSY 2
$496.10¢248 050
#23
BOLT, HEXAGON SOCKET HEAD
$3.23¢1 613
#24
NUT
$6.78¢3 388
#25
STAY, FUEL TANK 1
$27.01¢13 506
#26
STAY, FUEL TANK 2
$27.01¢13 506
#27
BOLT, BUTTON HEAD
$7.46¢3 731
#28
SCREW, TAPPING
$7.35¢3 675
#29
WASHER, PLATE
$7.71¢3 856
#30
COLLAR
$5.25¢2 625
#31
BUSH
$2.50¢1 250
#32
WASHER, PLATE
$1.07¢538
#33
TAPE
$10.89¢5 444
#34
DAMPER, PLATE 4
$7.95¢3 975
#35
DAMPER, PLATE 5
$2.05¢1 025
#36
DAMPER, PLATE 3
$159.49¢79 744
#37
DAMPER, PLATE 1
$66.65¢33 325
#38
DAMPER, PLATE 2
$139.31¢69 656
#39
COVER
$29.09¢14 544
#40
LABEL, CAUTION
$5.84¢2 919
#41
LABEL, CAUTION
$3.49¢1 744
