FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

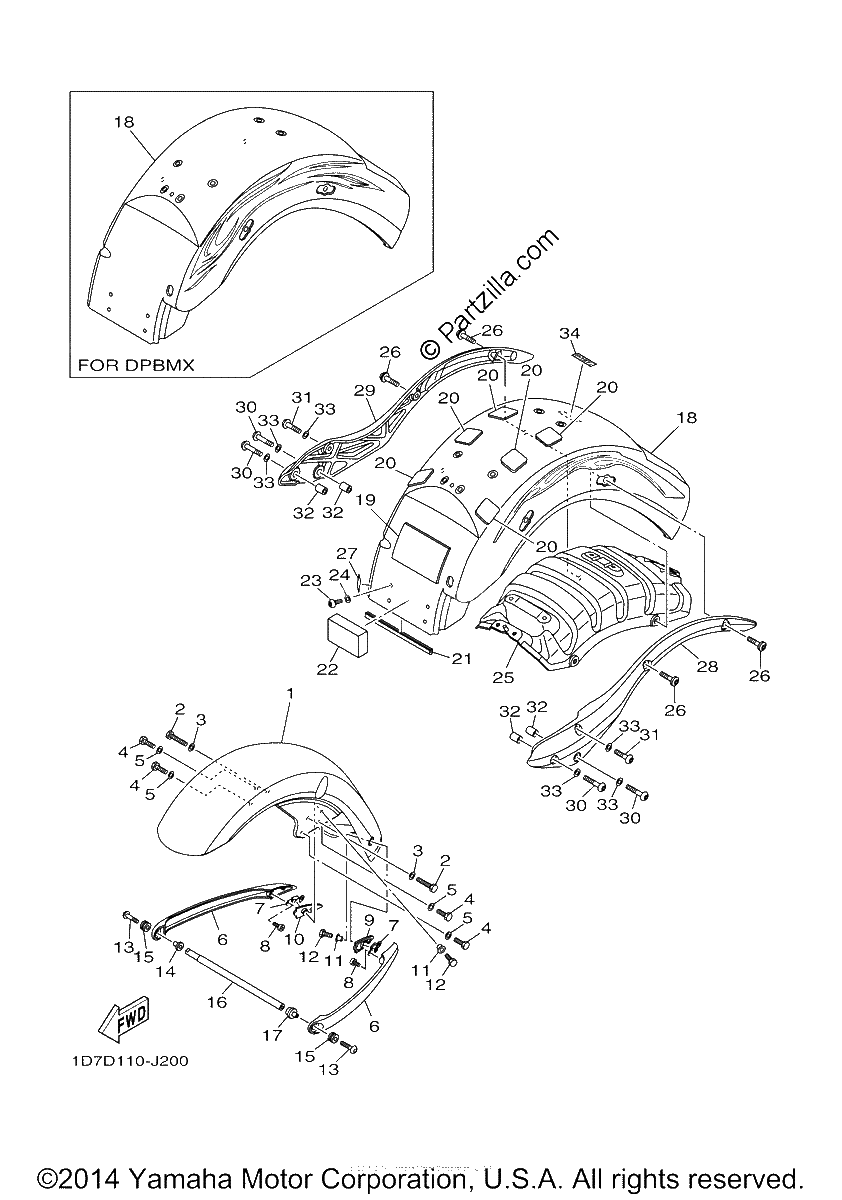

Diagrama de FENDER

Repuestos

#1
1D7-YK215-00-PC
FRONT FENDER COMP. | UR FOR DPBMX
$859.04¢429 519
1
#2
97017-08030-00
BOLT
$7.51¢3 755
1
#3
92907-08600-00
WASHER, PLATE
$2.75¢1 374
1
#4
97017-08016-00
BOLT
$6.80¢3 398
1
#5
92907-08600-00
WASHER, PLATE
$2.75¢1 374
1
#6
1D7-21562-01-00
STAY, FENDER 3
$147.57¢73 784
1
#7
1D7-21512-00-00
BRACKET, FENDER
$5.34¢2 668
1
#8
97707-40610-00
SCREW,TAPPING (replaces 97702-40510-00)
$7.31¢3 657
1
#9
1D7-21541-00-00
DAMPER 1
$4.15¢2 076
1
#10
1D7-21542-00-00
DAMPER 2
$10.26¢5 129
1
#11
90387-087L0-00
COLLAR
$6.76¢3 381
1
#12
97012-06014-00
BOLT
$6.83¢3 415
1
#13
90110-06202-00
BOLT, HEXAGON SOCKET HEAD
$6.22¢3 111
1
#14
90387-06125-00
COLLAR
$6.53¢3 266
1
#15
90480-14329-00
GROMMET
$7.30¢3 651
1
#16
1D7-21544-00-00
COLLAR 1
$82.19¢41 095
1
#17
1D7-21545-00-00
PLATE 3
No Disponible
1
#18
1D7-Y2161-P0-PC
REAR FENDER COMP. | UR FOR DPBMX
No Disponible
1
#19
5PX-21779-00-00
DAMPER, LOCATING 2
$4.23¢2 116
1
#20
5PX-21669-01-00
SEAL
$10.87¢5 434
1
#21
1D7-24188-00-00
MOLD, FUEL TANK
$10.68¢5 342
1
#22
1D7-21639-00-00
DAMPER 2
$5.92¢2 961
1
#23
92012-06012-00
BOLT, BUTTON HEAD
$2.74¢1 368
1
#24
90201-06036-00
WASHER, PLATE
$6.87¢3 433
1
#25
1D7-21643-00-00
STAY, REAR
$242.85¢121 423
1
#26
90111-08033-00
BOLT, HEX. SOCKET BUTTON
$6.89¢3 444
1
#27
3FY-21575-01-00
SEAL 1
$10.14¢5 071
1
#28
1D7-21613-00-00
STAY, FENDER 1 | UR FOR DPBMX
$1337.44¢668 719
1
#29
1D7-21614-00-00
STAY, FENDER 2 | UR FOR DPBMX
$1486.94¢743 469
1
#30
92014-10050-00
BOLT, BUTTON HEAD
$8.28¢4 140
1
#31
92014-10040-00
BOLT, BUTTON HEAD
$5.65¢2 823
1
#32
99530-14016-00
PIN, DOWEL
$3.51¢1 754
1
#33
90201-10M63-00
WASHER, PLATE
$12.89¢6 446
1
#34
3WF-2153E-70-00
EMBLEM, YAMAHA
$4.91¢2 455
1
