MIDDLE DRIVE GEAR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

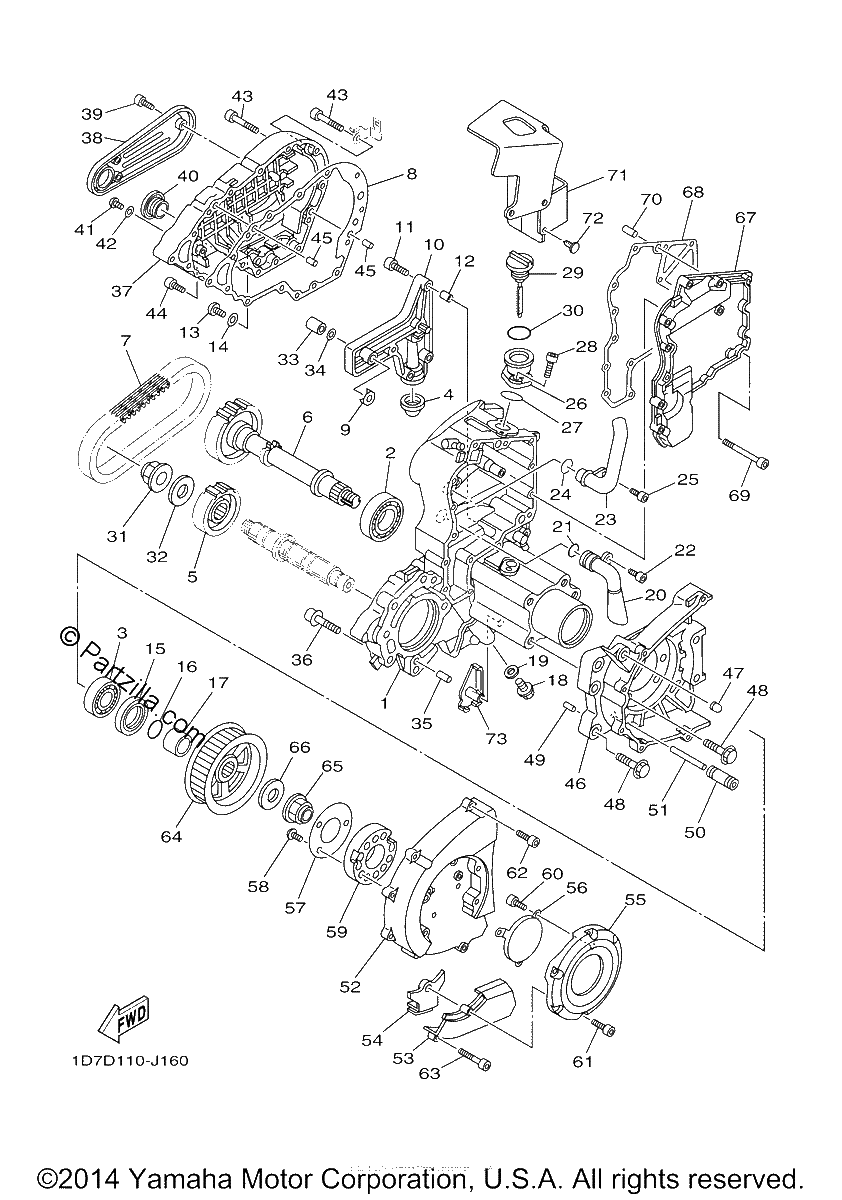

Diagrama de MIDDLE DRIVE GEAR

Repuestos

#1
1D7-17541-00-00
CASE, TRANSFER 1
$825.69¢412 844
1
#2
93306-20801-00
BEARING
$67.04¢33 522
1
#3
93306-28204-00
BEARING
$79.95¢39 974
1
#4
4WM-13286-00-00
CLEANER
$15.89¢7 946
1
#5
1D7-17682-00-00
SPROCKET, CHAIN DRIVE
$91.90¢45 948
1
#6
1D7-1755A-00-00
MIDDLE DRIVEN SHAFT ASSY
$555.00¢277 501
1
#7
4WM-16139-00-00
CHAIN, PRIMARY
$273.19¢136 597
1
#8
1D7-17929-00-00
GASKET 1
$33.00¢16 502
1
#9
1D7-17931-00-00
GASKET 2
$7.89¢3 944
1
#10
1D7-13100-00-00
OIL PUMP ASSY
$154.85¢77 424
1
#11
91314-06035-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#12
99530-08012-00
PIN, DOWEL
$5.75¢2 875
1
#13
90149-08031-00
SCREW
$6.96¢3 479
1
#14
90430-08119-00
GASKET
$6.36¢3 180
1
#15
93102-42008-00
OIL SEAL
$21.72¢10 862
1
#16
93210-32001-00
O-RING
$5.93¢2 967
1
#17
90387-32005-00
COLLAR
$33.92¢16 963
1
#18
90340-14132-00
PLUG, STRAIGHT SCREW
$2.90¢1 449
1
#19
214-11198-01-00
GASKET
$2.97¢1 483
1
#20
1D7-13421-00-00
STRAINER 2
$88.85¢44 425
1
#21
93210-21631-00
O-RING
$7.04¢3 519
1
#22
91317-06016-00
BOLT
$1.35¢673
1
#23
1D7-13582-00-00
PIPE
$30.44¢15 220
1
#24
93210-21631-00
O-RING
$7.04¢3 519
1
#25
91317-06016-00
BOLT
$1.35¢673
1
#26
1D7-13132-00-00
JOINT
$63.89¢31 947
1
#27
93210-40745-00
O-RING
$11.98¢5 991
1
#28
90110-06179-00
BOLT, HEXAGON SOCKET HEAD
$2.24¢1 121
1
#29
5PX-15362-10-00
PLUG, OIL LEVEL
$29.55¢14 777
1
#30
93210-35512-00
O-RING
$12.19¢6 095
1
#31
90179-22016-00
NUT
$23.94¢11 971
1
#32
90208-22004-00
WASHER, CONICAL SPRING
$22.33¢11 167
1
#33
90179-10013-00
NUT
$9.27¢4 635
1
#34
90430-10004-00
GASKET
$6.51¢3 254
1
#35
99530-10014-00
PIN, DOWEL
$2.50¢1 248
1
#36
90110-10013-00
BOLT, HEXAGON SOCKET HEAD
$5.75¢2 875
1
#37
1D7-15779-00-00
COVER
$429.58¢214 791
1
#38
1D7-17821-00-00
COVER, HOUSING
$72.93¢36 467
1
#39
1D7-17662-00-00
PLATE, STAY
$148.42¢74 209
1
#39
91314-05010-00
BOLT, HEXAGON SOCKET HEAD
$2.58¢1 288
1
#40
90340-20005-00
PLUG, STRAIGHT SCREW
$27.44¢13 719
1
#41
92014-06010-00
BOLT, BUTTON HEAD
$5.78¢2 892
1
#42
90430-06016-00
GASKET
$6.76¢3 381
1
#43
91314-06050-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#44
91314-06030-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#45
99530-08012-00
PIN, DOWEL
$5.75¢2 875
1
#46
1D7-17613-00-00
STAY
$190.88¢95 438
1
#47
5PX-17654-00-00
SPACER 1
$8.21¢4 105
1
#48
95814-12050-00
BOLT, FLANGE
$5.51¢2 754
1
#49
99530-08012-00
PIN, DOWEL
$5.75¢2 875
1
#50
4WM-17653-00-00
SLIDER
$7.51¢3 755
1
#51
93606-76002-00
PIN, DOWEL
$4.74¢2 369
1
#52
1D7-17076-00-00
COVER
$375.30¢187 651
1
#54
1D7-15486-00-00
GROMMET
$12.96¢6 480
1
#55
1D7-17665-00-00
PLATE 1
$301.97¢150 984
1
#56
1D7-17675-00-00
PLATE 2
$34.26¢17 129
1
#57
1D7-17672-00-00
PLATE, STAY
$13.13¢6 567
1
#58
90149-06081-00
SCREW
$6.75¢3 375
1
#59
1D7-17655-00-00
DAMPER, SLIDER
$33.99¢16 997
1
#60
91314-05010-00
BOLT, HEXAGON SOCKET HEAD
$2.58¢1 288
1
#61
91314-06025-00
BOLT, HEXAGON SOCKET HEAD
$7.30¢3 651
1
#62
91314-06030-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#63
91314-06050-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#64
1D7-17651-00-00
PULLEY, BELT
$561.58¢280 790
1
#65
90179-22016-00
NUT
$23.94¢11 971
1
#66
90208-22004-00
WASHER, CONICAL SPRING
$22.33¢11 167
1
#67
1D7-17538-00-00
CAP, HOUSING
$117.46¢58 731
1
#68
1D7-17933-00-00
GASKET,4
$27.53¢13 766
1
#69
91317-06025-00
BOLT
$2.24¢1 121
1
#70
99530-08012-00
PIN, DOWEL
$5.75¢2 875
1
#71
5C7-1763A-00-00
PLATE, CAP
$102.26¢51 129
1
#72
90269-07005-00
RIVET
$7.21¢3 605
1
#73
5PX-17446-00-00
PLATE
$13.35¢6 676
1
