FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

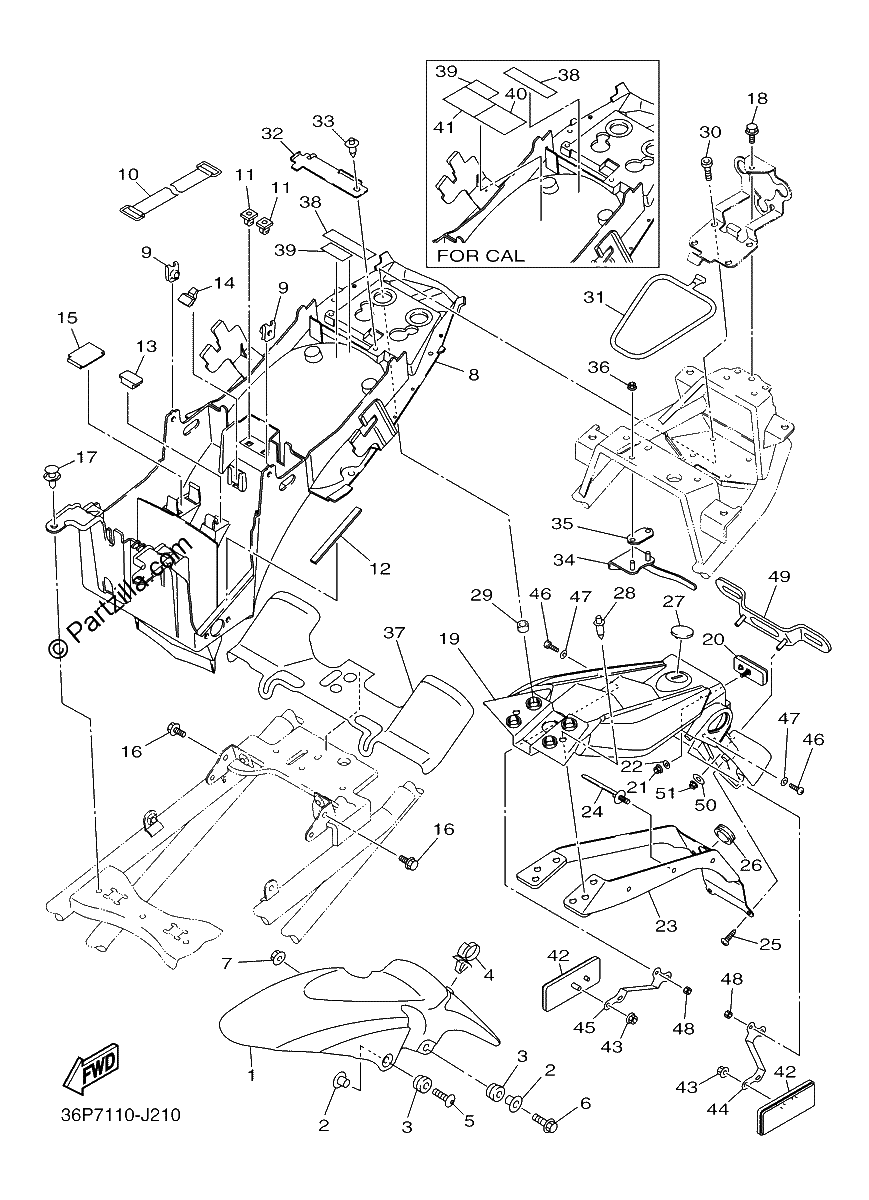

Diagrama de FENDER

Repuestos

#1
5VX-21511-A0-P2
FENDER, FRONT (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$208.21¢104 104
1
#2
90387-065J6-00
Collar
$6.99¢3 496
1
#3
90480-12072-00
GROMMET
$7.30¢3 651
1
#4
90464-18002-00
CLAMP
$7.59¢3 795
1
#5
90110-06202-00
BOLT, HEXAGON SOCKET HEAD
$6.22¢3 111
1
#6
95024-06030-00
BOLT,FLANGE
$6.75¢3 375
1
#7
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#8
20S-21611-00-00
FENDER, REAR
$49.45¢24 725
1
#9
90183-06053-00
Nut, Spring
$6.68¢3 341
1
#10
7H3-82131-00-00
BAND,BATTERY (replaces 18G-82131-00-00)
$17.58¢8 792
1
#11
90480-07003-00
GROMMET
$1.01¢506
1
#12
5JW-2174X-00-00
DAMPER
$0.47¢236
1
#13
20S-216A2-00-00
SEAL, 2
$4.00¢2 001
1
#14
20S-216A3-00-00
SEAL, 3
$4.00¢2 001
1
#15
20S-216A4-00-00
SEAL, 4
$4.66¢2 329
1
#16
95802-06012-00
Bolt, Flange
$1.64¢822
1
#17
90269-07010-00
RIVET
$4.09¢2 047
1
#18
95822-06010-00
BOLT, FLANGE
$3.12¢1 558
1
#19
20S-21629-10-00
GUARD, MUD
$28.49¢14 243
1
#20
3Y6-85130-02-00
Rear Reflector
$24.91¢12 455
1
#21
95602-05100-00
Nut, U
$7.30¢3 651
1
#22
90201-05043-00
WASHER, PLATE
$5.96¢2 978
1
#23
20S-21688-01-00
BRACKET, REAR STAY
$114.79¢57 396
1
#24
90464-31001-00
Clamp
$2.47¢1 236
1
#25
90160-05012-00
SCREW, ROUND TAPPING
$6.87¢3 433
1
#26
90480-23345-00
GROMMET
$2.73¢1 363
1
#27
4KN-2836B-10-00
TUNING FORK MARK
$17.39¢8 694
1
#28
90269-07001-00
RIVET
$1.68¢839
1
#29
90387-06232-00
COLLAR
$3.55¢1 777
1
#30
91312-08025-00
BOLT, HEXAGON SOCKET HEAD
$6.83¢3 415
1
#31
3YX-21376-00-00
BAND, TOOL
$15.84¢7 918
1
#32
20S-21677-01-00
PLATE, FITTING 3
No Disponible
1
#33
90269-06008-00
RIVET
$8.10¢4 048
1
#34
36P-2115J-00-00
BRACKET, HELMET HANGER
$21.45¢10 724
1
#35
20S-24792-00-00
PLATE
$2.21¢1 104
1
#36
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#37
36P-21639-00-00
DAMPER 2
$20.91¢10 453
1
#38
3JJ-28446-A1-00
LABEL, CAUTION
$4.54¢2 271
1
#39
3TB-24877-A0-00
LABEL, CAUTION
$4.90¢2 449
1
#42
3Y6-85130-02-00
Rear Reflector
$24.91¢12 455
1
#43
95602-05200-00
NUT, SELF-LOCKING
$7.51¢3 755
1
#44
36P-2164F-00-00
STAY 1
$15.01¢7 504
1
#45
36P-2164G-00-00
STAY 2
$12.55¢6 273
1
#46
98502-04012-00
SCREW, PAN HEAD
No Disponible
1
#47
92902-04600-00
WASHER, PLATE
$1.10¢552
1
#48
95602-04100-00
Nut, U
$7.84¢3 922
1
#49
5MT-84751-00-00
BRACKET, LICENSE
$26.96¢13 478
1
#50
90201-06088-00
WASHER, PLATE
$6.87¢3 433
1
#51
95602-06100-00
NUT, SELF-LOCKING
$2.63¢1 317
1
