REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

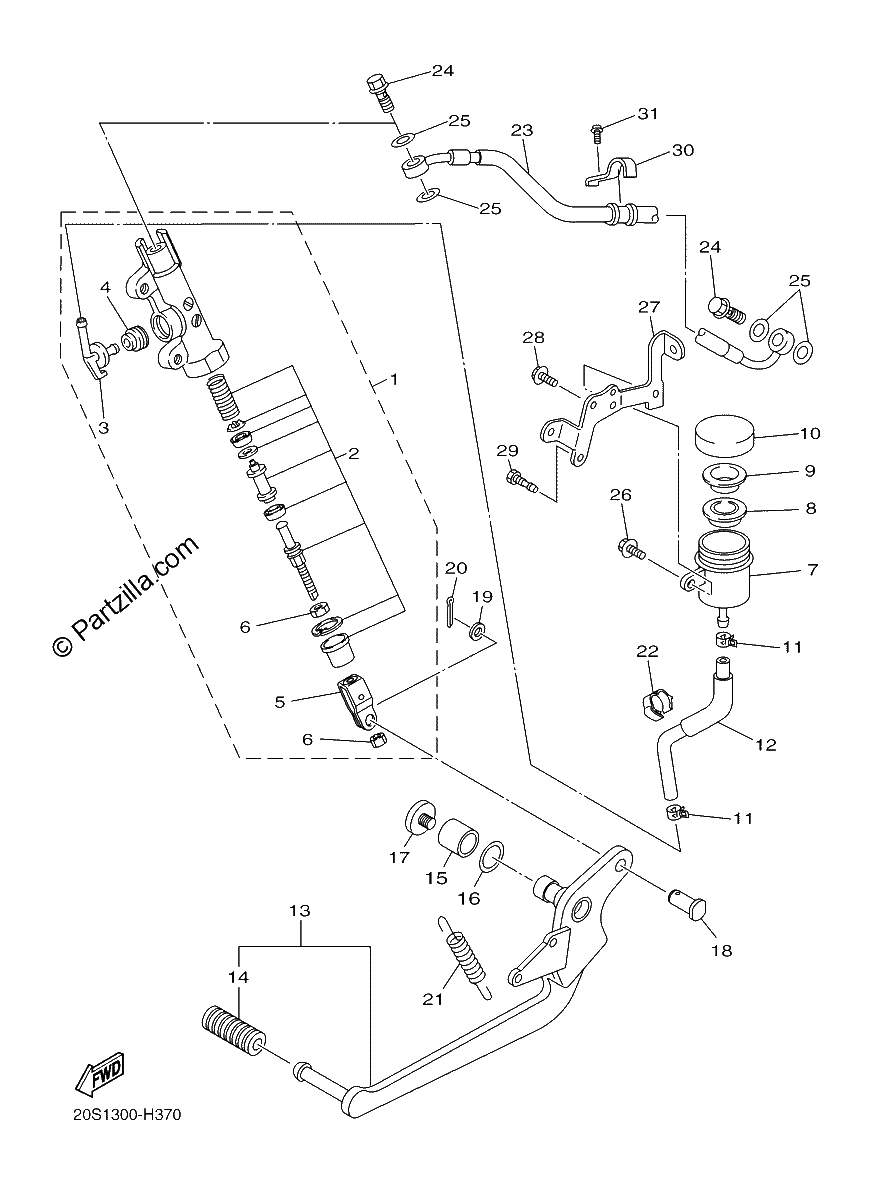

Diagrama de REAR MASTER CYLINDER

Repuestos

#1
2D1-2583V-00-00
RR. MASTER CYLINDER
$249.77¢124 887
1
#2
5VX-W0042-50-00
CYLINDER KIT, MASTER
$100.65¢50 325
1
#3
2D1-2582A-00-00
JOINT
$121.80¢60 900
1
#4
4BP-2585F-01-00
O-RING
$11.39¢5 694
1
#5
4BP-27222-02-00
JOINT
$32.13¢16 063
1
#6
90170-08010-00
NUT
$7.49¢3 744
1
#7
4P5-25894-00-00
TANK, RESERVOIR
$16.85¢8 425
1
#8
5SL-25854-00-00
DIAPHRAGM, RESERVOIR
$21.74¢10 869
1
#9
5SL-25855-00-00
BUSH, DIAPHRAGM
$8.03¢4 013
1
#10
5SL-25852-00-00
CAP, RESERVOIR
$28.44¢14 219
1
#11
90467-11044-00
CLIP,SCISSOR (replaces 90467-12053-00)
$6.25¢3 125
1
#12
20S-25895-00-00
HOSE, RESERVOIR
$22.13¢11 063
1
#13
20S-27200-01-00
PEDAL, BRAKE
$137.68¢68 838
1
#14
5EB-18113-00-00
COVER, SHIFT PEDAL
$8.50¢4 250
1
#15
90386-14171-00
BUSH
$8.09¢4 044
1
#16
90206-14086-00
WASHER, WAVE
$7.35¢3 675
1
#17
90110-06249-00
BOLT, HEXAGON SOCKET HEAD
$5.95¢2 975
1
#18
90240-08005-00
PIN, CLEVIS
$7.34¢3 669
1
#19
90201-08066-00
WASHER, PLATE
$7.55¢3 775
1
#20
91402-20012-00
PIN, COTTER
$2.20¢1 100
1
#21
90506-23008-00
SPRING, TENSION
$7.03¢3 513
1
#22
90464-16003-00
CLAMP
$7.46¢3 731
1
#23
20S-2581K-00-00
HOSE, BRAKE 5
$69.97¢34 988
1
#24
90401-10020-00
BOLT, UNION
$9.86¢4 931
1
#25
90430-10005-00
GASKET
$8.39¢4 194
1
#26
90119-06137-00
BOLT, WITH WASHER
$7.43¢3 713
1
#27
20S-21228-00-00
BRACKET, RESERVE TANK
$12.76¢6 381
1
#28
95802-06012-00
Bolt, Flange
$1.79¢894
1
#29
90153-06034-00
SCREW, HEXAGON
$7.06¢3 531
1
#30
20S-2587A-00-00
HOLDER, BRAKE HOSE
$6.47¢3 238
1
#31
95022-06012-00
BOLT, FLANGE
$3.57¢1 787
1
