REAR ARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

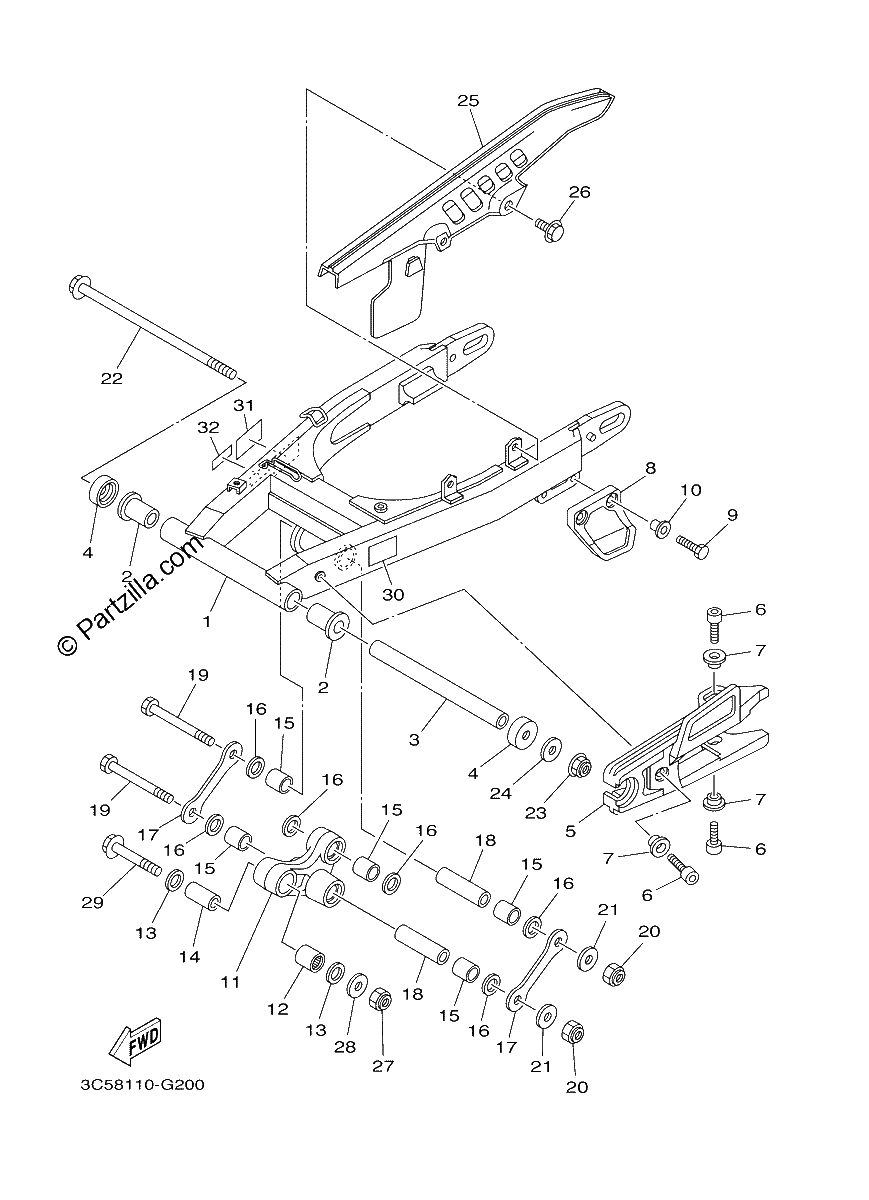

Diagrama de REAR ARM

Repuestos

#1
3C5-22110-00-00
REAR ARM COMP.
$575.10¢287 552
1
#2
90386-18099-00
BUSH
$14.78¢7 389
1
#3
5XT-22184-00-00
BUSH
$48.46¢24 231
1
#4
401-22128-01-00
COVER, THRUST 1
$27.95¢13 973
1
#5
3C5-22151-00-00
SEAL, GUARD
$38.27¢19 136
1
#6
91317-05014-00
BOLT
$7.31¢3 657
1
#7
5JG-22156-00-00
WASHER, PLATE
$7.65¢3 824
1
#8
5BT-22199-00-00
SUPPORT, CHAIN
$22.20¢11 098
1
#9
90119-06094-00
BOLT, WITH WASHER
$6.43¢3 214
1
#10
90387-06737-00
COLLAR
$7.24¢3 622
1
#11
5XT-2217A-00-00
ARM, RELAY
$116.24¢58 121
1
#12
93315-31750-00
BEARING
$35.72¢17 859
1
#13
93109-17071-00
OIL SEAL
$7.38¢3 691
1
#14
90387-126X9-00
COLLAR
$36.78¢18 389
1
#15
90383-17001-00
BUSH, FORMED
$10.27¢5 135
1
#16
93109-17071-00
OIL SEAL
$7.38¢3 691
1
#17
3C5-2217F-01-00
ROD, CONNECTING 1
$17.62¢8 809
1
#18
90387-123V9-00
COLLAR
$21.11¢10 557
1
#19
90101-12015-00
BOLT
$5.07¢2 536
1
#20
95617-12100-00
NUT, U
$4.16¢2 081
1
#21
90201-12699-00
WASHER, PLATE
$6.52¢3 260
1
#22
5JV-22141-00-00
SHAFT, PIVOT
$14.08¢7 038
1
#23
95604-12200-00
NUT, SELF-LOCKING
$5.27¢2 633
1
#24
90201-126A7-00
WASHER, PLATE
$6.88¢3 439
1
#25
34X-22311-00-00
CASE, CHAIN
$32.22¢16 112
1
#26
90119-05005-00
BOLT, WITH WASHER
$6.14¢3 070
1
#27
95617-12100-00
NUT, U
$4.16¢2 081
1
#28
90201-12699-00
WASHER, PLATE
$6.52¢3 260
1
#29
90105-12425-00
BOLT, FLANGE
$9.51¢4 755
1
#30
3C5-21668-00-00
LABEL, TIRE
No Disponible
1
#31
3C5-2179N-20-00
PLATE, EPA 2(CALIFORNIA) *{FOR CAL}*
No Disponible
1
#32
3C5-25839-10-00
LABEL, BRAKE FLUID
$7.38¢3 691
1
