CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

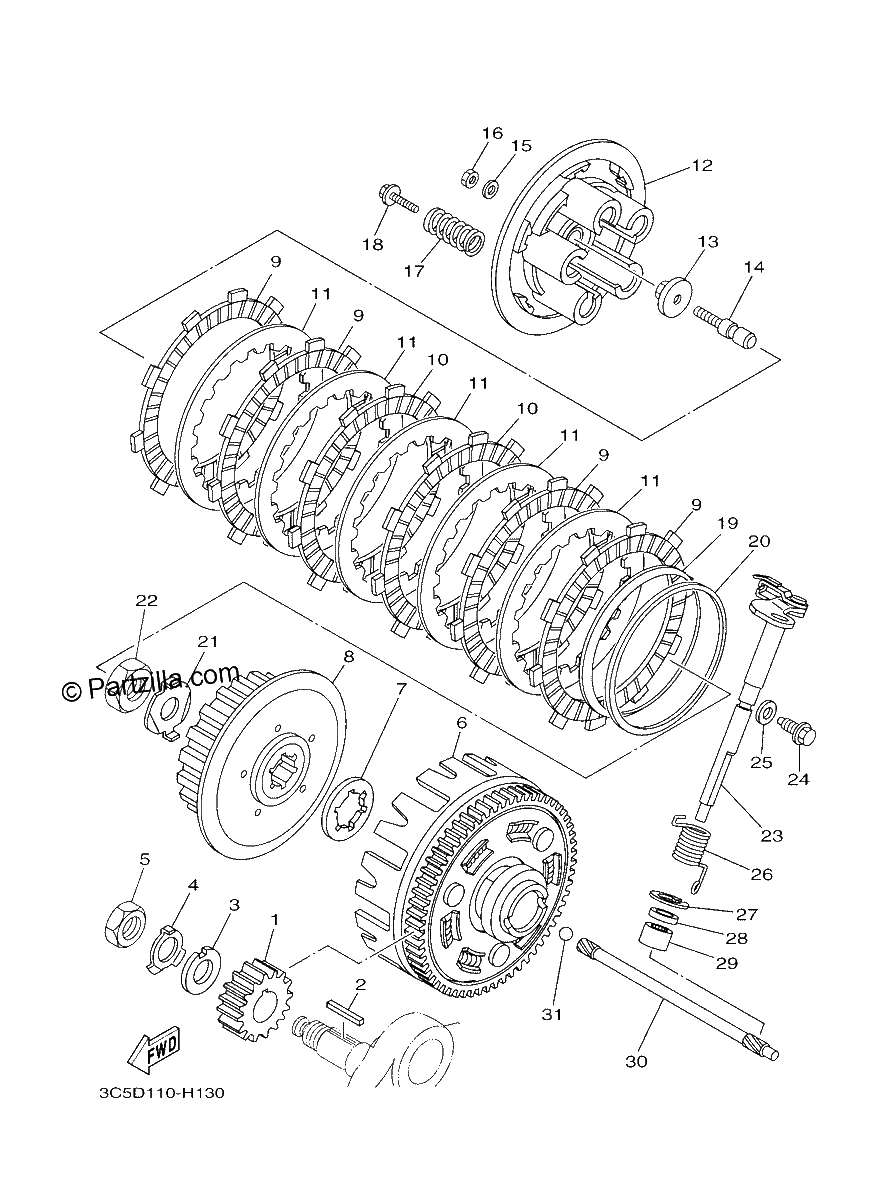

Diagrama de CLUTCH

Repuestos

#1
5XT-16111-00-00
GEAR, PRIMARY DRIVE (24T)
$87.65¢43 825
1
#2
90282-05077-00
KEY, STRAIGHT
$9.15¢4 575
1
#3
90214-16063-00
WASHER, CLAW
$13.75¢6 875
1
#4
90215-16293-00
WASHER, LOCK
$10.74¢5 369
1
#5
90170-16425-00
NUT
$7.88¢3 938
1
#6
5XT-16150-00-00
PRIMARY DRIVEN GEAR COMP.(74T)
$415.29¢207 644
1
#7
30X-16154-00-00
PLATE, THRUST 1
$28.15¢14 075
1
#8
4GY-16371-01-00
BOSS, CLUTCH
$185.52¢92 762
1
#9
1KT-16321-00-00
PLATE, FRICTION
$17.84¢8 919
1
#10
5DH-16321-00-00
PLATE, FRICTION
$25.19¢12 594
1
#11
3XJ-16324-01-00
PLATE, CLUTCH 1
$14.60¢7 300
1
#12
4GY-16351-00-00
PLATE, PRESSURE 1
$71.63¢35 813
1
#13
1W1-16358-01-00
PLATE, PUSH
$23.89¢11 944
1
#14
5XT-16356-00-00
ROD, PUSH 1
$17.40¢8 700
1
#15
92902-06200-00
WASHER
$0.96¢481
1
#16
95302-06600-00
NUT, HEXAGON
$5.05¢2 525
1
#17
90501-23598-00
SPRING, COMPRESSION
$6.76¢3 381
1
#18
90159-06010-00
SCREW, WITH WASHER
$7.80¢3 900
1
#19
3XV-16383-00-00
SPRING.,CUSHION
$27.60¢13 800
1
#20
5NL-16384-00-00
PLATE, SEAT
$19.09¢9 544
1
#21
90215-16289-00
WASHER, LOCK
$7.30¢3 650
1
#22
90170-16326-00
NUT
$13.11¢6 556
1
#23
5XT-16380-00-00
PUSH LEVER ASSY
$84.40¢42 200
1
#24
90109-08105-00
BOLT
$3.57¢1 787
1
#25
90430-08119-00
GASKET
$6.91¢3 456
1
#26
90508-203B3-00
SPRING, TORSION
$5.41¢2 706
1
#27
99009-20500-00
CIRCLIP
$1.46¢731
1
#28
93102-12224-00
OIL SEAL
$9.94¢4 969
1
#29
93315-11206-00
BEARING
$37.81¢18 906
1
#30
4GY-16357-00-00
ROD, PUSH 2
$53.43¢26 713
1
#31
93511-32017-00
BALL
$7.34¢3 669
1
