STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

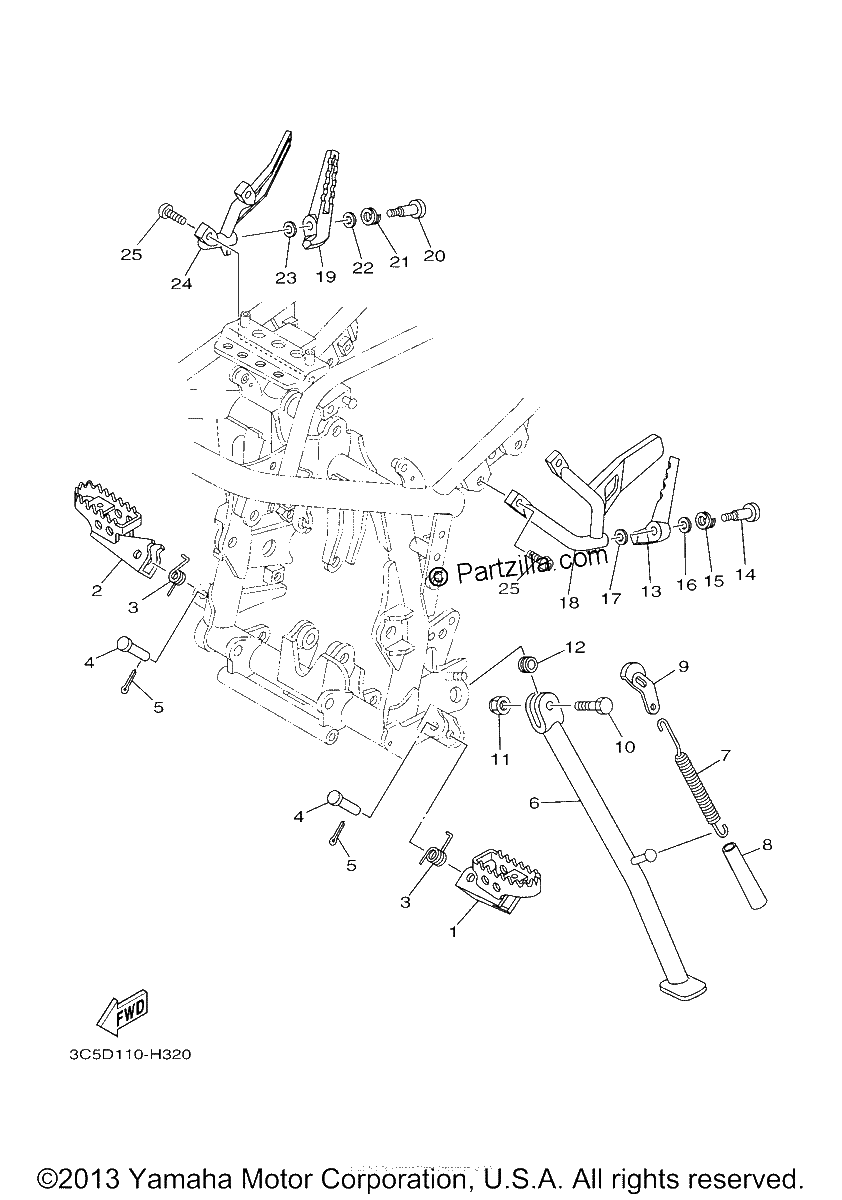

Diagrama de STAND FOOTREST

Repuestos

#1
3LD-27411-10-00
FOOTREST 1
$49.59¢24 794
1
#2
3LD-27421-10-00
FOOTREST 2
$49.22¢24 610
1
#3
90508-20583-00
SPRING,TORSION
$7.30¢3 651
1
#4
90240-10101-00
PIN,CLEVIS
$11.73¢5 865
1
#5
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#6
3C5-27311-10-00
STAND, SIDE
$62.43¢31 217
1
#7
90506-35473-00
SPRING,TENSION
$16.02¢8 010
1
#8
90445-22327-00
HOSE
$6.97¢3 484
1
#9
5XT-27315-01-00
LINK, SIDE STAND
$7.34¢3 669
1
#10
90101-10013-00
bolt
$3.86¢1 932
1
#11
90185-10060-00
NUT, SELF-LOCKING
$6.59¢3 295
1
#12
90387-10003-00
Collar
$23.36¢11 678
1
#13
3XP-27431-02-00
FOOTREST, REAR 1
$34.79¢17 394
1
#14
90109-085F5-00
BOLT(3XP)
$5.06¢2 530
1
#15
90504-18031-00
SPRING,COMPRESSION (replaces 90504-18005-00)
$8.39¢4 198
1
#16
92907-10600-00
WASHER (6TA)
$6.76¢3 381
1
#17
90201-083P5-00
WASHER, PLATE(3XP)
$5.65¢2 823
1
#18
3C5-27432-00-00
BRACKET 1
$74.20¢37 099
1
#19
3XP-27441-02-00
FOOTREST, REAR 2
$33.05¢16 525
1
#20
90109-085F5-00
BOLT(3XP)
$5.06¢2 530
1
#21
90504-18031-00
SPRING,COMPRESSION (replaces 90504-18005-00)
$8.39¢4 198
1
#22
92907-10600-00
WASHER (6TA)
$6.76¢3 381
1
#23
90201-083P5-00
WASHER, PLATE(3XP)
$5.65¢2 823
1
#24
3C5-27442-00-00
BRACKET 2
$74.05¢37 024
1
#25
92012-08020-00
BOLT, BUTTON HEAD
$2.44¢1 219
1
