CRANKSHAFT PISTON

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

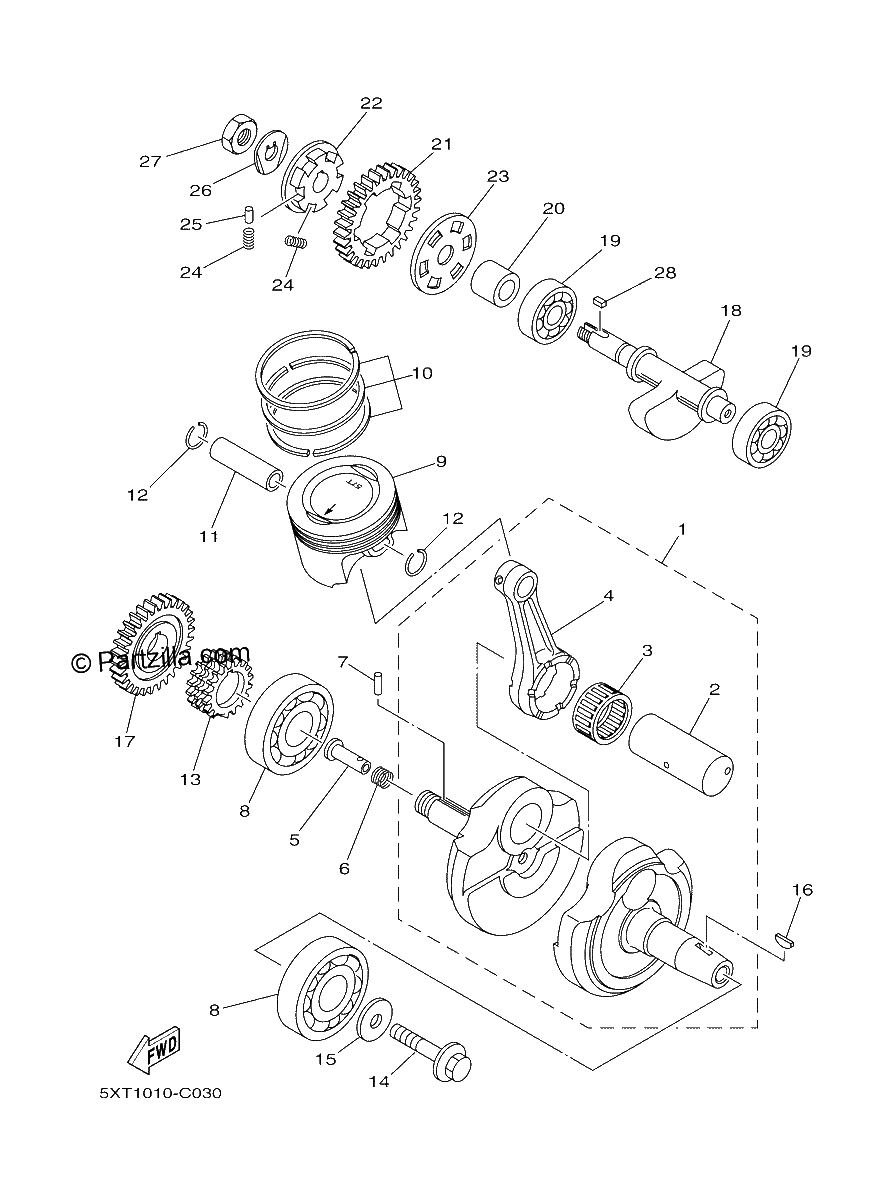

Diagrama de CRANKSHAFT PISTON

Repuestos

#1
5XT-11400-00-00
CRANKSHAFT ASSY
$352.11¢176 054
1
#2
5BP-11681-00-00
PIN, CRANK 1
$25.17¢12 587
1
#3
93310-530J3-00
BEARING,CYL.#10
$64.95¢32 476
1
#4
29U-11651-00-00
ROD,CONNECTING
$126.63¢63 313
1
#5
90240-07105-00
PIN,CLEVIS
$15.64¢7 820
1
#6
90501-07629-00
SPRING,COMPRESSION
$7.77¢3 887
1
#7
93602-13177-00
PIN,DOWEL
$2.40¢1 202
1
#8
93306-37814-00
BEARING
$94.85¢47 426
1
#9
3C5-11631-00-A0
PISTON (STD)
$225.61¢112 804
1
#10
4XV-11603-00-00
PISTON RING SET (S
$40.88¢20 441
1
#11
5H0-11633-00-00
Pin, Piston
$47.45¢23 724
1
#12
93450-17044-00
CIRCLIP,INNER
$5.75¢2 875
1
#13
5BP-11549-00-00
SPROCKET, CAM CHAIN
$79.17¢39 583
1
#14
90105-10430-00
BOLT,WASHER BASED
$9.58¢4 790
1
#15
90201-102R1-00
WASHER, plate
$7.57¢3 783
1
#16
90280-05013-00
KEY, WOODRUFF
$12.91¢6 457
1
#17
1S4-11536-00-00
GEAR, DRIVE
$105.73¢52 866
1
#18
5XT-11454-00-00
WEIGHT 1
$76.00¢38 002
1
#19
93306-30214-00
BEARING
$45.63¢22 816
1
#20
5XT-11478-00-00
Collar
$11.64¢5 819
1
#21
1S4-11531-00-00
GEAR, BALANCE WEIGHT
$141.92¢70 961
1
#22
5XT-11496-00-00
BOSS, BUFFER
$67.47¢33 735
1
#23
5XT-11533-00-00
PLATE, ABSORBER
$14.17¢7 084
1
#24
90501-22721-00
SPRING,COMPRESSION
$8.79¢4 393
1
#25
93605-10090-00
PIN,DOWEL
$6.09¢3 048
1
#26
90215-12272-00
WASHER,LOCK
$11.38¢5 693
1
#27
90170-12370-00
NUT,HEXAGON
$19.41¢9 706
1
#28
90282-05013-00
KEY, STRAIGHT
$8.20¢4 100
1
