CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

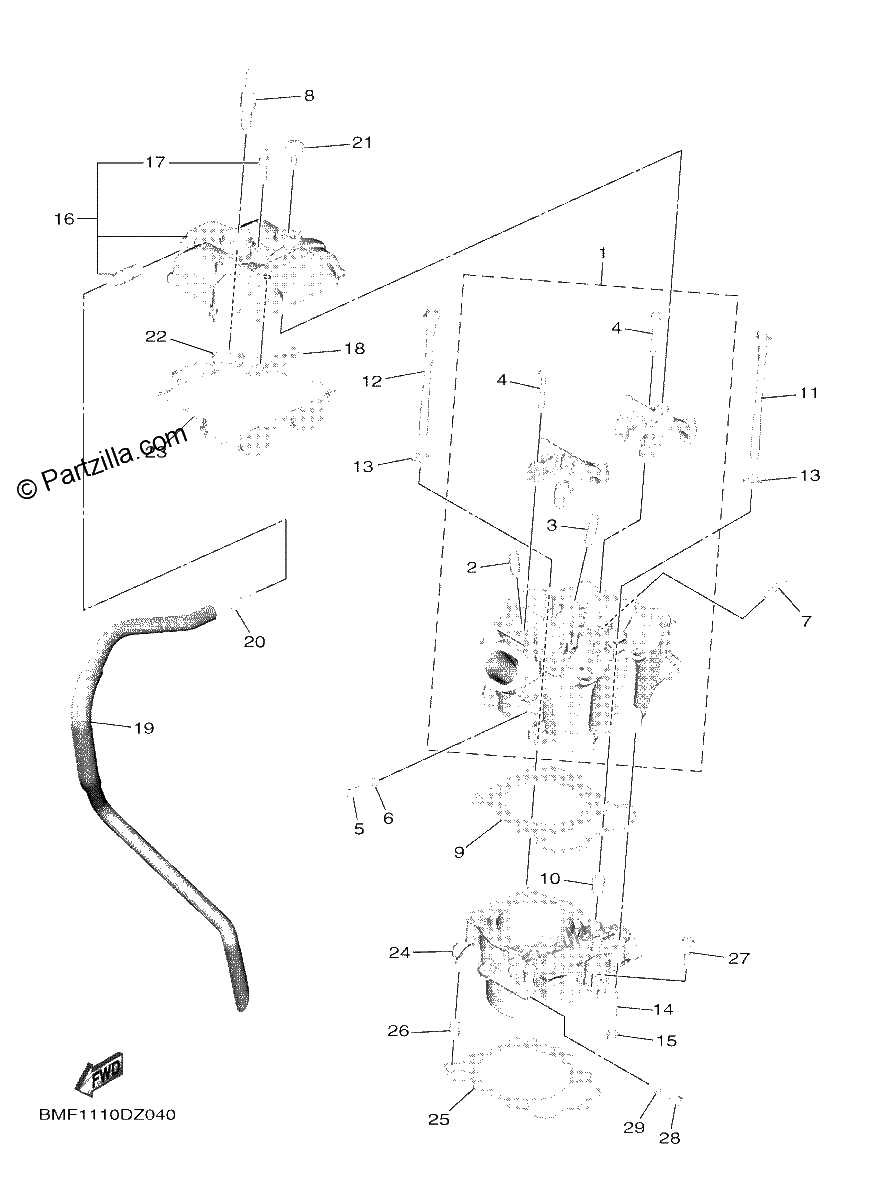

Diagrama de CYLINDER

Repuestos

#1
B7B-11101-19-00
CYLINDER HEAD ASSY
$956.79¢478 394
1
#1
B7B-11101-09-00
Cylinder Head Assy
$1235.09¢617 544
1
#2
5TA-11134-10-00
GUIDE, EXHAUST VALVE
$52.20¢26 099
1
#2
B7B-11133-10-00
. GUIDE, VALVE 1
$214.03¢107 013
1
#3
3D7-11133-10-00
GUIDE, VALVE 1
$60.89¢30 446
1
#4
90105-06027-00
BOLT, FLANGE
$7.06¢3 530
1
#5
95E32-06010-00
BOLT, FLANGE DEEP RECESS
$0.84¢420
1
#6
90430-06014-00
GASKET
$7.59¢3 795
1
#7
90116-06037-00
BOLT, stud
$3.70¢1 852
1
#8
LMA-R9EJ0-00-00
LMAR9EJ NGK SPLUG
$13.97¢6 986
1
#9
B7B-11181-00-00
GASKET, CYLINDER HEAD 1
$30.44¢15 220
1
#10
93612-16254-00
PIN,DOWEL
$4.77¢2 386
1
#11
90105-09004-00
Bolt, Flange
$13.48¢6 739
1
#12
90105-09002-00
BOLT, FLANGE
$14.98¢7 492
1
#13
90201-096J9-00
WASHER,PLATE
$3.07¢1 535
1
#14
90116-06037-00
BOLT, stud
$3.70¢1 852
1
#15
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#16
B7B-11190-00-00
COVER, CYLINDER HEAD 1
$280.90¢140 449
1
#17
90116-06049-00
BOLT, STUD (replaces 90116-06048-00)
$5.07¢2 536
1
#18
5BE-12241-01-00
GUIDE, STOPPER 2
$28.00¢14 001
1
#19
BMF-11166-00-00
PIPE, BREATHER 1
$31.31¢15 657
1
#20
90467-140A4-00
CLIP
$9.12¢4 560
1
#21
5UM-1119E-00-00
BOLT, COVER HEAD
$12.02¢6 009
1
#22
1SM-11194-00-00
GASKET, HEAD COVER 2
$15.65¢7 826
1
#23
1SM-11193-00-00
GASKET, HEAD COVER 1
$29.57¢14 783
1
#24
B7B-11311-00-00
CYLINDER 1
$470.71¢235 353
1
#25
B7B-11351-00-00
Gasket, Cylinder
$13.48¢6 739
1
#26
99530-10116-00
PIN, DOWEL
$3.68¢1 840
1
#27
90110-06380-00
BOLT, HEXAGON SOCKET HEAD
$6.92¢3 461
1
#28
95E32-06010-00
BOLT, FLANGE DEEP RECESS
$0.84¢420
1
#29
90430-06014-00
GASKET
$7.59¢3 795
1
