SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

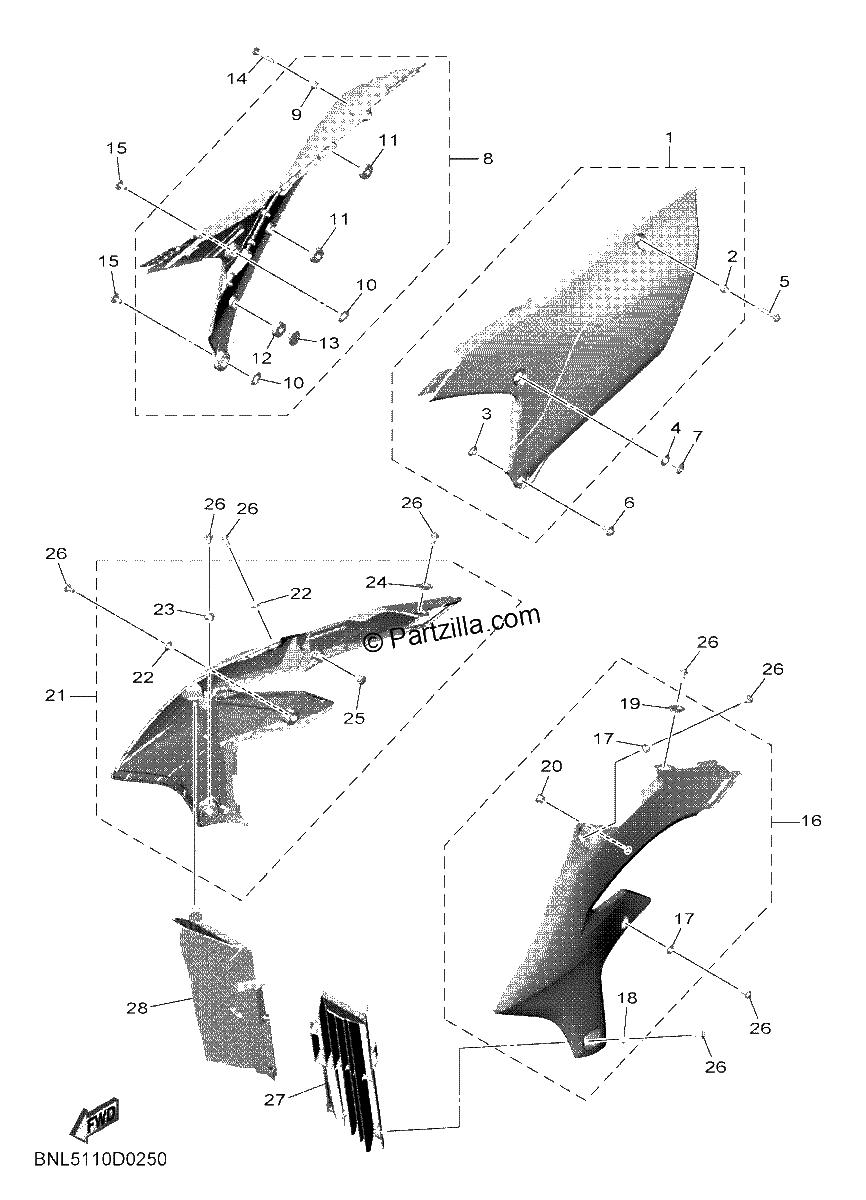

Diagrama de SIDE COVER

Repuestos

#1
BHR-21710-00-00
SIDE COVER ASSY 1
$33.05¢16 525
1
#2
90387-08057-00
Collar
$7.70¢3 852
1
#3
17D-14449-00-00
Collar
$7.38¢3 691
1
#4
90387-09022-00
COLLAR
$15.97¢7 987
1
#5
90105-06179-00
Bolt, Flange
$4.30¢2 151
1
#6
90119-06217-00
BOLT,WITH WASHER
$5.75¢2 875
1
#7
90111-06196-00
BOLT, HEXAGON SOCKET BUTTON
$1.91¢954
1
#8
D02-21720-00-00
SIDE COVER ASSY 2
$44.65¢22 327
1
#9
90387-08057-00
Collar
$7.70¢3 852
1
#10
D02-21749-00-00
COLLAR
$9.58¢4 790
1
#11
1SL-21719-00-00
Grommet
$14.52¢7 262
1
#12
90480-17013-00
GROMMET
$20.53¢10 264
1
#13
D02-21746-00-00
DAMPER
$18.02¢9 010
1
#14
90105-06179-00
Bolt, Flange
$4.30¢2 151
1
#15
90119-06217-00
BOLT,WITH WASHER
$5.75¢2 875
1
#16
BHR-21730-00-00
SIDE COVER ASSY 3 (WO/GRAPHIC)
$38.89¢19 447
1
#16
BXA-217R0-P0-00
SIDE COVER INSERT ASSY. 3
$187.42¢93 708
1
#17
90387-07045-00
COLLAR
$6.55¢3 278
1
#18
90387-08086-00
Collar
$5.93¢2 967
1
#19
1SL-21748-00-00
Collar
$10.38¢5 192
1
#20
90480-10068-00
GROMMET (replaces 90480-08608-00)
$7.42¢3 709
1
#21
BHR-21740-00-00
SIDE COVER ASSY 4 (WO/GRAPHIC)
$38.89¢19 447
1
#21
BXA-217S0-P0-00
SIDE COVER INSERT ASSY. 4
$182.50¢91 252
1
#22
90387-07045-00
COLLAR
$6.55¢3 278
1
#23
90387-08086-00
Collar
$5.93¢2 967
1
#24
1SL-21748-00-00
Collar
$10.38¢5 192
1
#25
90480-10068-00
GROMMET (replaces 90480-08608-00)
$7.42¢3 709
1
#26
90105-06064-00
Bolt, Flange
$2.92¢1 461
1
#27
BHR-2172A-20-00
PANEL 1
$28.45¢14 225
1
#28
BHR-2172F-20-00
PANEL 2
$28.45¢14 225
1
