ELECTRICAL 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

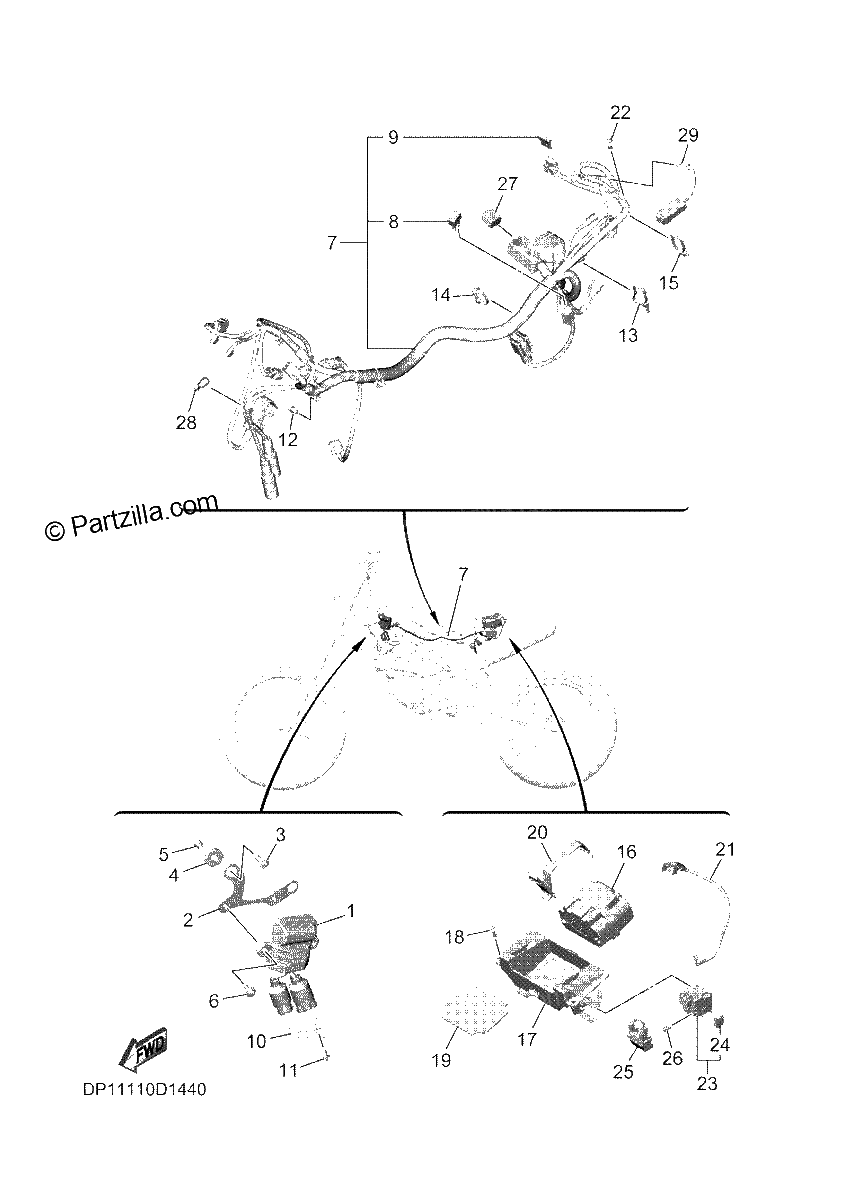

Diagrama de ELECTRICAL 2

Repuestos

#1
B7B-81960-00-00
RECTIFIER & REGULATOR ASSY
$147.90¢73 951
1
#2
BHR-21287-00-00
BRACKET, REGULATOR
$28.24¢14 122
1
#3
90105-06219-00
Bolt, Flange
$1.99¢995
1
#4
90480-19283-00
GROMMET
$7.91¢3 956
1
#5
90387-07573-00
COLLAR
$8.18¢4 088
1
#6
90105-06064-00
Bolt, Flange
$2.92¢1 461
1
#7
DP3-82590-00-00
WIRE HARNESS ASSY
$402.57¢201 284
1
#8
4WA-81980-00-00
DIODE ASSY
$28.45¢14 225
1
#9
1CB-82151-00-00
FUSE (5A-LP BL)
$3.56¢1 783
1
#10
D03-82388-00-00
PLATE
$4.76¢2 380
1
#11
90105-06110-00
Bolt, Flange
$6.87¢3 433
1
#12
95E32-06010-00
BOLT, FLANGE DEEP RECESS
$0.84¢420
1
#13
90465-13M18-00
CLAMP
$2.00¢1 001
1
#14
90464-31002-00
CLAMP
$4.20¢2 099
1
#15
1UA-82591-00-00
BAND
$4.52¢2 260
1
#16
BR9-82100-A9-00
BATTERY ASSY (TPTAQ 4S1P)
$673.89¢336 944
1
#17
BNK-82128-00-00
BRACKET, BATTERY
$69.77¢34 885
1
#18
90105-06203-00
BOLT, FLANGE
$1.98¢989
1
#19
BR9-82176-00-00
Damper
$5.45¢2 726
1
#20
BHR-82131-00-00
BAND, BATTERY
$29.27¢14 634
1
#21
BHR-82115-00-00
WIRE, PLUS LEAD
$25.67¢12 834
1
#22
90105-06064-00
Bolt, Flange
$2.92¢1 461
1
#23
2GB-81940-00-00
STARTER RELAY ASSY (RC19-102B)
$49.59¢24 794
1
#24
36Y-82151-00-00
Fuse (15 Amp)
$4.45¢2 225
1
#25
5SL-82119-10-00
COVER, LEAD WIRE
$4.45¢2 225
1
#26
95022-06008-00
BOLT, FLANGE
$6.87¢3 433
1
#27
5UM-81950-E0-00
RELAY ASSY (5UM-E0)
$20.00¢9 999
1
#28
90465-10098-00
CLAMP
$2.55¢1 277
1
#29
1DX-82718-00-00
RESISTOR ASSY
$83.89¢41 946
1
