ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

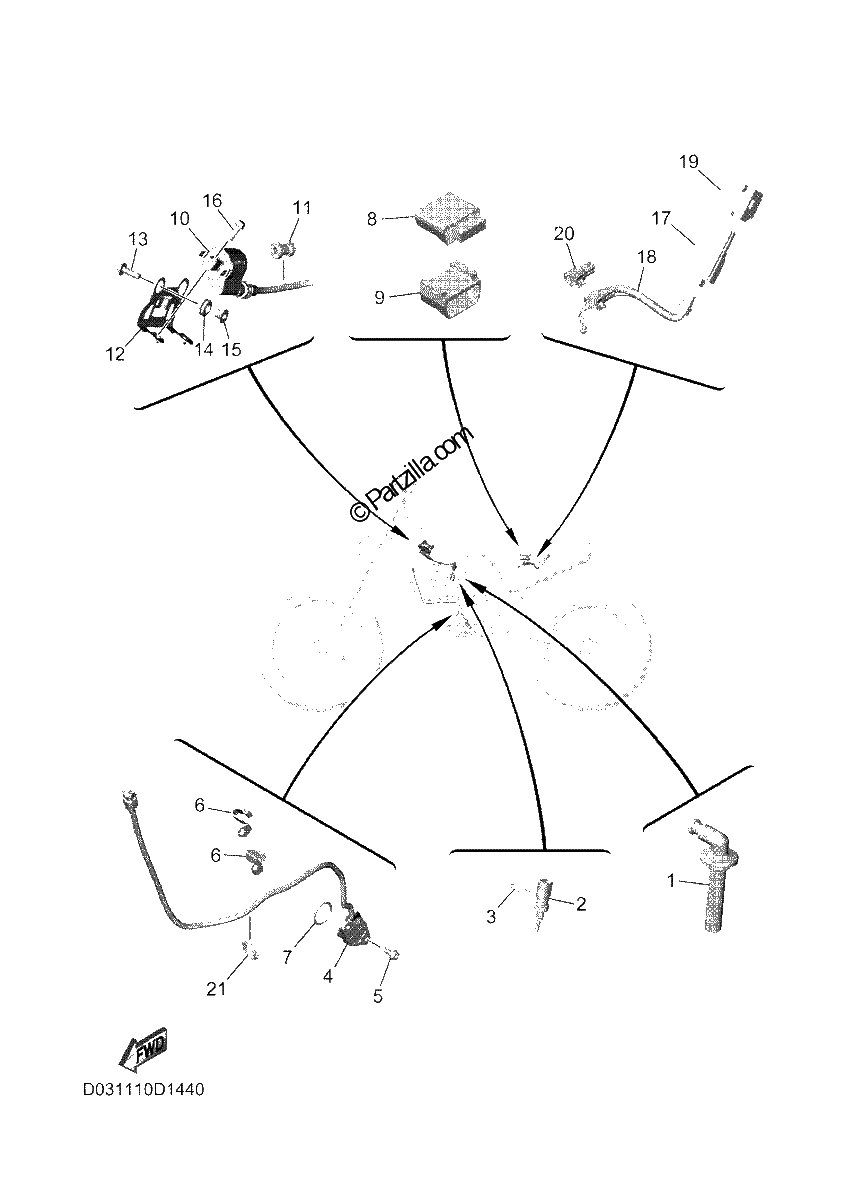

Diagrama de ELECTRICAL 1

Repuestos

#1
B2W-82370-00-00
PLUG CAP ASSY
$148.37¢74 187
1
#2
BHR-83591-00-00
THERMO UNIT
$34.73¢17 365
1
#3
BHR-83525-00-00
CLIP
$2.28¢1 138
1
#4
BHR-82540-01-00
NEUTRAL SWITCH ASSY
$80.05¢40 026
1
#5
90110-05028-00
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
1
#6
BHR-15484-00-00
CLAMP 2
$15.79¢7 895
1
#7
93210-21001-00
O-RING
$5.23¢2 616
1
#8
D03-8591A-00-00
ENGINE CONTROL UNIT ASSY
$528.99¢264 494
1
#9
BHR-82155-00-00
BAND
$33.33¢16 664
1
#10
BHR-82310-00-00
IGNITION COIL ASSY
$88.17¢44 085
1
#11
90480-11015-00
Grommet
$3.82¢1 909
1
#12
BHR-2194U-00-00
STAY, IGNITION COIL
$24.49¢12 247
1
#13
90105-06219-00
Bolt, Flange
$1.99¢995
1
#14
90480-14477-00
GROMMET
$3.53¢1 765
1
#15
90387-06M79-00
COLLAR
$11.24¢5 618
1
#16
95E32-06016-00
BOLT, FLANGE DEEP RECESS
$0.75¢374
1
#17
D03-85810-00-00
COMMUNICATION CONT. UNIT ASSY
$1020.04¢510 019
1
#18
BHR-85721-00-00
WIRE, LEAD
$52.01¢26 007
1
#19
BHR-85546-00-00
BAND
$18.19¢9 096
1
#20
BHR-82378-00-00
CONNECTOR
$14.06¢7 032
1
#21
90465-10098-00
CLAMP
$2.55¢1 277
1
