FRONT MASTER CYLINDER 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

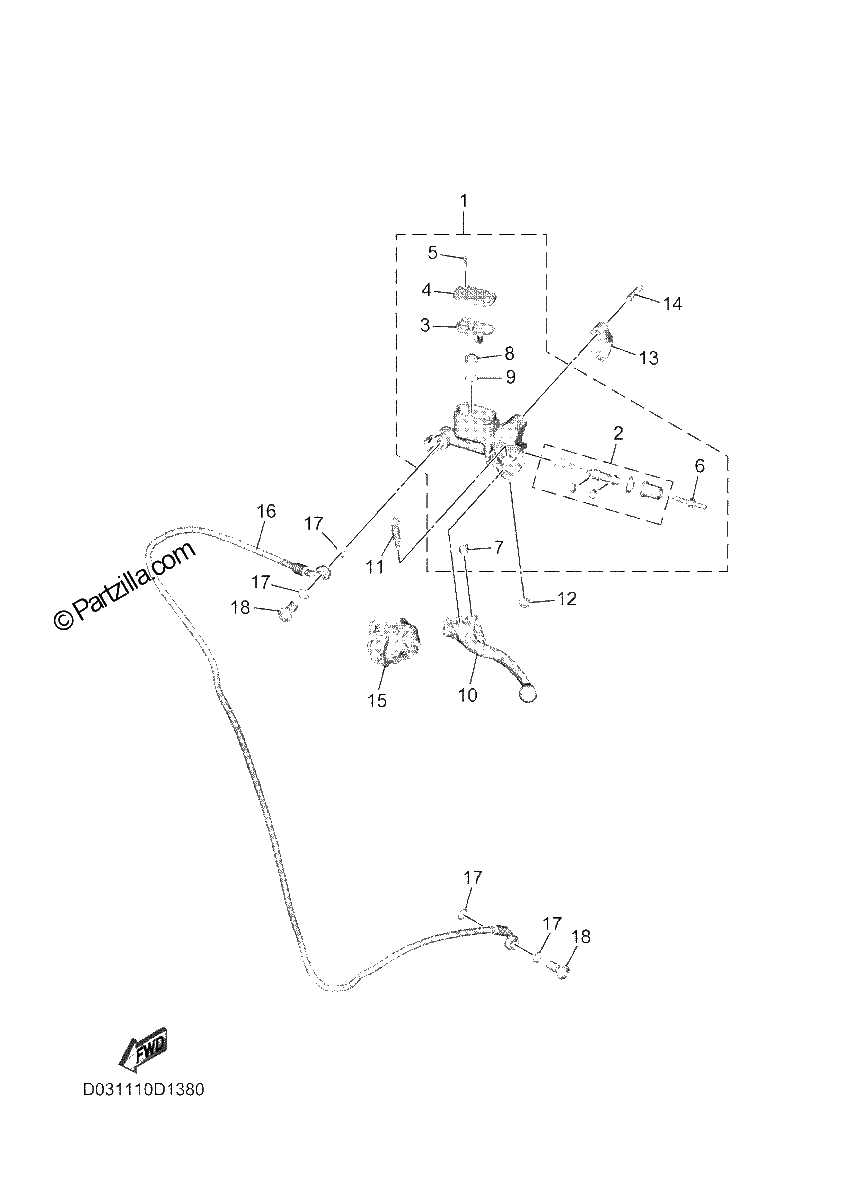

Diagrama de FRONT MASTER CYLINDER 2

Repuestos

#1
D03-26401-00-00
MASTER CYLINDER SUB ASSY
$269.55¢134 775
1
#2
D03-26402-00-00
CYLINDER KIT, MASTER (CLUTCH)
$61.97¢30 987
1
#3
D03-25854-00-00
DIAPHRAGM, RESERVOIR
$6.95¢3 475
1
#4
D03-25852-00-00
CAP, RESERVOIR
$36.31¢18 156
1
#5
98707-04012-00
SCREW, FLAT HEAD
$1.71¢856
1
#6
5YU-26464-00-00
ROD, PUSH
$9.68¢4 838
1
#7
D03-26455-00-00
BUSH
$27.73¢13 863
1
#8
5CG-25715-00-00
SEPARATOR ASSY
$12.60¢6 300
1
#9
5CG-2585G-00-00
CIRCLIP
$5.88¢2 938
1
#10
D03-83912-00-00
LEVER 1
$54.90¢27 450
1
#11
3B4-2589F-00-00
BOLT, LEVER
$13.41¢6 706
1
#12
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
#13
5MV-25867-00-00
BRACKET, MASTER CYLINDER
$21.13¢10 563
1
#14
5MV-25833-00-00
BOLT, FITTING
$6.85¢3 425
1
#15
D03-26372-00-00
COVER, HANDLE LEVER 1
$24.82¢12 413
1
#16
D03-26472-00-00
HOSE, CLUTCH 1
$157.64¢78 819
1
#17
90430-10005-00
GASKET
$8.39¢4 194
1
#18
90401-10172-00
BOLT, UNION
$4.41¢2 206
1
