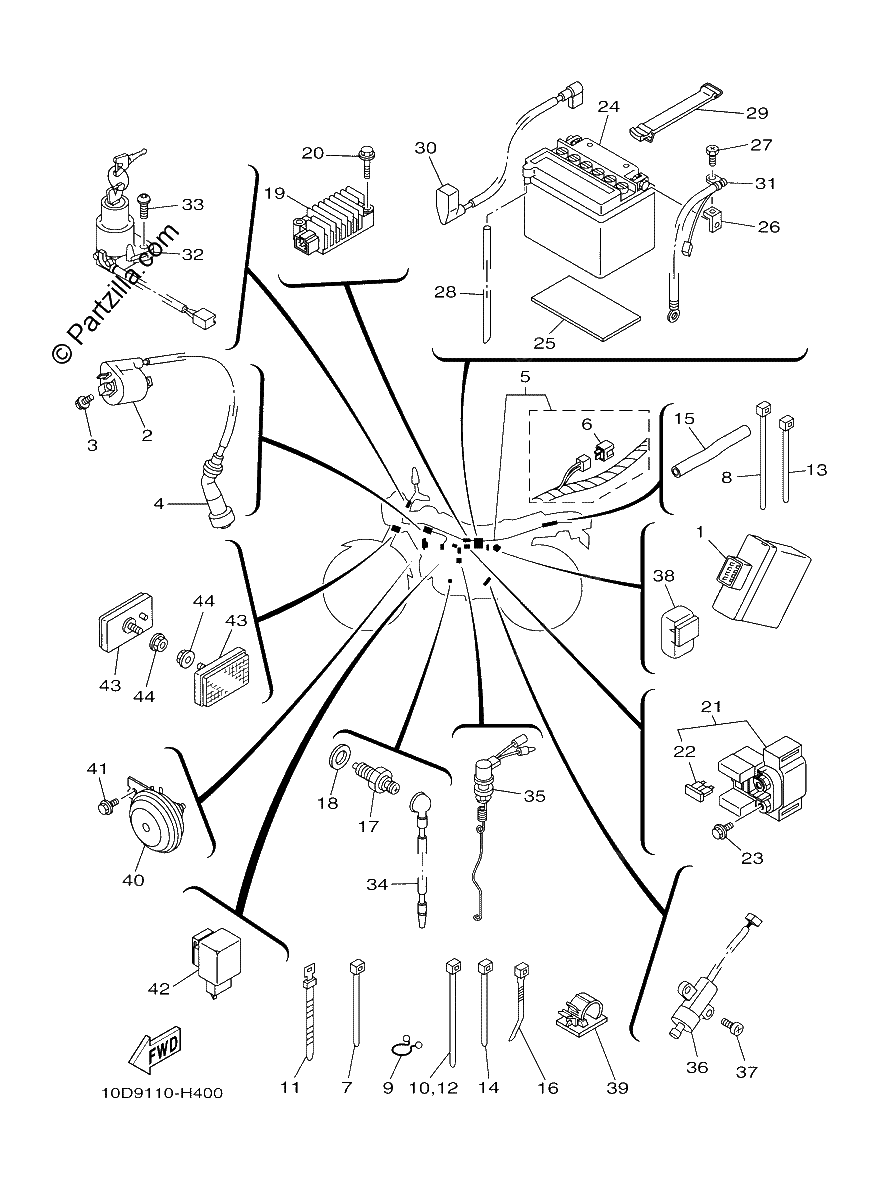

ELECTRICAL 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
C.D.I. UNIT ASSY
$180.25¢90 126
#2
IGNITION COIL ASSY
$41.47¢20 735
#3
BOLT, FLANGE
$6.88¢3 439
#4
PLUG CAP ASY
$35.58¢17 790
#5
WIRE HARNESS ASSY
$273.33¢136 666
#6
RECTIFIER 2
$20.65¢10 327
#7
CLAMP 1
$7.23¢3 617
#8
BAND
$4.52¢2 260
#9
CLAMP (replaces 341-82594-00-00)
$6.36¢3 180
#10
BAND
$4.52¢2 260
#11
CLAMP
$3.71¢1 857
#12
BAND
$4.52¢2 260
#13
CLAMP 1
$7.23¢3 617
#14
CLAMP 1
$7.23¢3 617
#15
HOSE(4CS) (replaces 90446-15377-00)
$2.16¢1 081
#16
CLAMP
$2.55¢1 277
#17
NEUTRAL SWITCH ASSY
$36.73¢18 366
#18
Gasket
$5.21¢2 605
#19
RECTIFIER/REG ASY
$165.08¢82 541
#20
BOLT,SMALL FLANGE
$3.47¢1 737
#21
STARTER RELAY ASSY
$115.10¢57 552
#22
FUSE (20A-BL) (replaces 2GH-82151-00-00)
$4.74¢2 369
#23
BOLT, FLANGE
$6.14¢3 070
#24
BATTERY ASSY (GS YUASA YB7C-A)
$184.78¢92 391
#25
SEAT, BATTERY
$7.50¢3 749
#26
TERMINAL
$11.71¢5 853
#27
SCREW, HEXAGON
$6.73¢3 364
#28
HOSE (3GG) (replaces 90445-082F3-00)
$17.99¢8 993
#29
BAND,BATTERY (replaces 18G-82131-00-00)
$17.58¢8 792
#30
WIRE, plus lead
$40.02¢20 010
#31
WIRE, MINUS LEAD
$22.40¢11 201
#32
MAIN SWITCH STEERING
$174.01¢87 003
#33
SCREW,SPEC'L SHAPE
$6.88¢3 439
#34
Wire, Lead
$15.19¢7 596
#35
STOP SWITCH ASSY
$24.05¢12 023
#36
SWITCH, SIDE STAND
$54.68¢27 341
#37
SCREW, PAN HEAD
$1.54¢771
#38
RELAY ASSY
$76.36¢38 180
#39
Clamp
$5.92¢2 961
#40
HORN
$47.02¢23 512
#41
BOLT, FLANGE (replaces 95827-06012-00)
$1.64¢822
#42
FLASHER RELAY ASSY
$51.50¢25 749
#43
FRT.REFLECTOR ASSY (replaces 20G-85110-00-00)
$23.60¢11 799
#44
NUT, FLANGE
$6.76¢3 381
