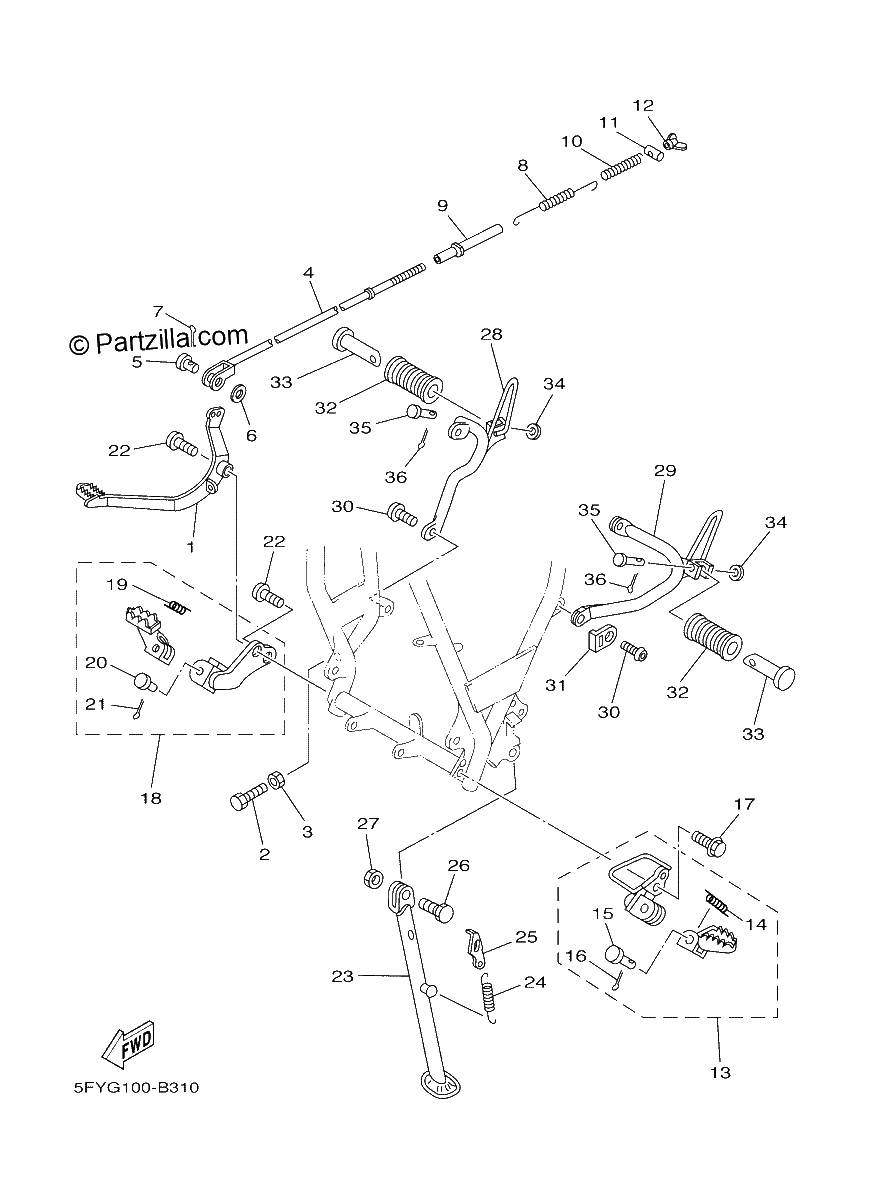

STAND FOOTREST
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
PEDAL, BRAKE | ZK FOR PMIB
$68.06¢34 028
#2
BOLT, HEXAGON (replaces 97027-06020-00)
$2.78¢1 392
#3
NUT(JN5)
$7.31¢3 657
#4
ROD, BRAKE
$23.67¢11 833
#5
PIN, CLEVIS
$6.75¢3 375
#6
WASHER
$6.76¢3 381
#7
PIN. COTTER
$2.02¢1 012
#8
SPRING, TENSION
$13.19¢6 595
#9
COVER
$6.51¢3 254
#10
SPRING, COMPRESSION
$6.75¢3 375
#11
PIN
$6.75¢3 375
#12
NUT, WING
$4.48¢2 242
#13
FRONT FOOTREST ASSY (LEFT) | ZK FOR PMIB
$80.04¢40 020
#14
SPRING, TORSION
$3.58¢1 788
#15
PIN
$4.28¢2 139
#16
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
#17
BOLT, FLANGE
$6.87¢3 433
#18
FRONT FOOTREST ASSY (RIGHT) | ZK FOR PMIB
$92.94¢46 471
#19
SPRING, TORSION
$3.58¢1 788
#20
PIN
$4.28¢2 139
#21
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
#22
BOLT,HEX. SOCKET BUT
$3.76¢1 880
#23
STAND, SIDE
$129.13¢64 567
#24
SPRING,TENSION
$11.33¢5 664
#25
LINK, SIDE STAND
$9.42¢4 709
#26
BOLT
$7.35¢3 674
#27
NUT,SELF-LOCKING
$7.30¢3 651
#28
BRACKET 2
$84.39¢42 193
#29
BRACKET 1
$98.03¢49 013
#30
BOLT, BUTTON HEAD
$5.16¢2 582
#31
WASHER, SPECIAL
$37.93¢18 963
#32
COVER, REAR FOOTREST
$8.26¢4 129
#33
FOOTREST, REAR 1
$30.87¢15 433
#34
WASHER, PLATE
$7.58¢3 789
#35
PIN
$7.51¢3 755
#36
PIN. COTTER
$2.02¢1 012
