CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

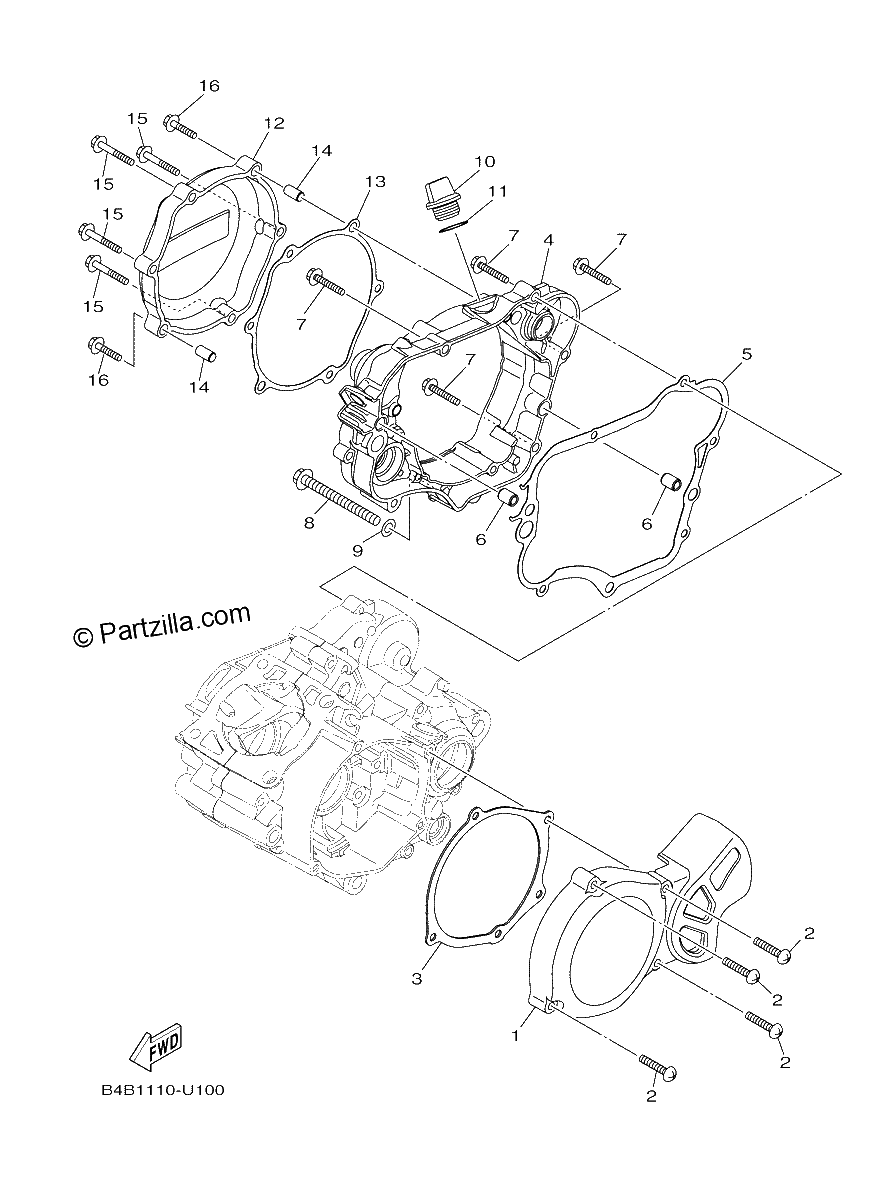

Diagrama de CRANKCASE COVER

Repuestos

#1
4ES-15411-02-00
COVER, CRANKCASE 1
$15.43¢7 713
1
#2
98502-06030-00
SCREW, PAN HEAD
$1.47¢737
1
#3
5PA-15451-00-00
GASKET, CRANKCASE COVER 1
$26.06¢13 031
1
#4
BR8-15431-00-00
COVER, CRANKCASE 3
$157.73¢78 863
1
#5
BR8-15461-00-00
GASKET, CRANKCASE COVER 2
$14.35¢7 175
1
#6
99530-10114-00
PIN,DOWEL
$2.71¢1 356
1
#7
95E32-06030-00
BOLT, FLANGE DEEP RECESS
$0.85¢425
1
#8
95E32-08080-00
BOLT, FLANGE DEEP RECESS
$3.01¢1 506
1
#9
90430-08119-00
GASKET
$6.91¢3 456
1
#10
3Y1-15363-10-00
PLUG, OIL
$20.35¢10 175
1
#11
93210-19123-00
O-Ring
$8.24¢4 119
1
#12
5PA-15415-11-00
COVER, 1
$74.35¢37 175
1
#13
5PA-15463-00-00
GASKET, 2
$13.27¢6 637
1
#14
91808-16023-00
PIN, DOWEL
$6.71¢3 356
1
#15
95E32-06025-00
BOLT, FLANGE DEEP RECESS
$0.59¢294
1
#16
95E32-06035-00
BOLT, FLANGE DEEP RECESS
$1.02¢513
1
