INTAKE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

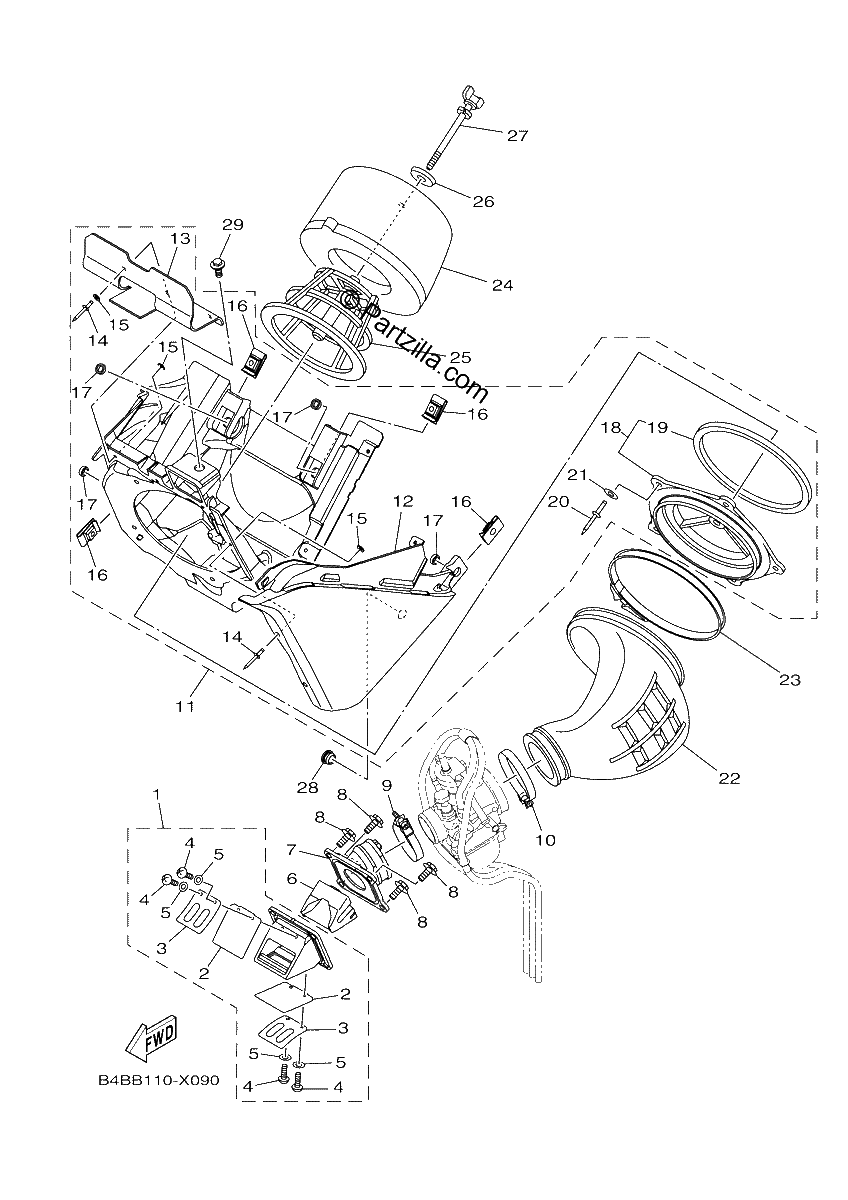

Diagrama de INTAKE

Repuestos

#1
BR8-13610-00-00
Reed Valve Assy
$110.70¢55 350
1
#2
BR8-13613-00-00
REED, VALVE
$11.36¢5 681
1
#3
4ES-13616-00-00
STOPPER, REED VALVE
$15.02¢7 512
1
#4
98580-03006-00
SCREW, PAN HEAD
$8.24¢4 119
1
#5
92990-03100-00
WASHER, SPRING
$7.34¢3 669
1
#6
BR8-13625-00-00
SPACER, REED VALVE
$16.10¢8 050
1
#7
BR8-13565-00-00
JOINT, carburetor
$55.00¢27 500
1
#8
95E32-06016-00
BOLT, FLANGE DEEP RECESS
$0.81¢406
1
#9
4TR-13474-02-00
BAND (replaces 4TR-13474-01-00)
$11.35¢5 675
1
#10
90450-56001-00
HOSE CLAMP ASSY
$17.59¢8 794
1
#11
B4B-14401-00-00
AIR CLEANER CASE ASSY
$204.22¢102 113
1
#12
B4B-14417-00-00
COVER 1
$30.07¢15 038
1
#13
B4B-1449E-00-00
COVER, AIR CLEANER
$30.99¢15 494
1
#14
90267-32196-00
Rivet, Blind
$1.06¢531
1
#15
90201-03313-00
WASHER, PLATE
$7.63¢3 813
1
#16
90183-060A7-00
NUT, SPRING
$7.72¢3 863
1
#17
90387-06069-00
COLLAR
$7.91¢3 956
1
#18
5PA-14459-00-00
HOLDER, GUIDE
$43.46¢21 731
1
#19
4ES-14462-00-00
SEAL
$13.31¢6 656
1
#20
90267-48138-00
RIVET, BLIND
$3.11¢1 556
1
#21
90201-043H7-00
WASHER, PLATE
$3.04¢1 519
1
#22
5PA-14453-01-00
JOINT, AIR CLEANER 1
$153.93¢76 963
1
#23
90450-99014-00
HOSE CLAMP ASSY
$17.49¢8 744
1
#24
5PA-14451-02-00
ELEMENT, AIR CLEANER
$40.65¢20 325
1
#25
5PA-14458-00-00
GUIDE
$31.32¢15 663
1
#26
90209-06096-00
WASHER
$7.81¢3 906
1
#27
90122-06010-00
BOLT, WING
$10.91¢5 456
1
#28
90480-10M28-00
GROMMET
$3.57¢1 787
1
#29
90109-06245-00
BOLT
$5.65¢2 825
1
