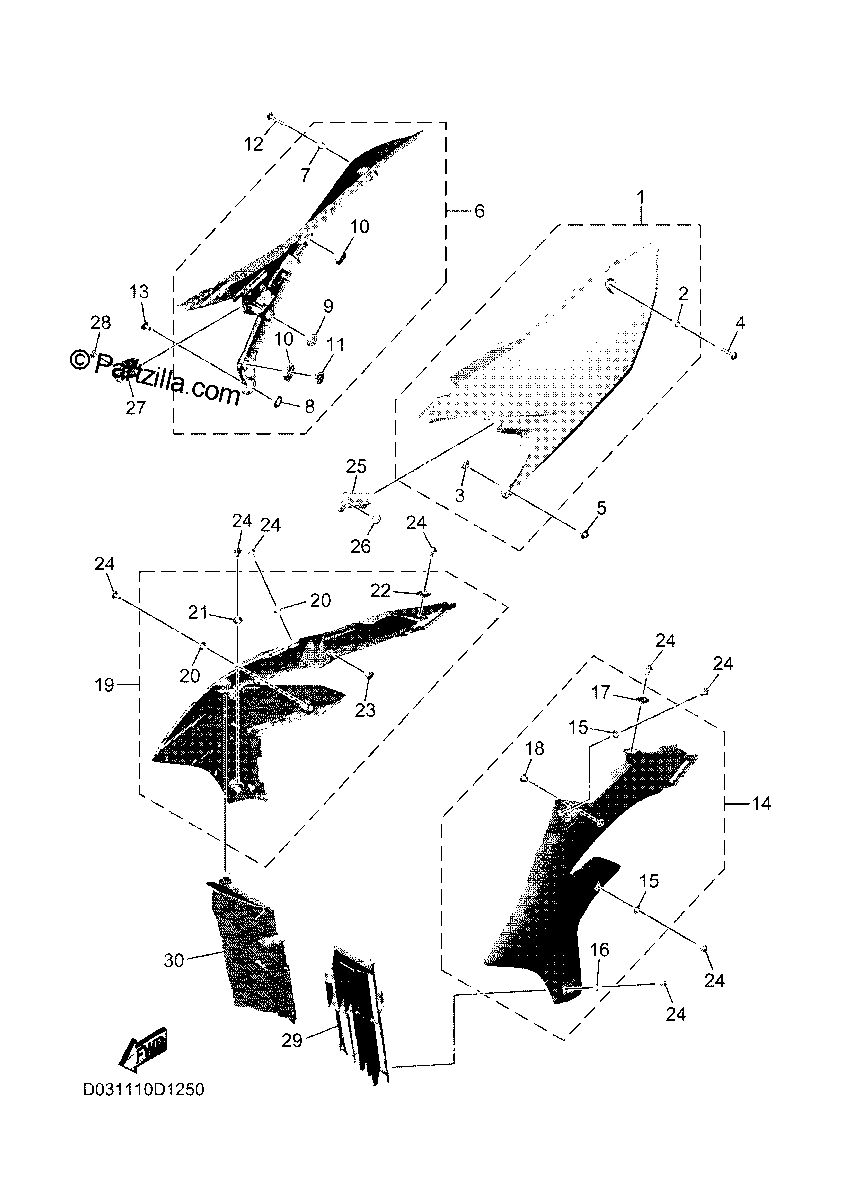

SIDE COVER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
SIDE COVER INSERT ASSY 1
$187.49¢93 744
#1
SIDE COVER ASSY 1 (WO/GRAPHIC)
$41.11¢20 556
#2
Collar
$8.38¢4 188
#3
COLLAR
$10.41¢5 206
#4
Bolt, Flange
$4.68¢2 338
#5
BOLT,WITH WASHER
$6.25¢3 125
#6
SIDE COVER ASSY 2 (WO/GRAPHIC)
$41.11¢20 556
#6
SIDE COVER INSERT ASSY 2
$187.49¢93 744
#7
Collar
$8.38¢4 188
#8
COLLAR
$10.41¢5 206
#9
GROMMET
$22.31¢11 156
#10
Grommet
$33.86¢16 931
#11
DAMPER
$19.59¢9 794
#12
Bolt, Flange
$4.68¢2 338
#13
BOLT,WITH WASHER
$6.25¢3 125
#14
SIDE COVER ASSY 3 (WO/GRAPHIC)
$41.11¢20 556
#14
SIDE COVER INSERT ASSY. 3
$189.22¢94 613
#15
COLLAR
$7.13¢3 563
#16
Collar
$6.45¢3 225
#17
Collar
$11.29¢5 644
#18
GROMMET (replaces 90480-08608-00)
$8.06¢4 031
#19
SIDE COVER ASSY 4 (WO/GRAPHIC)
$41.11¢20 556
#19
SIDE COVER INSERT ASSY. 4
$198.38¢99 188
#20
COLLAR
$7.13¢3 563
#21
Collar
$6.45¢3 225
#22
Collar
$11.29¢5 644
#23
GROMMET (replaces 90480-08608-00)
$8.06¢4 031
#24
Bolt, Flange
$3.17¢1 588
#25
COVER, SIDE 5
$15.74¢7 869
#26
BOLT, HEXAGON SOCKET BUTTON
$4.45¢2 225
#27
COVER, SIDE 6
$15.74¢7 869
#28
BOLT, HEXAGON SOCKET BUTTON
$4.45¢2 225
#29
PANEL 1
$21.84¢10 919
#30
PANEL 2
$21.84¢10 919
