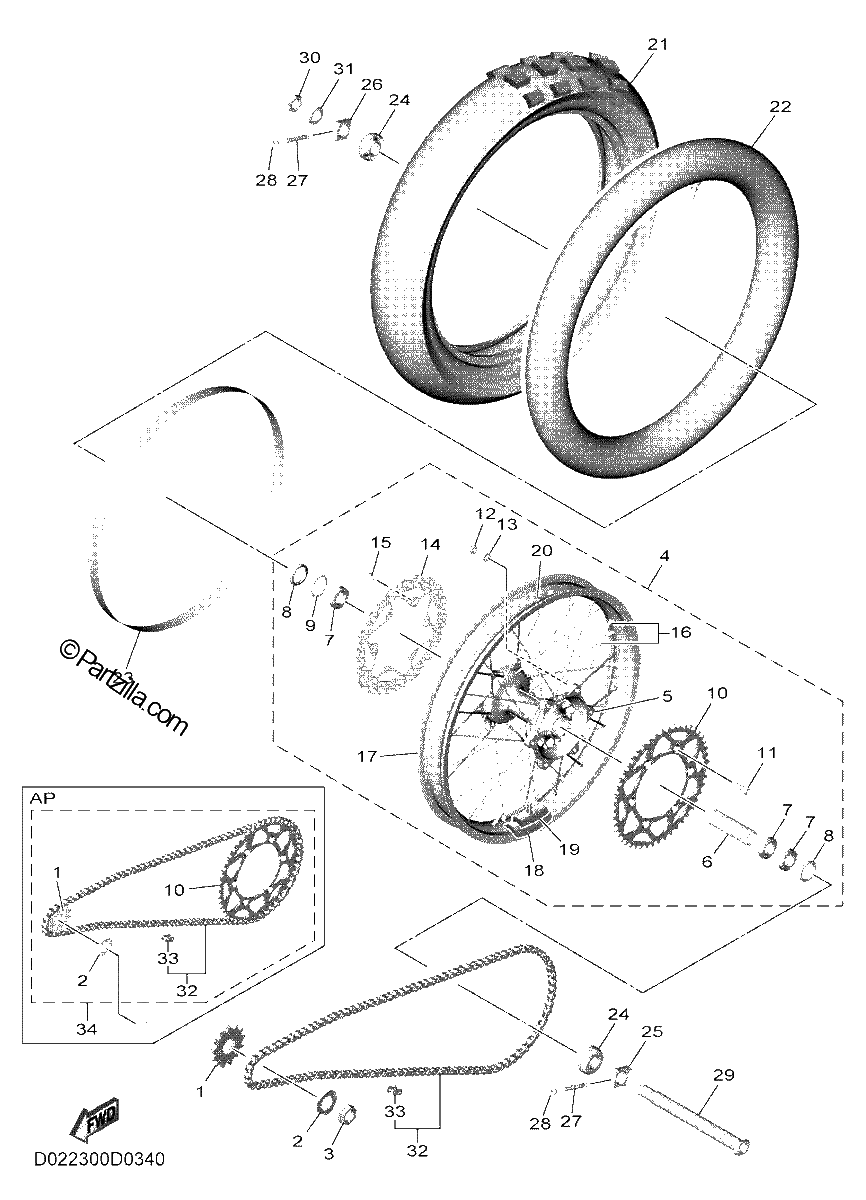

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
SPROCKET, DRIVE (13T)
$21.75¢10 873
#2
Washer, Lock
$5.90¢2 950
#3
NUT
$15.62¢7 809
#4
REAR WHEEL SUB-ASSY
$586.49¢293 244
#5
HUB, REAR
$244.69¢122 343
#6
SPACER, bearing
$42.62¢21 310
#7
BEARING
$23.48¢11 742
#8
OIL SEAL,SD-TYPE (replaces 93102-32337-00)
$17.88¢8 941
#9
Circlip
$6.83¢3 415
#10
SPROCKET, DRIVEN (52T)
$103.49¢51 744
#10
SPROCKET, DRIVEN (49T)
$93.14¢46 569
#10
SPROCKET, DRIVEN (50T)
$51.22¢25 611
#10
SPROCKET, DRIVEN (51T)
$90.84¢45 419
#10
SPROCKET, DRIVEN (47T)
$78.29¢39 146
#10
SPROCKET, DRIVEN (48T)
$99.91¢49 956
#11
bolt
$3.12¢1 558
#12
NUT, SELF-LOCKING
$6.59¢3 295
#13
WASHER, plate
$6.32¢3 162
#14
DISK, REAR BRAKE 2
$127.89¢63 946
#15
SCREW, COUNTERSUNK
$2.92¢1 461
#16
SPOKE SET, REAR
$181.80¢90 902
#17
RIM (215-19)
$302.29¢151 145
#18
SPACER,BEAD
$36.54¢18 268
#19
Damper
$7.28¢3 640
#20
GROMMET (replaces 90480-08608-00)
$7.42¢3 709
#21
Tire
$241.49¢120 744
#22
TUBE 110/90-19
$56.55¢28 273
#23
BAND,RIM 110/90-19
$16.09¢8 044
#24
COLLAR ASSY
$37.85¢18 923
#25
PULLER, CHAIN 1
$32.05¢16 025
#26
PULLER, CHAIN 2
$29.96¢14 979
#27
bolt
$7.37¢3 686
#28
Nut
$5.73¢2 864
#29
AXLE, WHEEL
$84.97¢42 487
#30
NUT, SELF-LOCKING
$29.72¢14 858
#31
WASHER, plate
$6.46¢3 231
#32
CHAIN(DID520DMS SDH G&B L114)
$155.32¢77 660
#33
JOINT, CHAIN(DID520DMS G RJ)
$5.40¢2 702
#34
CHAIN & SPROCKET KIT
$322.44¢161 218
