CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

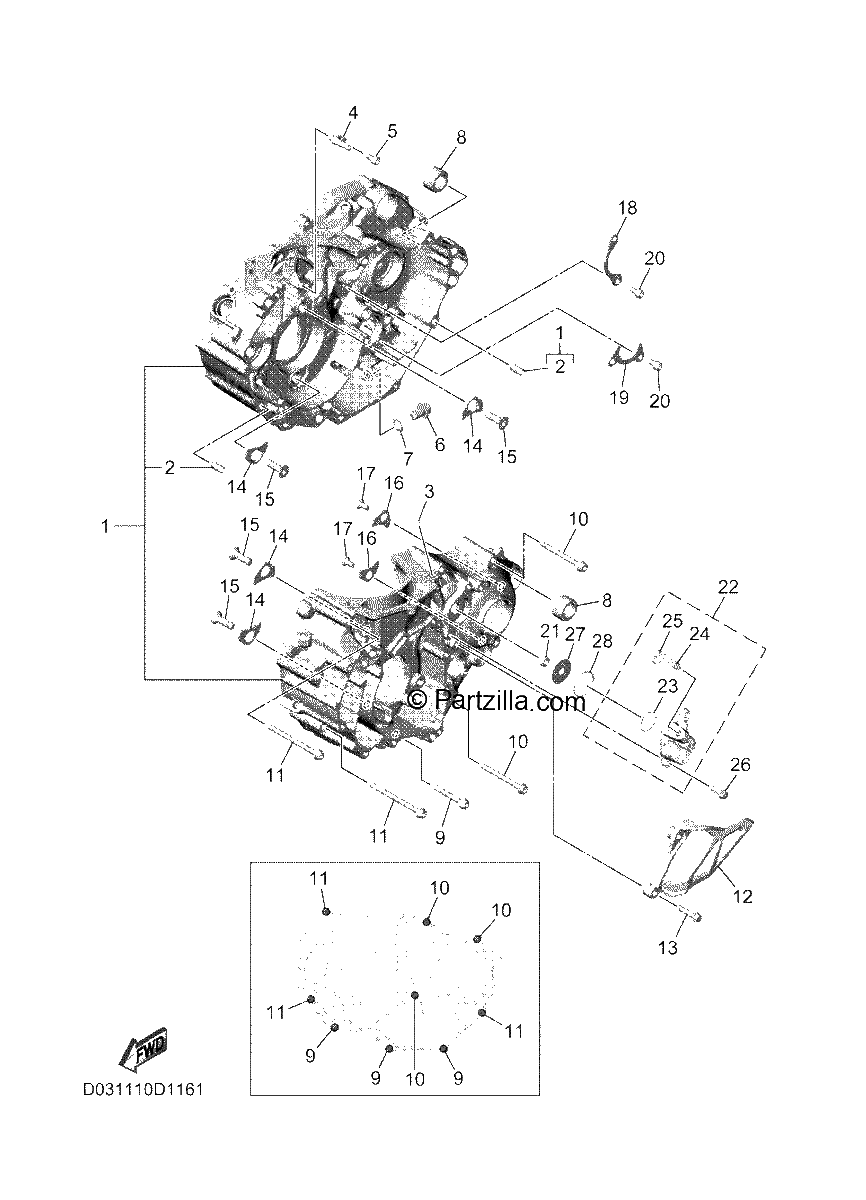

Diagrama de CRANKCASE

Repuestos

#1
D03-15100-09-00
CRANKCASE ASSY
$2001.24¢1 000 619
1
#2
91808-16023-00
PIN, DOWEL
$6.71¢3 356
1
#3
BHR-15148-00-00
NOZZLE 2
$8.11¢4 056
1
#4
D03-15155-00-00
NOZZLE 3
$32.20¢16 100
1
#5
91317-06012-00
BOLT
$7.34¢3 669
1
#6
95E32-10016-00
BOLT, FLANGE DEEP RECESS
$1.57¢788
1
#7
90430-10188-00
Gasket
$7.36¢3 681
1
#8
90387-17020-00
COLLAR
$19.85¢9 925
1
#9
90110-06391-00
BOLT, HEXAGON SOCKET HEAD
$2.11¢1 056
1
#10
90110-06363-00
BOLT, HEXAGON SOCKET HEAD
$2.99¢1 494
1
#11
90110-06392-00
BOLT, HEXAGON SOCKET HEAD
$3.74¢1 869
1
#12
BHR-15421-01-00
COVER, CRANKCASE 2
$26.35¢13 175
1
#13
90105-06189-00
Bolt, Flange
$7.34¢3 669
1
#14
18P-15383-00-00
PLATE, BEARING COVER
$8.03¢4 013
1
#15
90151-08003-00
SCREW, COUNTERSUNK
$6.60¢3 300
1
#16
4JT-15381-01-00
PLATE, BEARING COV
$12.54¢6 269
1
#17
90151-06052-00
SCREW, COUNTERSUNK (replaces 90149-06074-00)
$7.60¢3 800
1
#18
D03-15388-00-00
PLATE, BEARING COVER
$5.69¢2 844
1
#19
33D-18562-00-00
PLATE, STOPPER 2
$4.94¢2 469
1
#20
91317-06012-00
BOLT
$7.34¢3 669
1
#21
93104-06033-00
OIL SEAL
$7.08¢3 538
1
#22
D03-16381-00-00
PUSH LEVER COMP
$223.05¢111 525
1
#23
D03-1638L-00-00
O-RING
$7.99¢3 994
1
#24
36Y-W0048-00-00
BLEED SCREW KIT
$10.14¢5 069
1
#25
36Y-W0048-00-00
BLEED SCREW KIT
$10.14¢5 069
1
#26
95022-06016-00
BOLT, FLANGE
$3.96¢1 981
1
#27
90201-08125-00
WASHER, PLATE
$5.45¢2 725
1
#28
93210-29282-00
O-RING
$7.34¢3 669
1
