CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

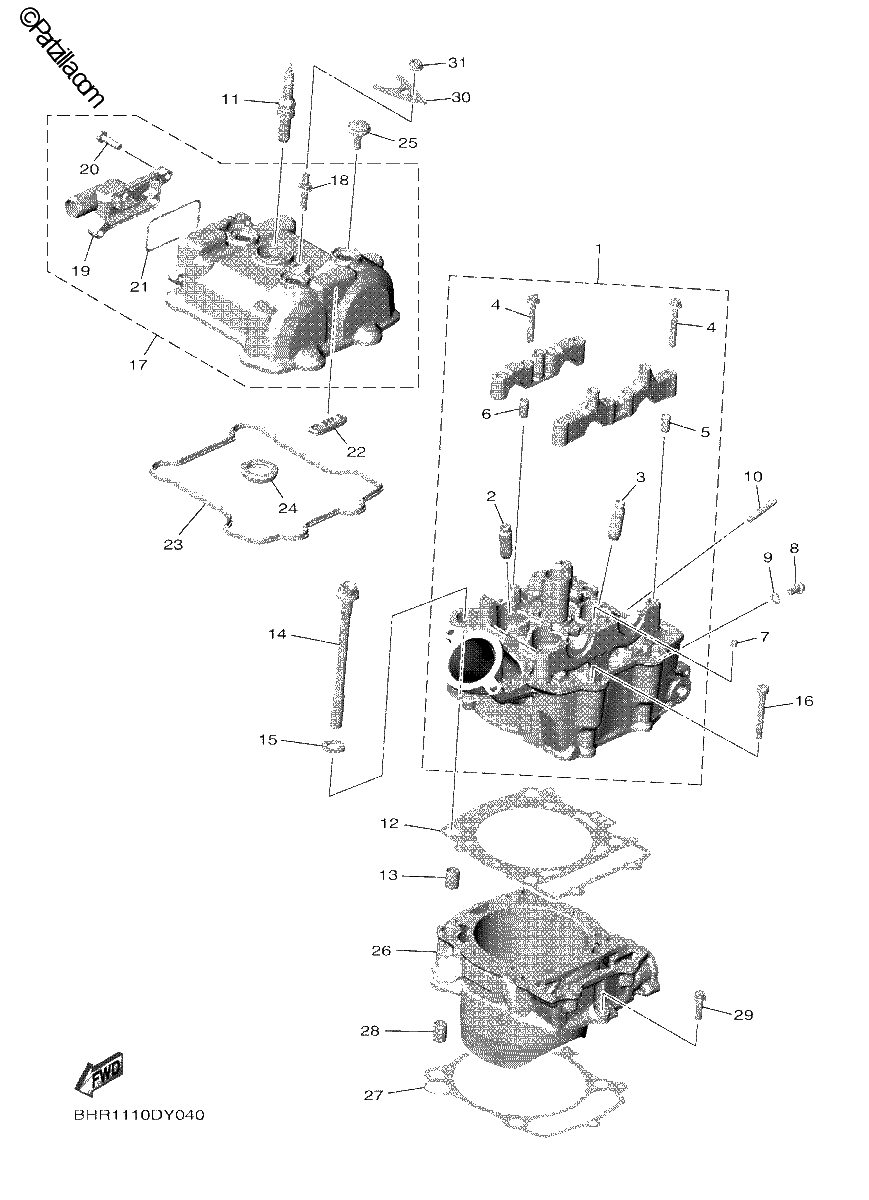

Diagrama de CYLINDER

Repuestos

#1
D03-11102-00-00
CYLINDER HEAD ASSY
$1603.10¢801 550
1
#2
B2W-11133-10-00
GUIDE, VALVE 1
$88.45¢44 223
1
#3
5PS-11134-10-00
GUIDE, VALVE 2
$73.94¢36 973
1
#4
90105-06027-00
BOLT, FLANGE
$7.06¢3 530
1
#5
91808-16023-00
PIN, DOWEL
$6.18¢3 088
1
#6
91808-16023-00
PIN, DOWEL
$6.18¢3 088
1
#7
BHR-15138-00-00
NOZZLE 1
$5.17¢2 588
1
#8
95E32-06010-00
BOLT, FLANGE DEEP RECESS
$0.84¢420
1
#9
90430-06014-00
GASKET
$7.59¢3 795
1
#10
90116-06037-00
BOLT, stud
$3.70¢1 852
1
#11
LMA-R8G00-00-00
LMAR8 NGK SPLUG 10PK (replaces 94701-00434-00)
$13.55¢6 773
1
#12
BHR-11181-00-00
GASKET, CYLINDER HEAD 1
$27.43¢13 714
1
#13
93612-16254-00
PIN,DOWEL
$4.77¢2 386
1
#14
90105-10494-00
BOLT, FLANGE
$20.50¢10 252
1
#15
90201-10025-00
WASHER, plate
$6.82¢3 410
1
#16
91312-06045-00
BOLT
$3.68¢1 840
1
#17
D03-11190-10-00
COVER, CYLINDER HEAD 1
$375.27¢187 634
1
#18
90116-06049-00
BOLT, STUD (replaces 90116-06048-00)
$5.07¢2 536
1
#19
D03-11168-00-00
COVER, BREATHER
$36.35¢18 176
1
#20
95E32-06020-00
BOLT, FLANGE DEEP RECESS
$0.89¢443
1
#21
B2W-11169-00-00
GASKET, BREATHER COVER
$8.21¢4 105
1
#22
B2W-12241-00-00
GUIDE, STOPPER 2
$9.69¢4 847
1
#23
BHR-11193-00-00
GASKET, HEAD COVER 1
$22.37¢11 184
1
#24
1SM-11194-00-00
GASKET, HEAD COVER 2
$15.65¢7 826
1
#25
5UM-1119E-00-00
BOLT, COVER HEAD
$12.02¢6 009
1
#26
BHR-11311-00-00
CYLINDER 1
$740.59¢370 294
1
#27
BHR-11351-00-00
GASKET, CYLINDER
$16.56¢8 280
1
#28
93612-16254-00
PIN,DOWEL
$4.77¢2 386
1
#29
90110-06439-00
BOLT, HEXAGON SOCKET HEAD
$3.58¢1 788
1
#30
BR9-11395-00-00
HOLDER
$4.67¢2 335
1
#31
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
