STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

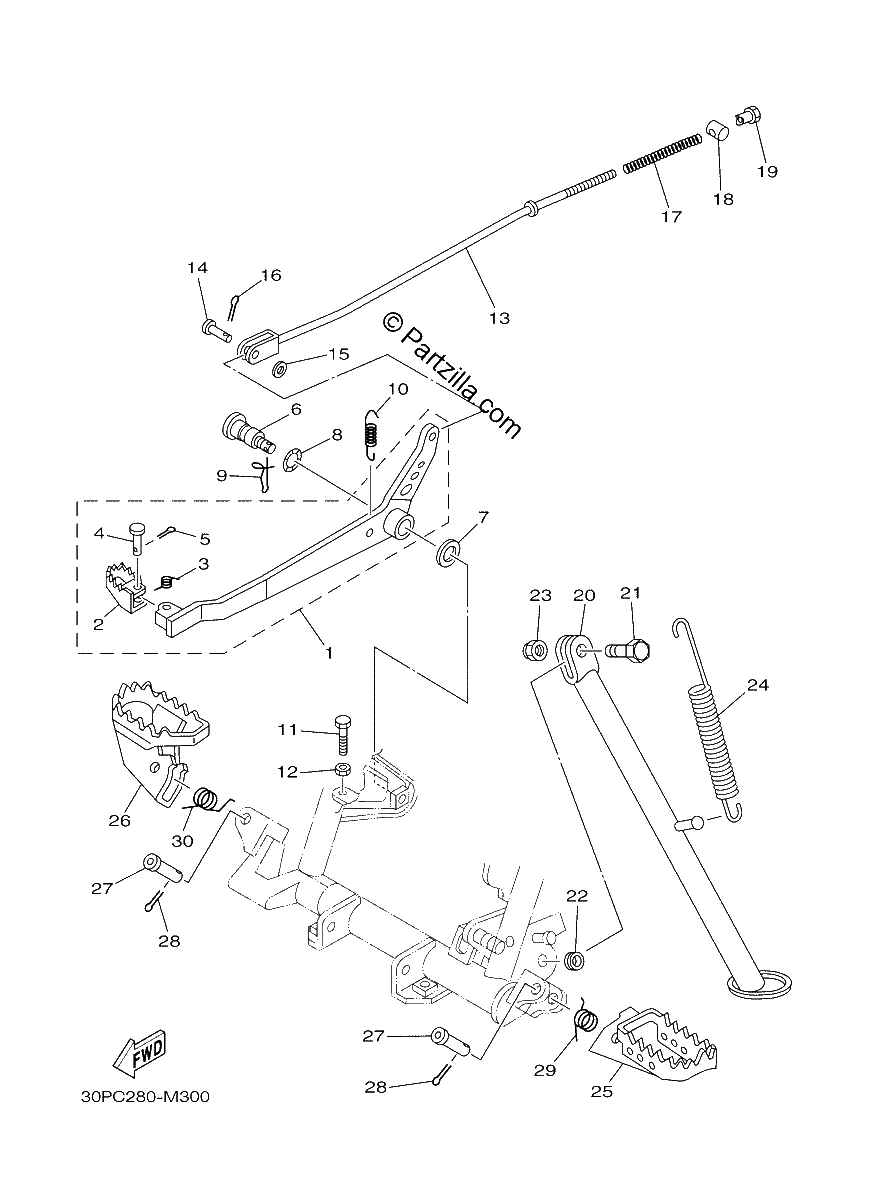

Diagrama de STAND FOOTREST

Repuestos

#1
1B2-F7200-00-00
PEDAL, BRAKE
$71.90¢35 949
1
#2
55V-27242-00-00
PEDAL, BRAKE
$22.49¢11 247
1
#3
90508-14352-00
SPRING, TORSION
$7.56¢3 778
1
#4
91701-06022-00
PIN
$1.99¢995
1
#5
91490-20015-00
PIN. COTTER
$2.02¢1 012
1
#6
2CC-F7261-00-00
SHAFT (replaces 5RM-F7261-00-00)
$11.86¢5 928
1
#7
90201-105J4-00
WASHER, PLATE
$7.52¢3 760
1
#8
90206-14001-00
WASHER, WAVE
$8.06¢4 031
1
#9
90468-20196-00
Clip
$0.59¢293
1
#10
90506-16372-00
SPRING,TENSION
$8.21¢4 105
1
#11
97017-06016-00
BOLT
$6.76¢3 381
1
#12
95317-06700-00
NUT(JN5)
$7.31¢3 657
1
#13
1B2-F7231-10-00
Rod, Brake
$7.95¢3 973
1
#14
90240-06804-00
Pin, Clevis
$0.40¢201
1
#15
92990-06200-00
WASHER, PLAIN
$0.89¢443
1
#16
91490-20015-00
PIN. COTTER
$2.02¢1 012
1
#17
90501-10245-00
SPRING, COMPRESSION
$6.75¢3 375
1
#18
90249-12008-00
PIN
$6.75¢3 375
1
#19
90179-06W21-00
Nut
$1.54¢771
1
#20
1B2-F7311-10-00
STAND, SIDE
$47.95¢23 978
1
#21
90101-10003-00
bolt
$7.51¢3 755
1
#22
90387-10003-00
Collar
$23.36¢11 678
1
#23
90185-10037-00
NUT,SELF-LOCKING
$7.30¢3 651
1
#24
90506-35809-00
Spring, Tension
$8.72¢4 358
1
#25
1B2-F7411-00-00
FOOTREST 1
$33.61¢16 807
1
#26
1B2-F7421-00-00
FOOTREST 2
$33.61¢16 807
1
#27
90240-10117-00
PIN,CLEVIS
$12.55¢6 273
1
#28
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#29
90508-28777-00
SPRING,TORSION
$6.22¢3 111
1
#30
90508-284A7-00
Spring, Torsion
$5.96¢2 978
1
