FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

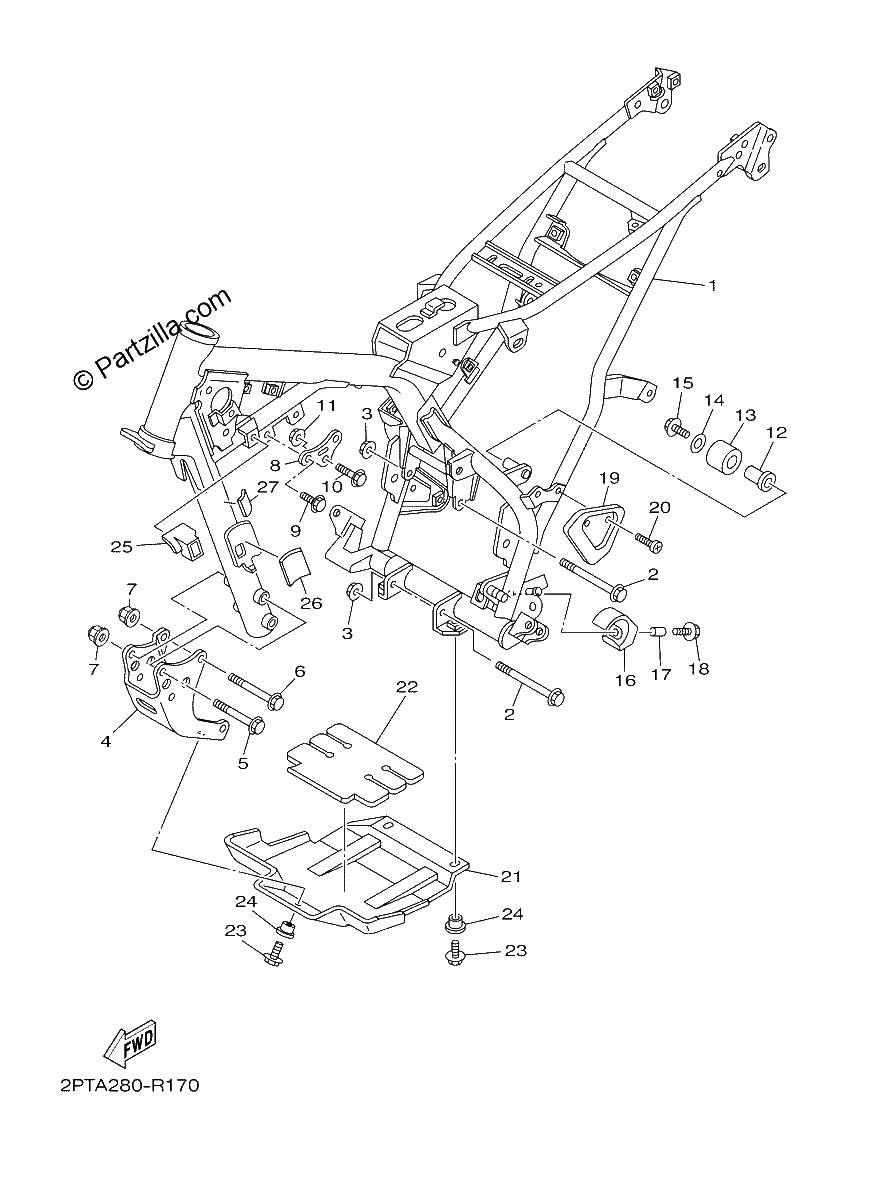

Diagrama de FRAME

Repuestos

#1
1B2-F1110-80-00
FRAME COMP.
$1031.54¢515 769
1
#2
90105-08007-00
BOLT, WASHER BASED
$4.77¢2 386
1
#3
90185-08169-00
NUT, SELF-LOCKING
$7.77¢3 887
1
#4
1B2-F1316-10-00
STAY, ENGINE 3
$167.70¢83 852
1
#5
90105-08852-00
Bolt, Flange
$4.46¢2 231
1
#6
90105-08011-00
BOLT, WASHER BASED
$4.93¢2 467
1
#7
90185-08169-00
NUT, SELF-LOCKING
$7.77¢3 887
1
#8
1B2-F1315-00-00
STAY, ENGINE 2
$26.24¢13 122
1
#9
90105-082A0-00
BOLT, WASHER BASED (replaces 90105-08846-00)
$3.44¢1 719
1
#10
90105-08002-00
BOLT, WASHER BASED
$2.32¢1 162
1
#11
90185-08169-00
NUT, SELF-LOCKING
$7.77¢3 887
1
#12
5RM-F2184-00-00
Bush
$1.60¢799
1
#13
5RM-F2178-00-00
TENSIONER
$8.57¢4 284
1
#14
90201-081R9-00
WASHER, PLATE 8AT (replaces 90201-08753-00)
$6.92¢3 461
1
#15
95027-08012-00
BOLT, SMALL FLANGE (replaces 9502M-08012-00)
$7.56¢3 778
1
#16
99999-04397-00
TENSIONER (replaces 1B2-F2178-00-00)
$18.78¢9 390
1
#17
90387-067K6-00
Collar
$8.14¢4 071
1
#18
90119-06118-00
BOLT, WITH WASHER
$6.75¢3 375
1
#19
1B2-F117F-00-00
Cover
$38.05¢19 027
1
#20
98980-06010-00
SCREW,BIND (replaces 98902-06010-00)
$6.43¢3 214
1
#21
1B2-F1471-00-00
Protector, Engine
$16.95¢8 476
1
#22
5HP-21485-00-00
DAMPER, RUBBER 1 (replaces 1B2-F1485-00-00)
$35.02¢17 509
1
#23
95817-06016-00
BOLT, FLANGE
$1.64¢822
1
#24
90387-06681-00
COLLAR
$7.24¢3 622
1
#25
1B2-F117R-00-00
COVER 4
$1.32¢661
1
#26
1B2-F4849-00-00
DAMPER, 2
$0.23¢115
1
#27
5HN-2139X-00-00
DAMPER
$1.28¢638
1
